Part I Service Scenarios
Installation 15
2. When placing the main unit on another object for transportation, fix the main unit onto the object
using foam or other materials for protection against collision, and ensure a steady trip.
1.2.3 Installation of Whole Machine
1.2.3.1 Connecting the Power Cable
Insert the connector of the power adapter to the adapter port in the system. Use a three-wire power cable
to connect the adapter to an external power supply.
1.2.3.2 Connecting the ECG Cable

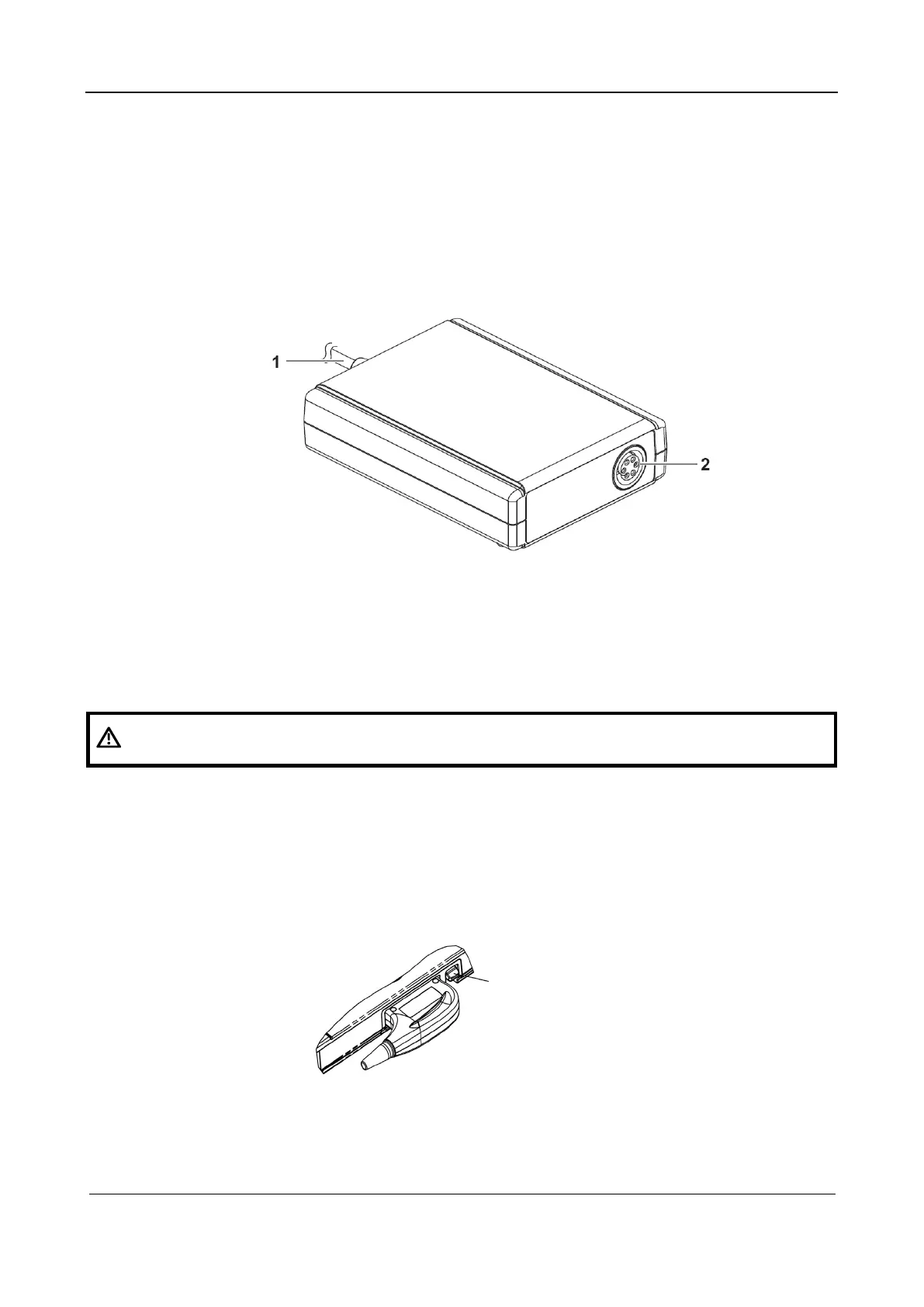

1. Connect the USB cable (shown in Figure 1) of the ECG module to the USB port on the ultrasound
equipment during power-off.
2. Connect the ECG cable to the lead port (shown in Figure 2) of the ECG module.
1.2.3.3 Connecting a Probe
WARNING:
The probes, cables and connectors should be in proper operating order and free
from surface defects, cracks and peeling. Otherwise, electrical shock may result.
1. Keep the cable end of the probe to the right side of the system, and insert the connector into the
port of the system, and then press in fully. See the figure below.
2. Toggle the locking lever to the top position.
3. Place the probe properly to avoid being treaded or wrapping with other devices. DO NOT allow
the probe head to hang free.
Locking pole
