Mindray MX8 Service Manual

Part II General Information
Structure and Assembly/Disassembly 188

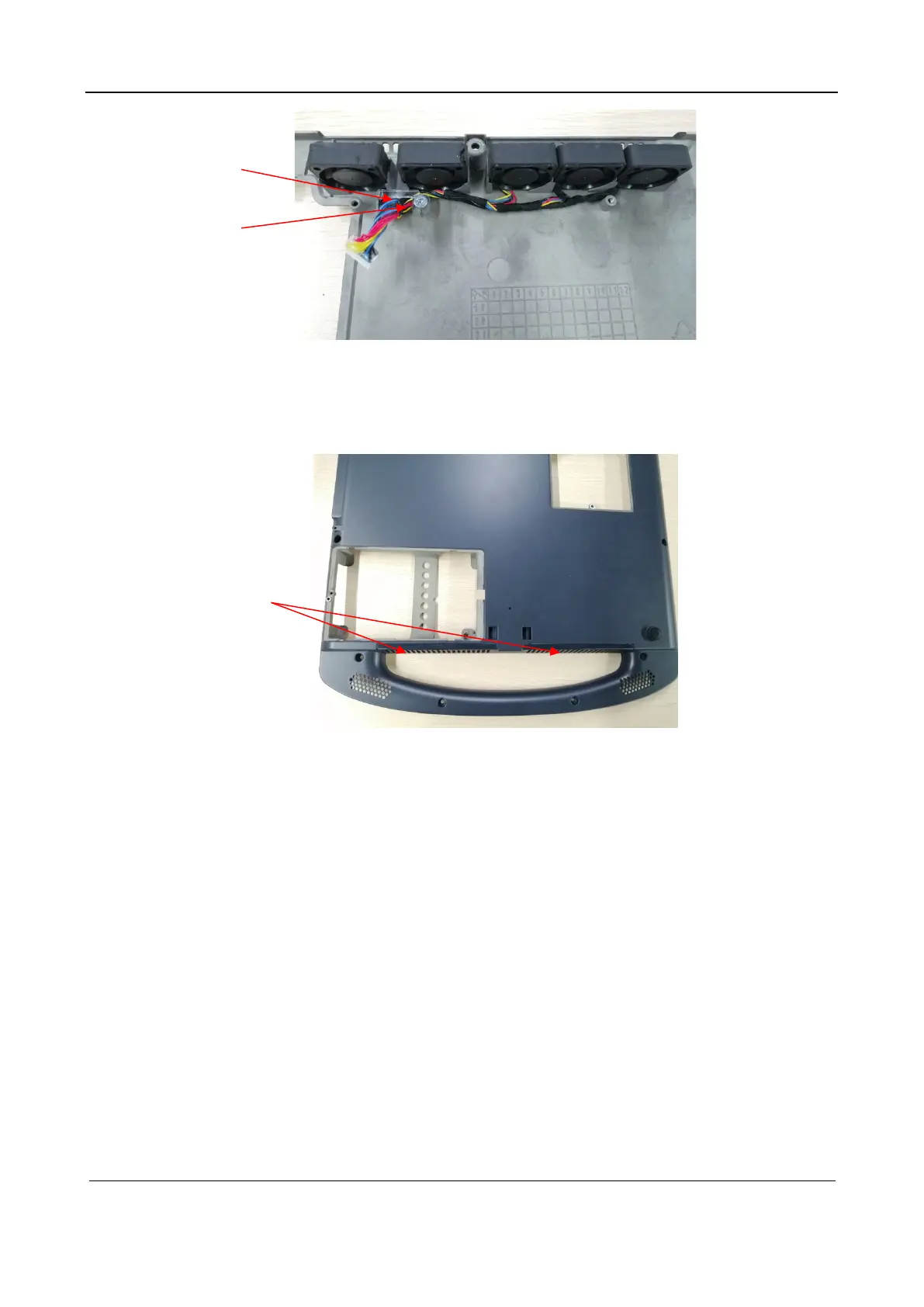

b. Pull out the five fans upwards vertically one by one.
5.2.6 Dust Filter
Remove the two dust filters with a flathead screwdriver.
5.2.7 Control Panel (Non POC model)
1. Remove the control panel. Refer to step 3 to 4 in 5.2.4.
2. Control panel cable
Remove the FPC flat cable between the main board and the control panel upwards vertically from
the interface on the control panel.
Cable crimp
M3X5 cross recessed
flathead screw
Dust filter
