Part II General Information

Structure and Assembly/Disassembly 191

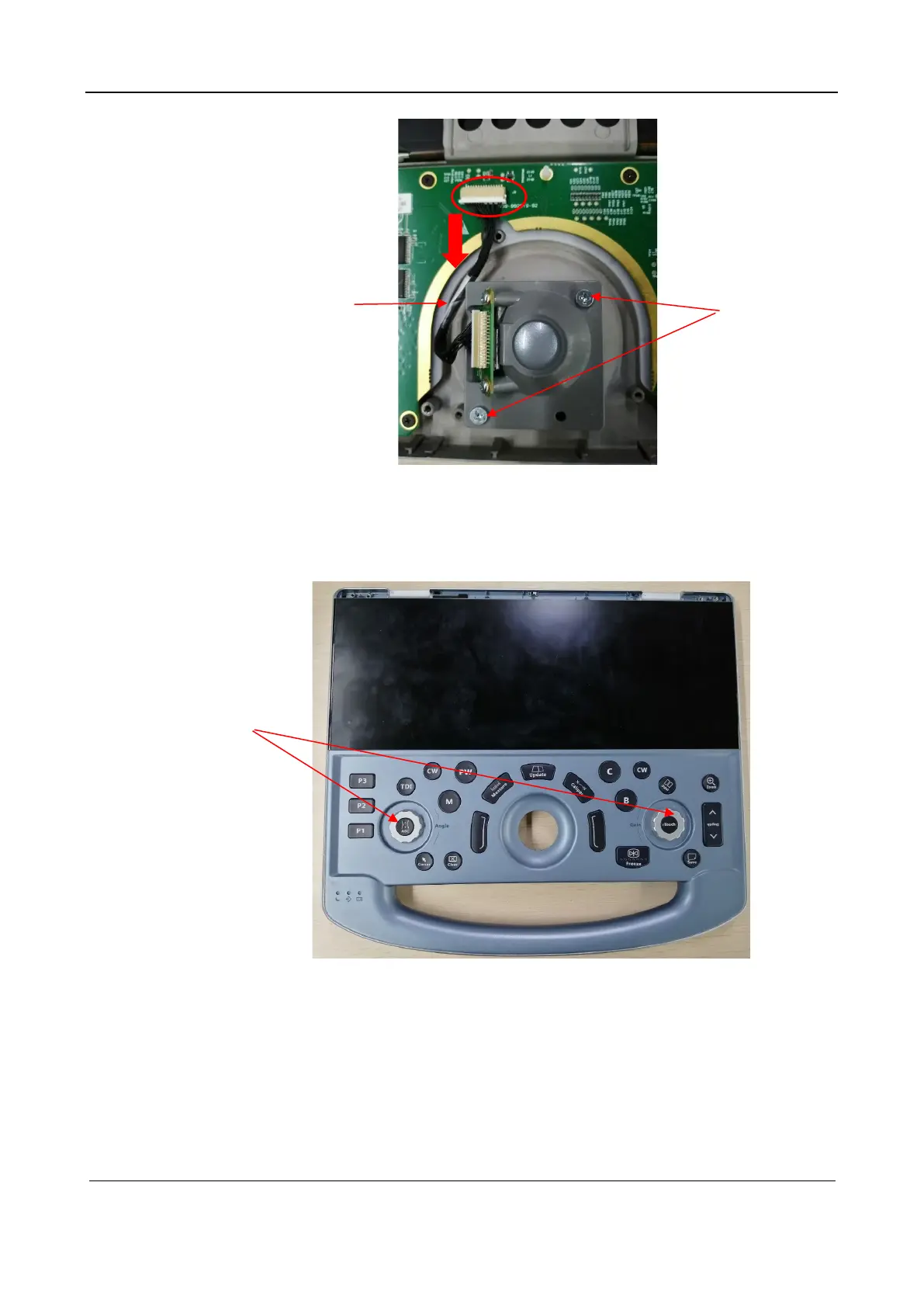

6. Rotary encoder button

Pull out the two rotary encoder buttons.

7. Control panel PCBA

Use a screwdriver to remove the 14 M2.5X4 plus flat-head screws and take off the control panel

PCBA.

Trackball cable

M3X5 cross recessed

flathead screw

Rotary encoder button
