Part II General Information

Structure and Assembly/Disassembly 197

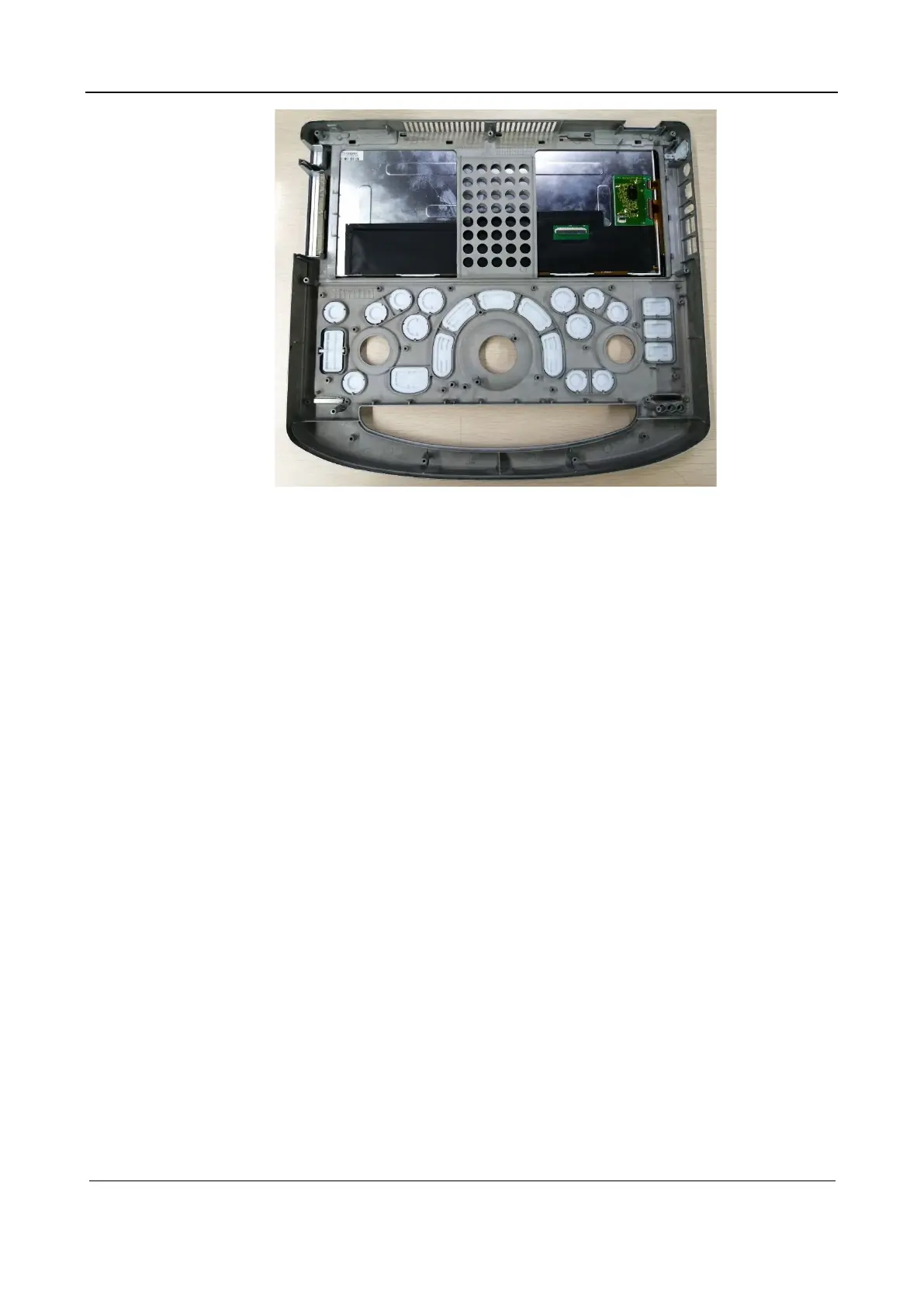

10. POC control panel upper cover

Use a screwdriver to remove the 6 M3X5 plus flat-head screws and take off the POC control panel

upper cover from the bottom side.
