Trio™ Service Manual 0070-10-0591-01 2 - 9
Calibration/Maintenance Calibration and System Checks
Error Log: This menu will display any system errors which may have occurred during
normal operation of unit. SCROLL or PRINT this information by selecting
the respective tiles

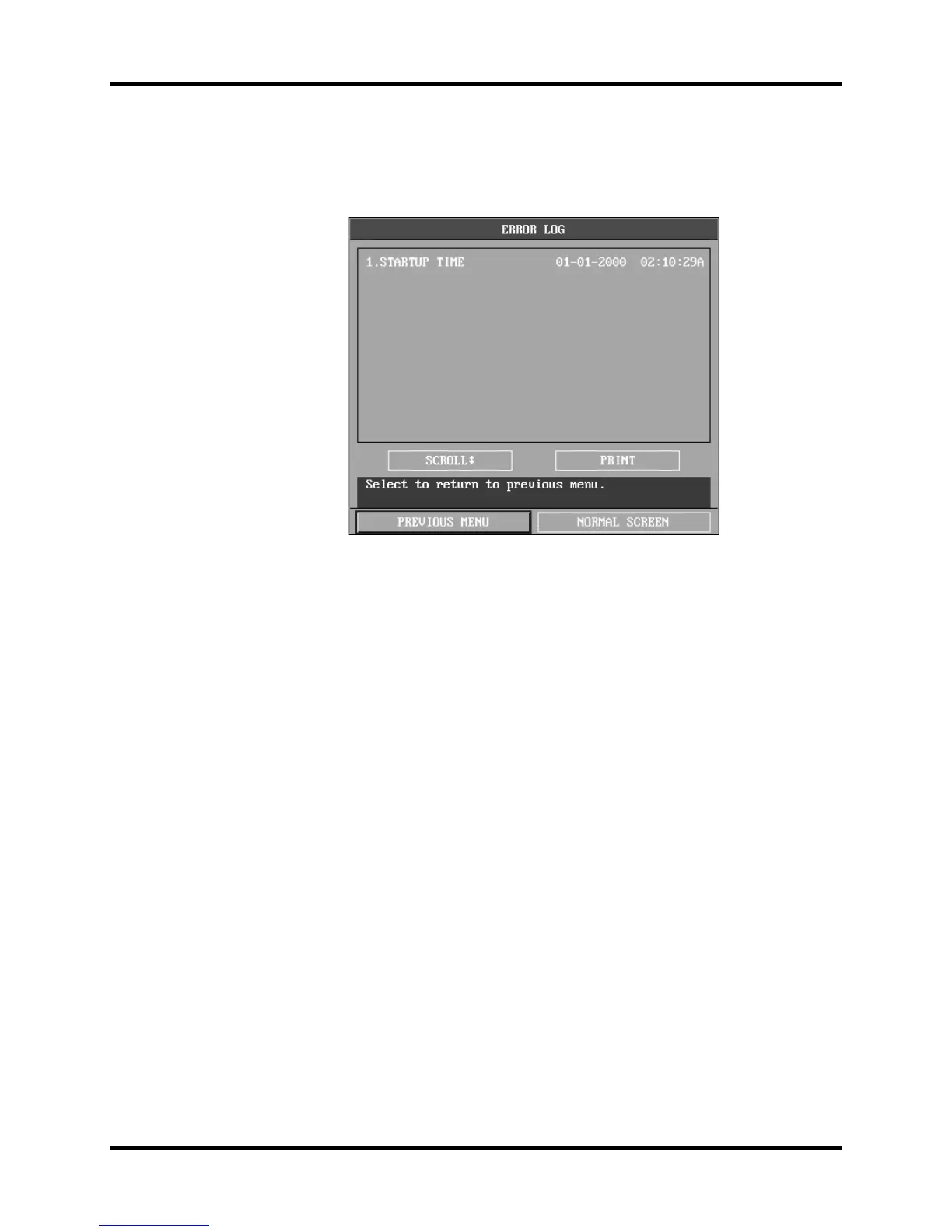

FIGURE 2-9 Error Log Menu*
Factory: This menu allows the unit to be preconfigured at the factory. This menu is
enabled with an access code, 762718, and should only be accessed as
necessary by Customer Service Personnel or by trained Bio-medical
technicians after replacing defective modules as a result of unit repair.
The Factory menu allows for configuration of:
Serial Port: This menu allows the user to configure the DIAP baud rate of the serial
output port. The choices are 9600 bps or 19200 bps.
• Language (English, Spanish*, French*, German*, Italian*, Chinese*).
• Module Options (ECG, Resp, SpO
2
, 1ch.Temp, 2ch.Temp*, NIBP, IBP,
Recorder).
Selections are enabled or disabled by checking or unchecking the box
which corresponds to each item in the menu.
NOTE: IBP and 2ch. Temp should not be enabled
simultaneously.
*Not available for domestic units.
