Trio™ Service Manual 0070-10-0591-01 1 - 3
Theory of Operation Hardware Overview
1.2 Hardware Overview

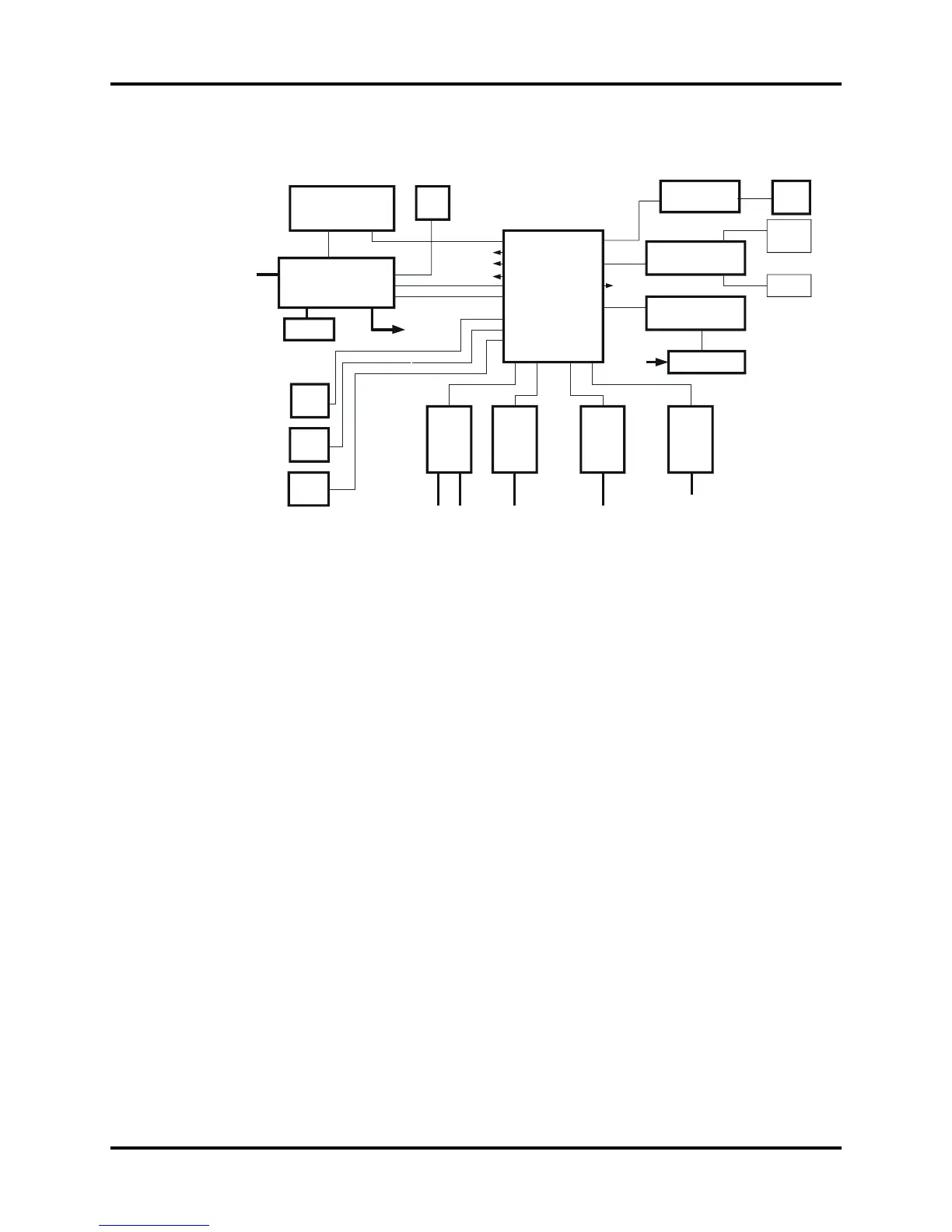

FIGURE 1-2 Connection Diagram
1.2.1 Power Supply Board (Lead Acid Battery)
P/N 0671-00-0235
Trio power supply board specifications:
• AC input voltage:100~250 VAC
• AC input current: <1.6 A
• AC voltage frequency: 50/60 HZ
• Two-way output voltage: 5 V/12 V, normal working current is 1.5 A for 5 V, 2 A
for 12 V
• Two-way output voltage has functions of short-circuit, over-current and over-voltage
protection
• The power board has reset function
• The power board can manage the charging process of lead-acid battery
(12 V/ 2.3 AH). The charging time is 8 hours maximum.
NOTE: Power Supply Board must be connected to resistive load to
operate properly and avoid damage due to an overcurrent
condition.
Host P.C.B.
ECG/RES
P/TEMP
P. C . B .
SPO2
NIBP
Module
P.C .B.
TFT Display
83 inchs
800 X 600
4
Power Supply PCB
Key &
Battery
ECG
IBP
NIBP
SPO2
VGA
interface
Analog
output
P11
P12
NET
Interface
P15
J2
J3
P16
J6
J5
J4
J7
J9
J8
X
1
X
2
X
3
X4
X5 X6
X7
X8
X9
X10
X11 X 21
X14
X15
X16
P1
P2 (CRT)
A4(TFT_DIGTAL)
P3 (FOR 9000
VGA)
P7
(
BDM
)
ECG
Cable
SpO2
Sensor
Cuff
IBP Cable
Main
Power
Input
TO
X4
FAN
TEMP
TEMP
Sensor
Serial Coverter
P. C. B
J2
To Next Page
