Trio™ Service Manual 0070-10-0591-01 3 - 5
Parts Exploded Views of the Trio Monitor

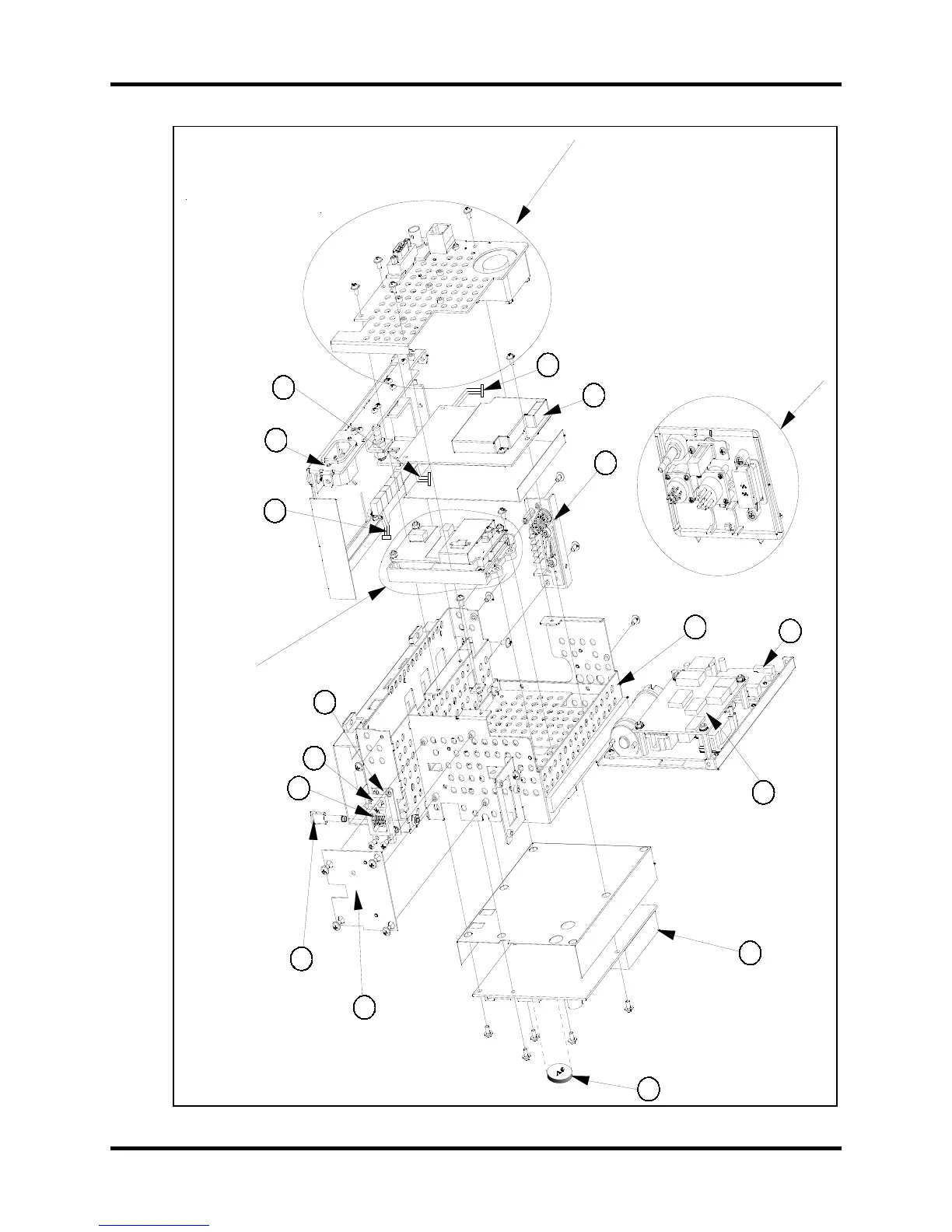

FIGURE 3-5 Main Chassis Sub-Assembly (Li Ion)
32
28
27
25
26
33
70
34
38
69
78
73
42
43
72
71
See Figures 3-9 and 3-10
See Figure 3-11
See Figures 3-7 and 3-8
