Trio™ Service Manual 0070-10-0591-01 4 - 7
Repair Information Introduction

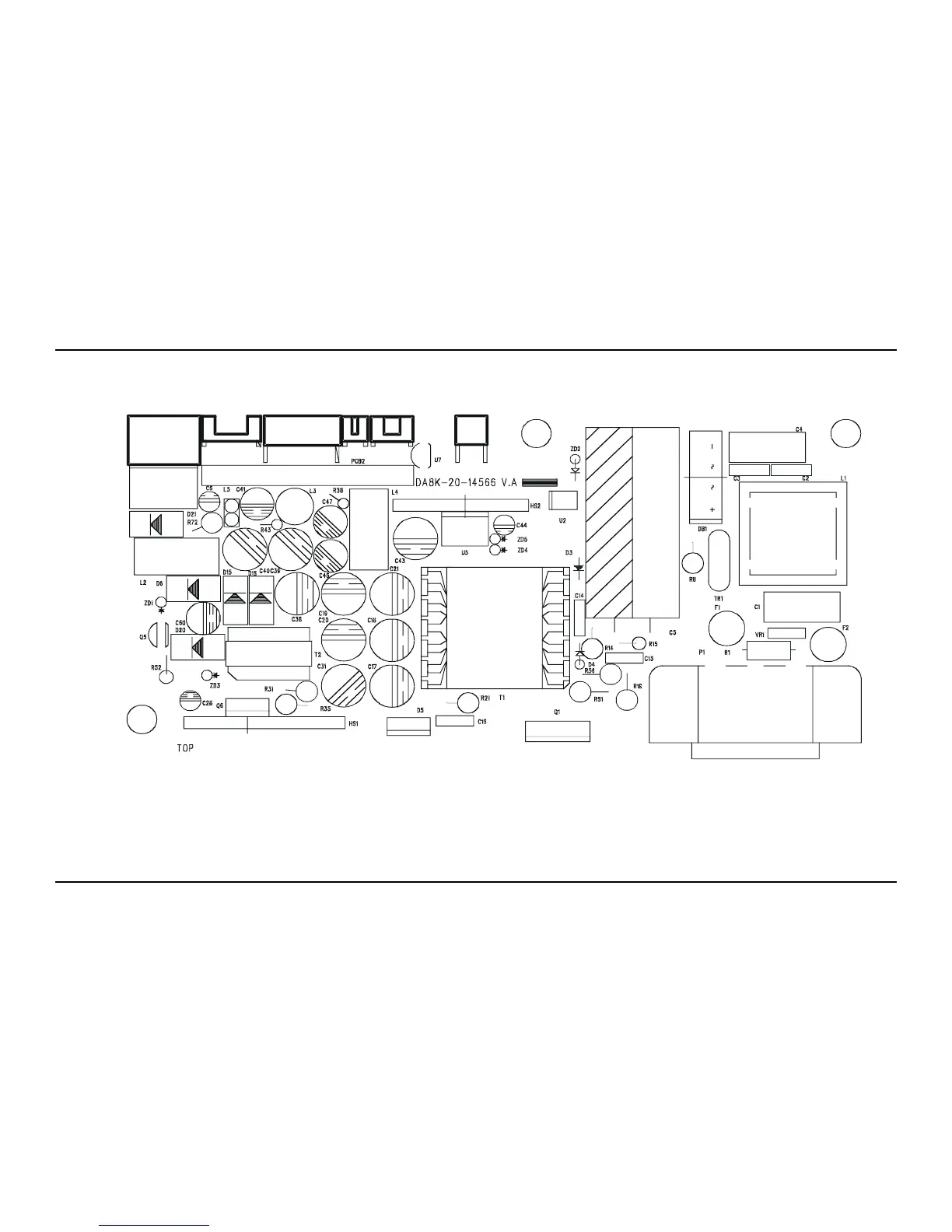

FIGURE 4-5 Power Supply Pcb (Lithium Ion Battery) Connector Reference
P2
BATTERY
(LI ION)
P4
POWER/P12
POWER/P11
P5
P6
P7
FAN DISPLAY
P3
REC
