Trio™ Service Manual 0070-10-0591-01 4 - 19
Repair Information ECG Shielded Lead Wires

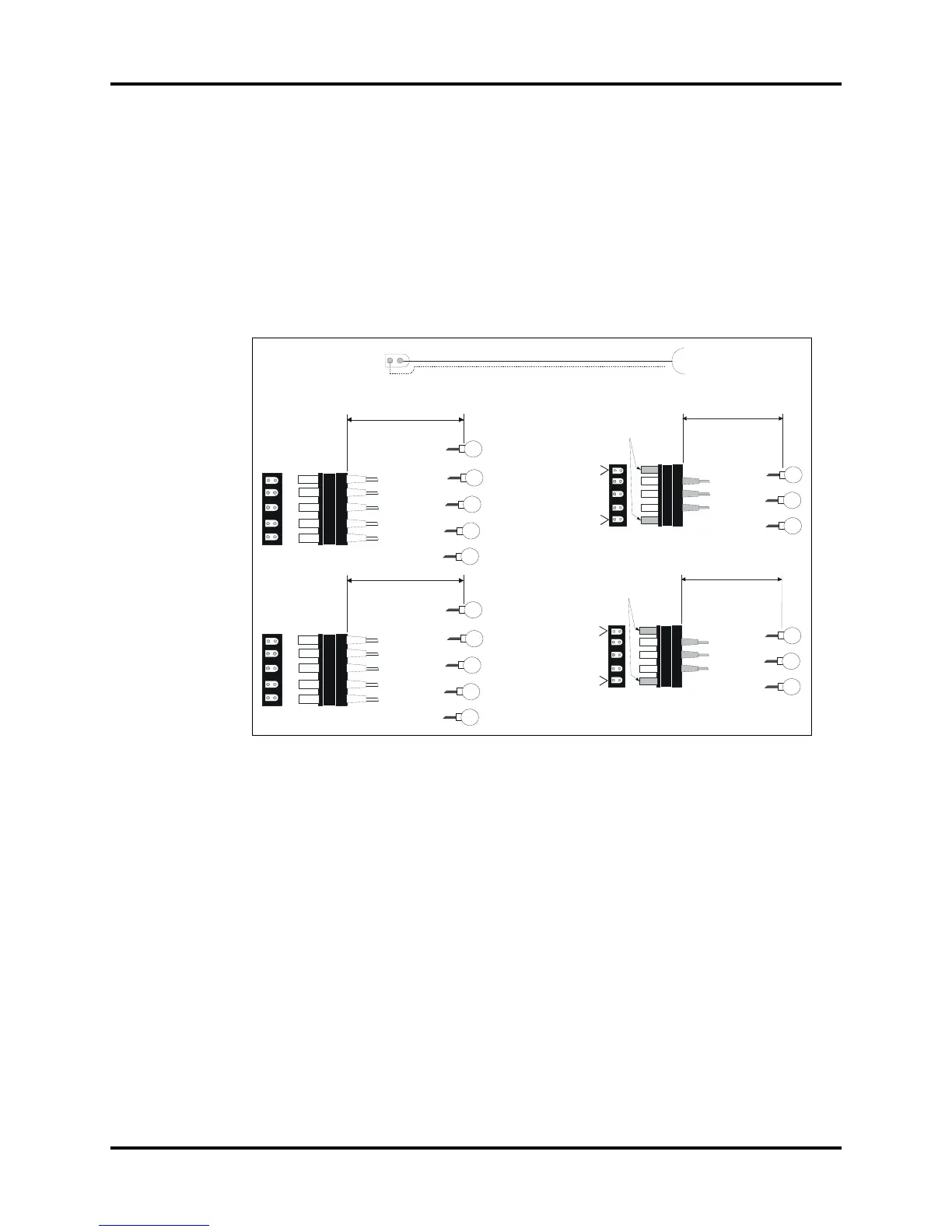

FIGURE 4-7 ECG Shielded Lead Wires (P/N 0012-00-1261-XX)
P/N 0012-00-1261-XX
- 01 18" snap 5 lead set Domestic - 14 3/40" 2/60" snap 5 lead set International
- 02 24" snap 5 lead set Domestic - 07 18" snap 3 lead set Domestic
- 03 40" snap 5 lead set Domestic - 08 24" snap 3 lead set Domestic
- 04 18" snap 5 lead set International - 09 40" snap 3 lead set Domestic
- 05 24" snap 5 lead set International - 10 18" snap 3 lead set International
- 06 40" snap 5 lead set International - 11 24" snap 3 lead set International
- 13 3/40" 2/60" snap 5 lead set Domestic - 12 40" snap 3 lead set International
GREEN
BLACK
RED
WHITE
BROWN
L" +/- 1.00"
GREEN
BLACK
RED
WHITE
BROWN
BLACK
YELLOW
GREEN
RED
WHITE
L" +/- 1.00"
BLACK
YELLOW
GREEN
RED
WHITE
BLACK
RED
WHITE
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
BLACK
RED
WHITE
YELLOW
GREEN
RED
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
YELLOW
GREEN
RED
LEAD
CONNECTOR
PATIENT END
TERMINATION
SHIELD
