Mindray Z60 User Manual

Image Optimization 5-31
a b
c d
e
f

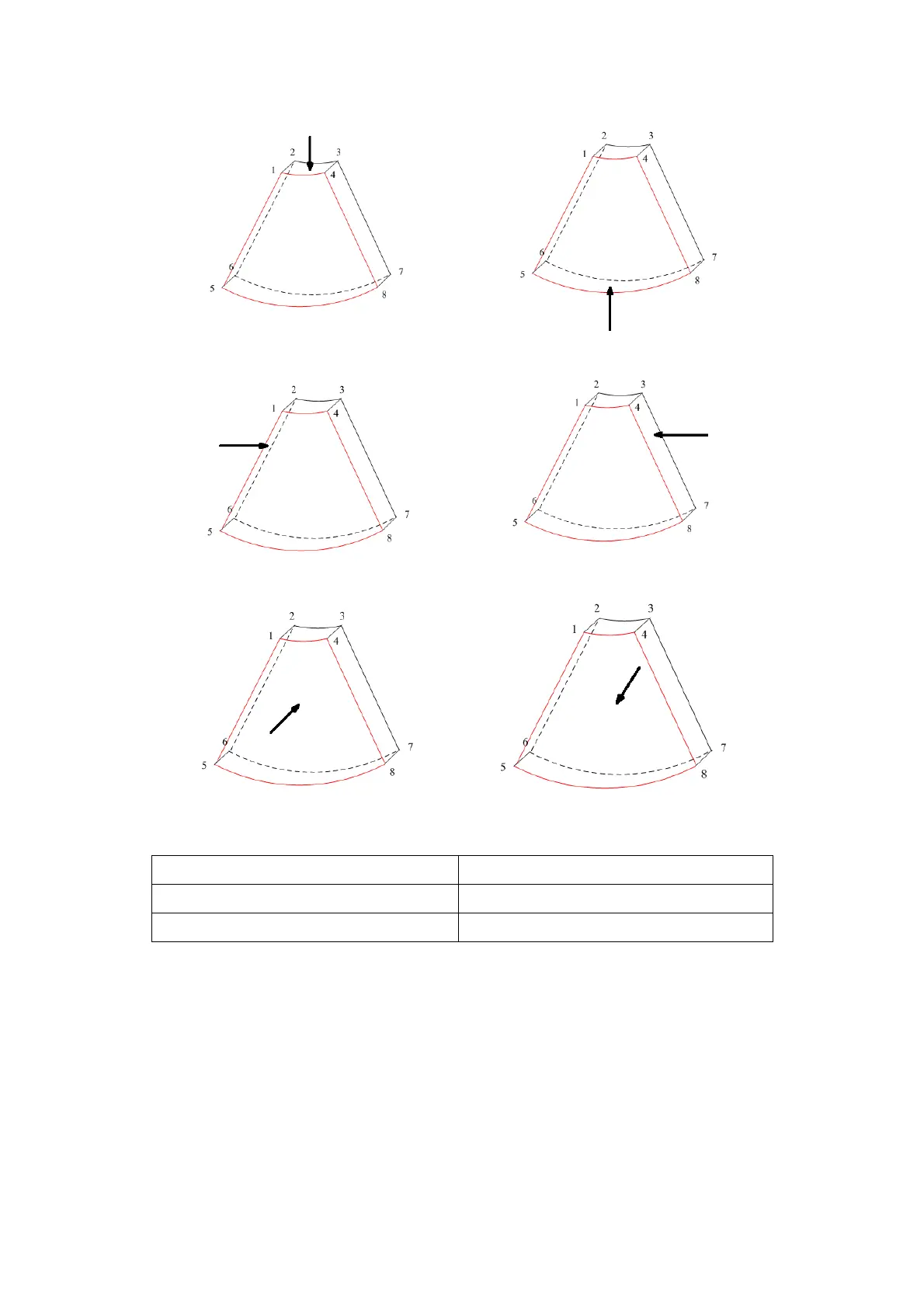

View Direction
a. Up/Down b. Down/Up
c. Left/Right
d. Right/Left
e. Front/Back
f. Back/Front
 Wire cage
When you view a Smart 3D image on the display monitor, it’s sometimes difficult to
recognize the orientation. To help, the system displays a three-dimensional drawing to
illustrate the orientation. Of which, the blue plane presents the image acquisition where
started, while the red plane presents the image acquisition where ended, besides, a
yellow plane in the wire cage presents the position of the sectional plane. See the graphic
below:

Mindray Z60 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Musculoskeletal, Small Parts, Pediatrics, Urology
Storage	500GB hard disk
Ports	Ethernet, USB, VGA
Imaging Modes	B/M/Color/Power/PW/CW
