System Overview 2-9

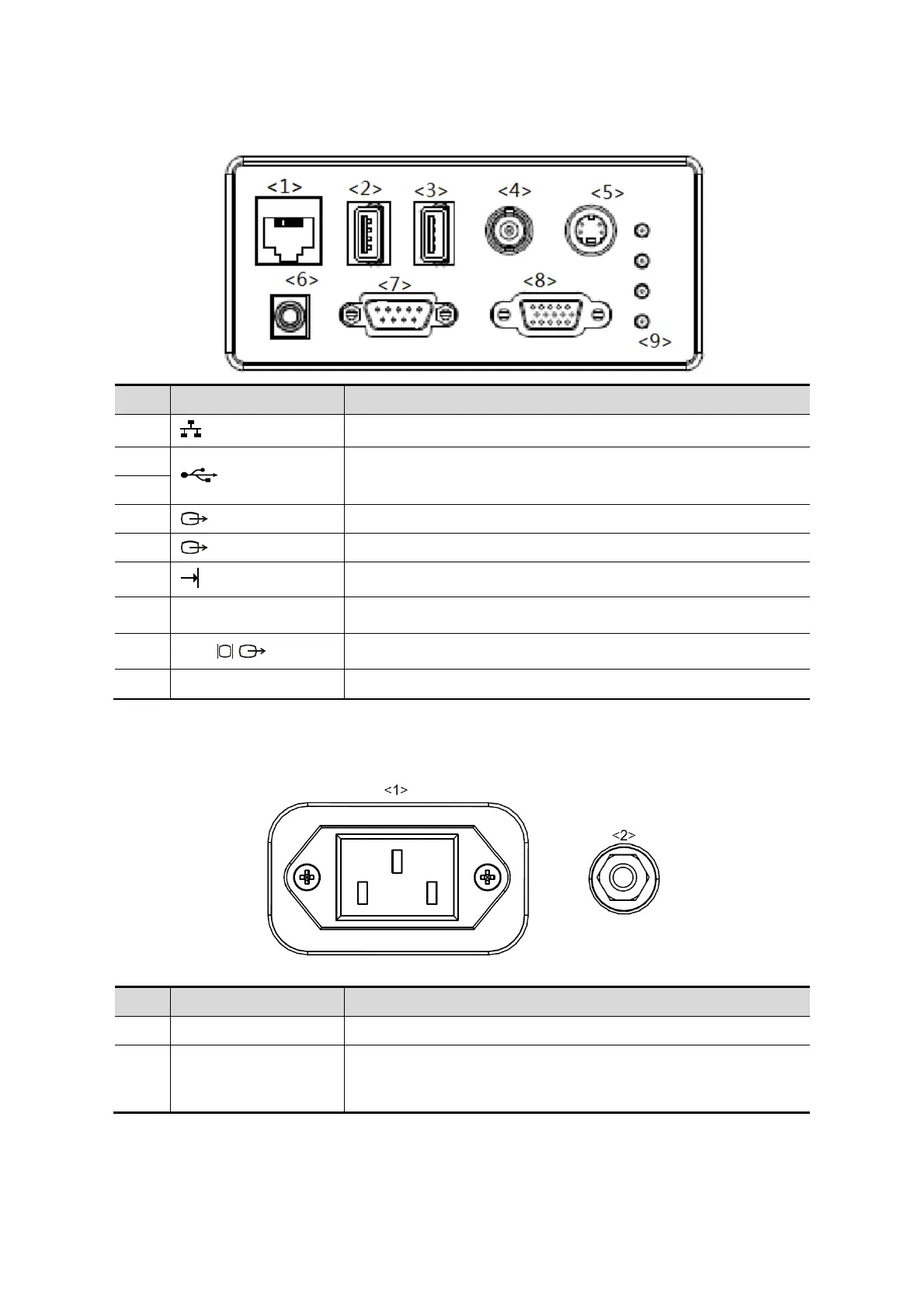

2.6.1 I/O Panel
No.
Symbol
Function
1
Network port
2
USB ports
3
4
Separate video output, connecting video printer or LCD
5
Composite video output
6
Remote control port
7
ECG
ECG port
8
VGA
VGA signal output
9
/
Power indicator
2.6.2 Power Supply Panel
No.
Name
Function
1 Power inlet AC power inlet
2 Equipotential terminal
Used for equipotential connection, that balances the
protective earth po
tentials between the system and other
electrical equipment.
