9-5-2. Comparative target for comparator S1, S2, S3 and S4
The comparator in this mode, S1, S2, S3 and S4 individually can select the comparative target from
[Display interlock], [NET] and [GROSS].
These selections can be made in the Function mode (F-21).
Default is set to [Set value or more] for every S1, S2, S3 and S4.
Depending on operational selection for comparator, ON/OFF condition for each output may differ. If
wrong mode is selected, ON/OFF condition for output becomes inadequate and it may cause an
unexpected accident due to malfunction on peripheral instruments, so care should be taken fully.

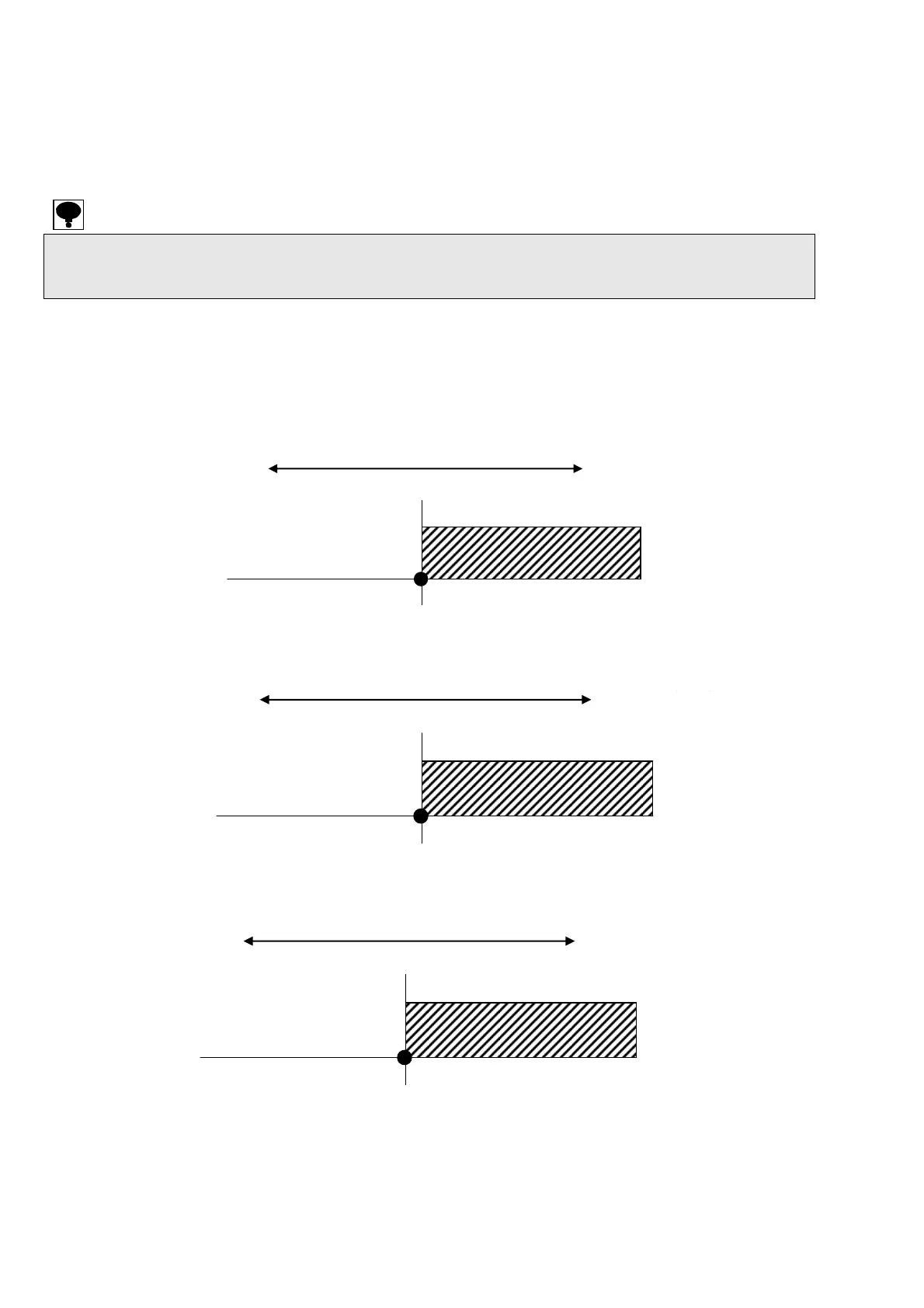

As for sample at S1, the operation at comparison value for every comparative target and also the
operation of output will be shown as follows:
Same are the case of S2, S3 and S4.
(1) [Display interlock] is selected
S1 output turns ON at S1 set value≦Load display value.
(2) [Gross weight] is selected.
S1 output turns ON at S1 set value≦Gross weight.
(3) [Net weight] is selected.
S1 output turns ON at S1 set value≦Gross weight.
Load display value (large)
Load display value (small)
S1 output ON
S1 output OFF
S1 set value
Net weight (large)
Net weight (small)
S1 output ON
S1 output OFF
S1 set value
Net weight (large)
Net weight (small)
S1 output ON
S1 output OFF
S1 set value
Gross weight (Large) Gross weight (Small)
