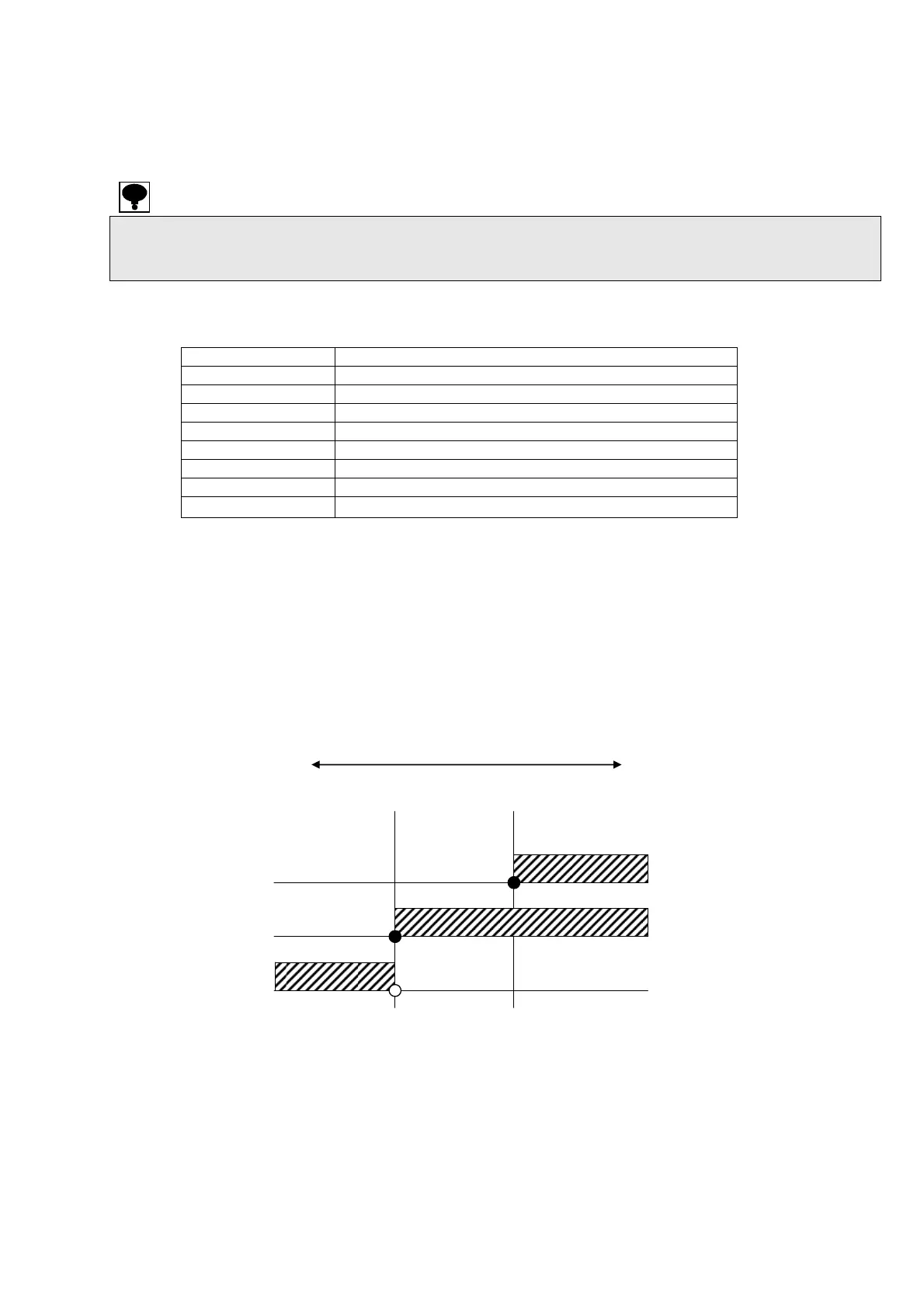

9-5-3. Operation of comparator S0
The comparator S0 in this mode can select one operation among eight operations.
This selection can be made in Function mode (F-23).
Default is set to [Always off].
Depending on operational selection for comparator, ON/OFF condition for each output may differ. If
wrong mode is selected, ON/OFF condition for output becomes inadequate and it may cause an
unexpected accident due to malfunction on peripheral instruments, so care should be taken fully.
The operation of S0 output is shown at the time of whichever setting with F-23.
Setting with F-23. Operation
0 Always OFF
1 Turns ON when both outputs of S1 and S2 are OFF
2 Turns ON when both outputs of S1 and S3 are OFF
3 Turns ON when both outputs of S1 and S4 are OFF
4 Turns ON when both outputs of S2 and S3 are OFF
5 Turns ON when both outputs of S2 and S4 are OFF
6 Turns ON when both outputs of S3 and S4 are OFF
7
Turns ON when (Gross weight) ≧ (Weighing capacity)
In the next, as for the sample, the operation at S0 output selected [1] with F-23 among [1] to [6] will be
shown as below.
Same operation will be performed when [2] to [6] with F-23.
(1) When the both of S1 and S2 select [Set value or more] with the Function F−22.
S1 output ON at S1 set value ≦ Comparison value
S2 output ON at S2 set value ≦ Comparison value
S0 output ON at S1 set value ＞ Comparison value and also S2 set value ＞ Comparison value at
the same time
S1 set value S2 set value
comparative target (small) comparative target (large)
S1 output ON
S1 output OFF
S2 output ON
S2 output OFF
S0 output ON
S0 output OFF
