9-2. Measurement comparison value setting mode
The set value in which each measurement operation in executed in the measurement comparison
value setting mode is set.
By a selected measurement mode, setting content is different.
9-2-1. Measurement comparison value 1 setting mode
The measurement comparison value used in simple comparison mode and sequential mode is set

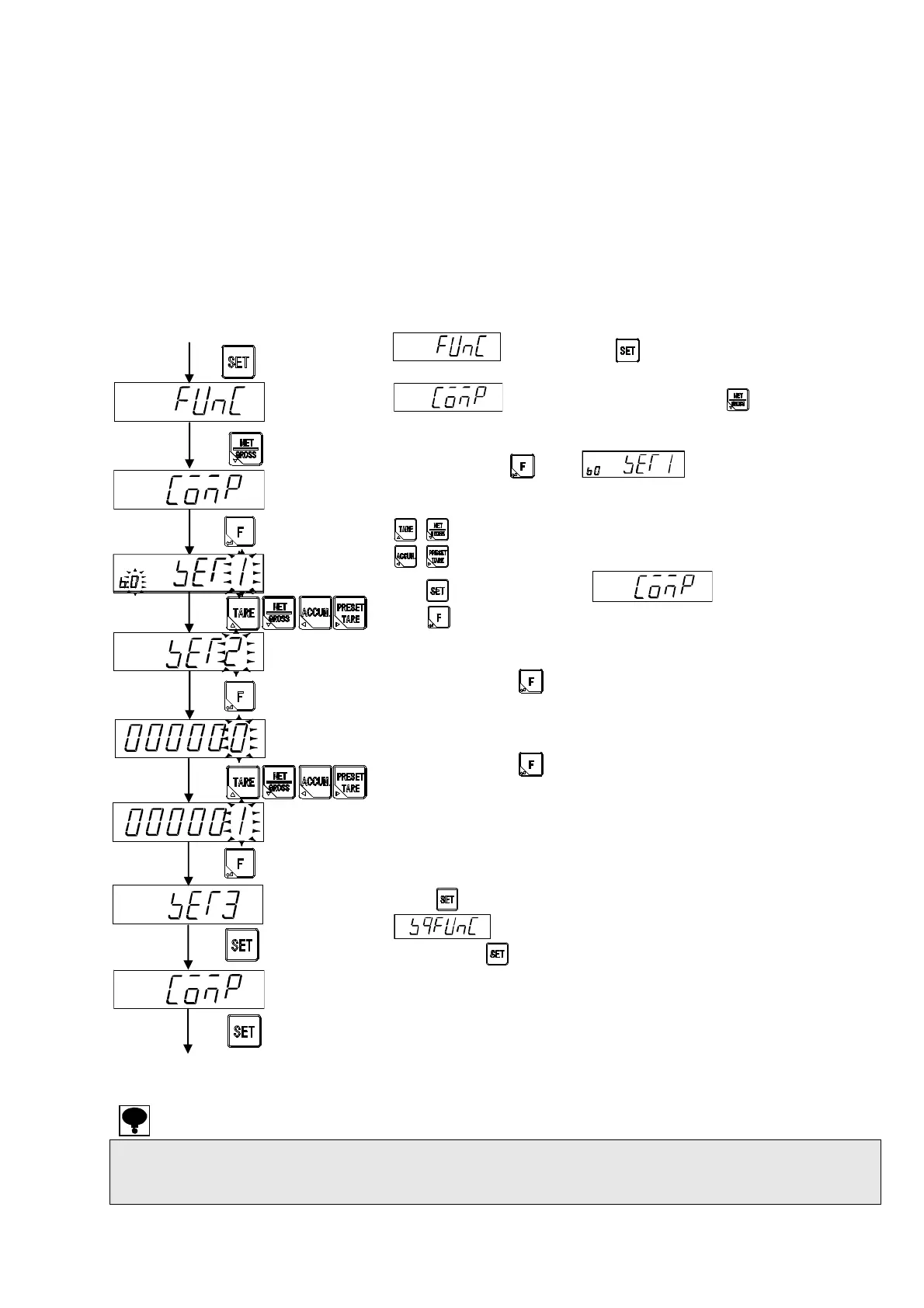

(1) Setting method of measurement comparison value 1 setting mode
Change from the standard measurement mode to the
display by the key.
is displayed after pressing the key twice,
and enter into the measurement comparison value 1 setting mode.
By pressing the key, is displayed.
At this time, the corresponding display blinks linked to the display for
SET1 to SET8 and B0 to B7.
: The value of changed digit is changed.
: Changed digit is selected.
: Display returns to .
: The display value is memorized, and it proceeds to the next
step.
Please press the key, and set the setting value of the selected
comparison value.
At this time, the condition display that becomes an object along with
the setting of SET1 to SET8 blinks.
Please press the key. The setting content is registered and the
display panel displays the following registered measurement
comparison value number.
Please continue and select the selected measurement comparison
value number when you change setting of other measurement
comparison value number.
If the key is pressed after registration is completed, it becomes
display. Please set to the measurement mode by
pressing the key.
Please do not change in the set value under the measurement because the A/D sampling rate
decreases temporarily while rewriting the set value. Please set the storing place to the internal ROM
when you change the set value during the measurement.
Measurement mode
Measurement mode
