THE MINELAB ‘GP extreme’
6
ASSEMBLY
2
www.minelab.com
UNPACKING YOUR ‘GP Extreme’
A. ‘GP extreme’ 1100 Coil with Skid Plate and
Fibreglass Lower Shaft attached.
B. Intermediate Shaft.
C.
‘GP extreme’ Control Box with Upper
Shaft, Handle, Arm Rest, Arm Straps and
Neoprene Armrest Cover attached.
D. Headphones.
E. Battery and Battery Pack.
F. Velcro Straps, Knuckle and Bungy Cord.
G. Battery Cable.
H. Vehicle Charger.
I. Mains Charger.
J. Backpack Strap.
K. Instruction Manual, Field Guide and Rubbish Bag.
L. Hard Carry Case.
M.
‘GP extreme’ 1800 coil with skidplate (in separate
carton).
The ‘GP extreme’ as shipped

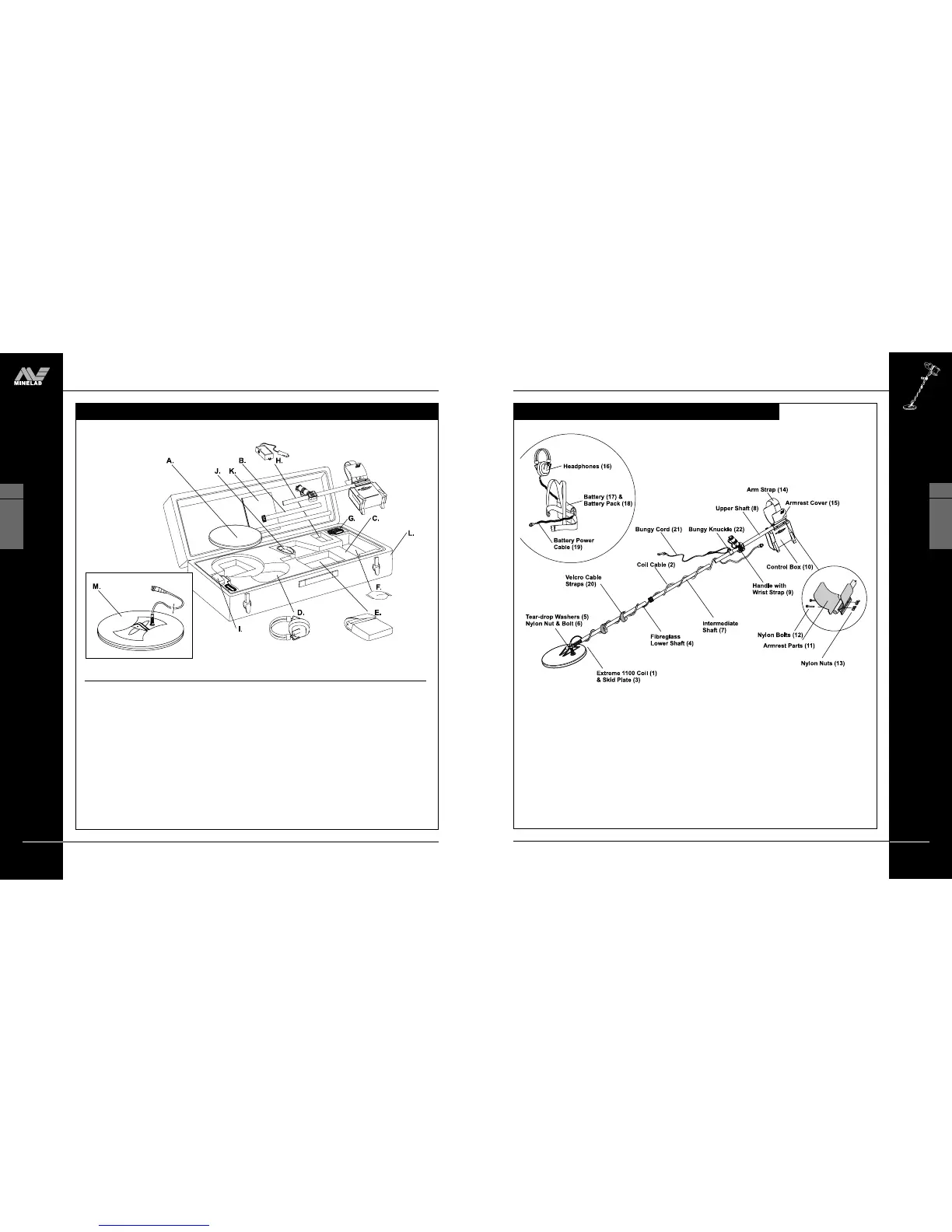

Figure 2.1 Contents of the ‘GP extreme’ pack
P0501-A
easy reference
UNPACKING YOUR ‘GP extreme’
THE MINELAB ‘GP extreme’
7
ASSEMBLY
2
LIST OF PRE-ASSEMBLED SECTIONS AND PARTS
PRE-ASSEMBLED SECTIONS
Figure 2.2 Pre-assembled sections and parts list
A. Lower Shaft Assembly
1. Extreme 1100 Coil
2. Coil Cable
3. Skid Plate
4. Fibreglass Lower Shaft
5. Nylon Nut & Bolt
6. Teardrop Washers
B. Intermediate Shaft Assembly
7. Intermediate Shaft
C. Upper Shaft Assembly
8. Upper Shaft
9. Handle with Wrist Strap
10. Control Box
11. Armrest Parts (2)
12. Nylon Bolt (2)
13. Nylon Nut (2)
14. Arm Straps (2)
15. Armrest Cover
D. Headphones
16. Headphones
E. Battery and Battery Pack
17. Battery
18. Battery Pack
19. Battery Power Cable
F. Extras
20. Velcro Cable Straps (3)
21. Bungy Cord
22. Bungy Knuckle
A.
B
C
D
E
F
P0502-B
