MINN KOTA CoPilot - Parts Diagram & Parts List; CoPilot Parts Diagram; CoPilot Parts List

minnkotamotors.com | 19
©2019 Johnson Outdoors Marine Electronics, Inc.
PaRTs DIaGRaM & PaRTs lIsT
COPILOT ACCESSORY
B
6
8
14
10
12
2
4
A

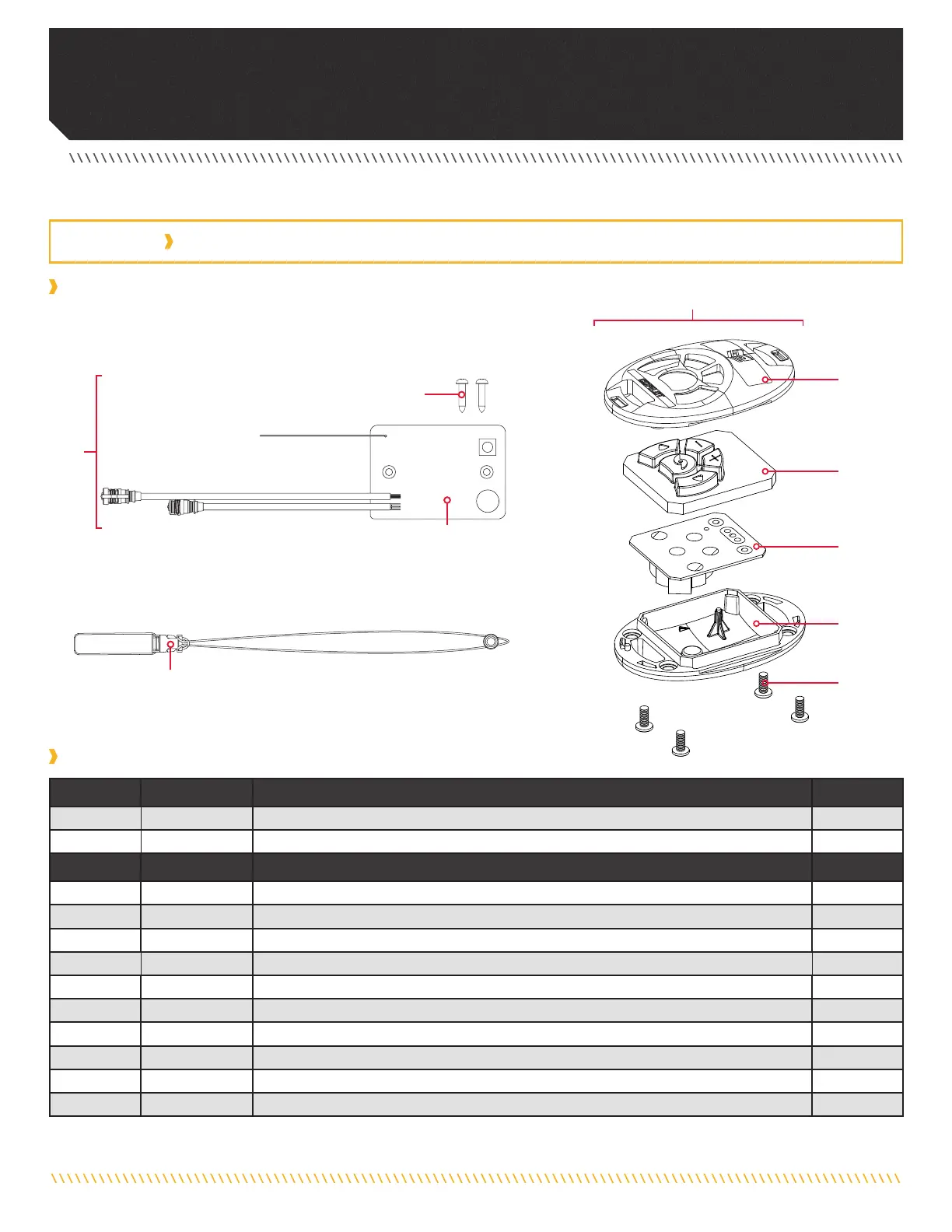

CoPilot Parts Diagram
POWERDRIVE
16
Assembly Part # Description Quantity
A
2994112 CTRL BOARD V2 COPILOT Receiver
1
B
2994020 TRANSMTR, ASY, PD/AP COPLT
1
Item Part # Description Quantity
2 2373418 SCREW-#8 X 5/8 PPHSMS S/S 2
4 2374092 CTRL BOARD V2 COPILOT RECEIVER 1
6 2372503 CASE, COVER, TRANSMITTER ASY 1
8
2375110 KEYPAD, TRANSMITTER ASSY 1
10 2372505 CASE, BOTTOM, TRANSMITTER ASSY 1
12 2373440 SCREW-#4-24 X 1/4 PHCR SS TY B 4
14
✖
PCB ASY, CO-PILOT TRANSMITTER 1
16 2390801 LANYARD, REMOTE 1
p
2005621 DECAL - CE/RCM/WEE CMPLNC.MARK 1
p
2377166 MANUAL-CO-PILOT V3 1
CoPilot Parts List
✖ This part is included in an assembly and cannot be ordered individually.
p Not shown on Parts Diagram.
