Depth Adjustment
• Firmly grasp the outer shaft or
control head and hold it steady.
• Loosen depth setting knob until
the shaft slides freely.
• Raise or lower the motor to the
desired depth.
• Turn the motor control head to
the desired position.
• Tighten depth setting knob to
secure the motor in place.
Note: When setting the depth be sure
the top of the motor is submerged at
least 12” to avoid churning or agitation
of surface water. The propeller must be
completely submerged.
Steering Adjustment
• Adjust steering tension knob to provide enough tension to allow the motor
to turn freely, yet remain in any position without being held or; Tighten
the knob and lock the motor in a preset position to leave your hands free
for fishing.

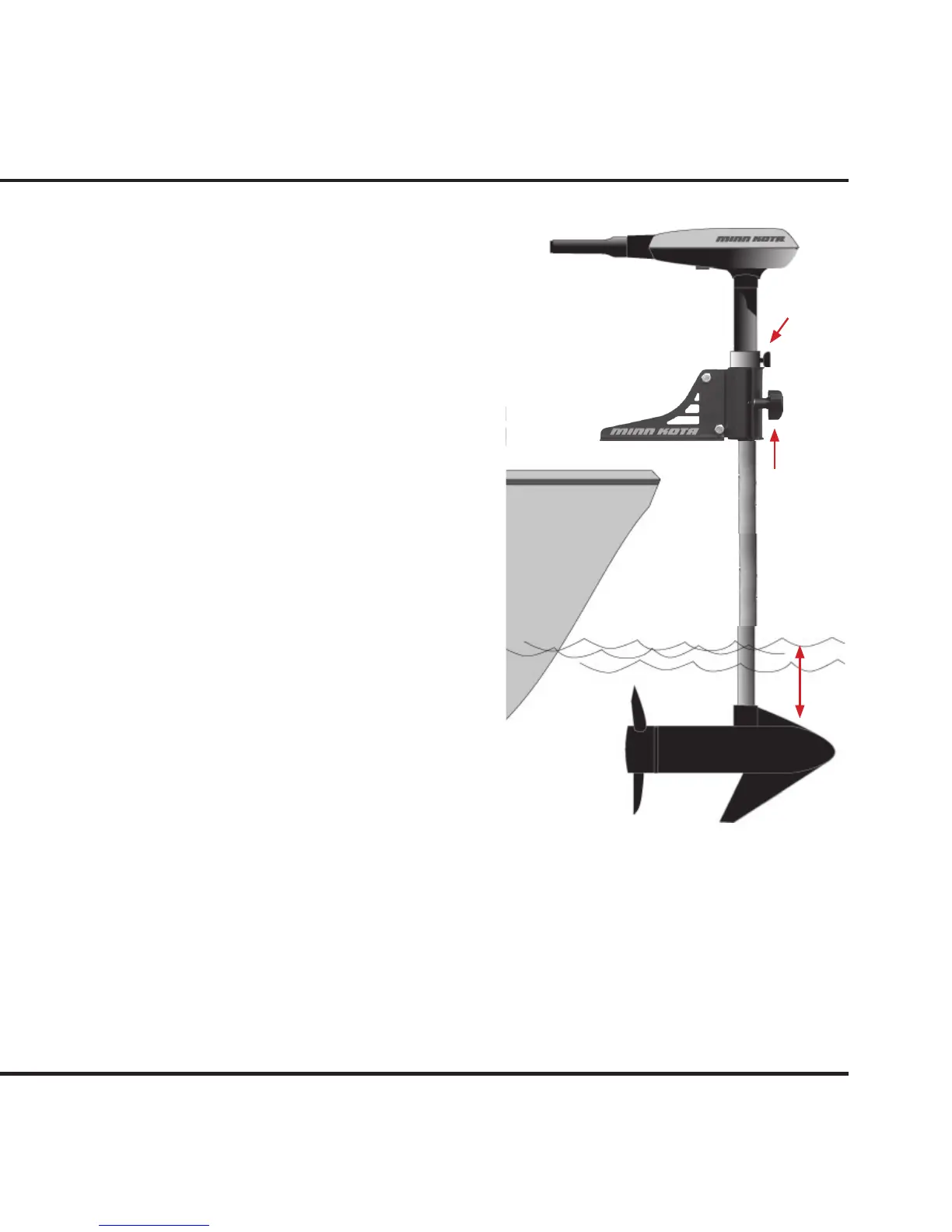

Depth
Setting
Knob
Steering
Tension
Knob
12”
Minimum
Depth
