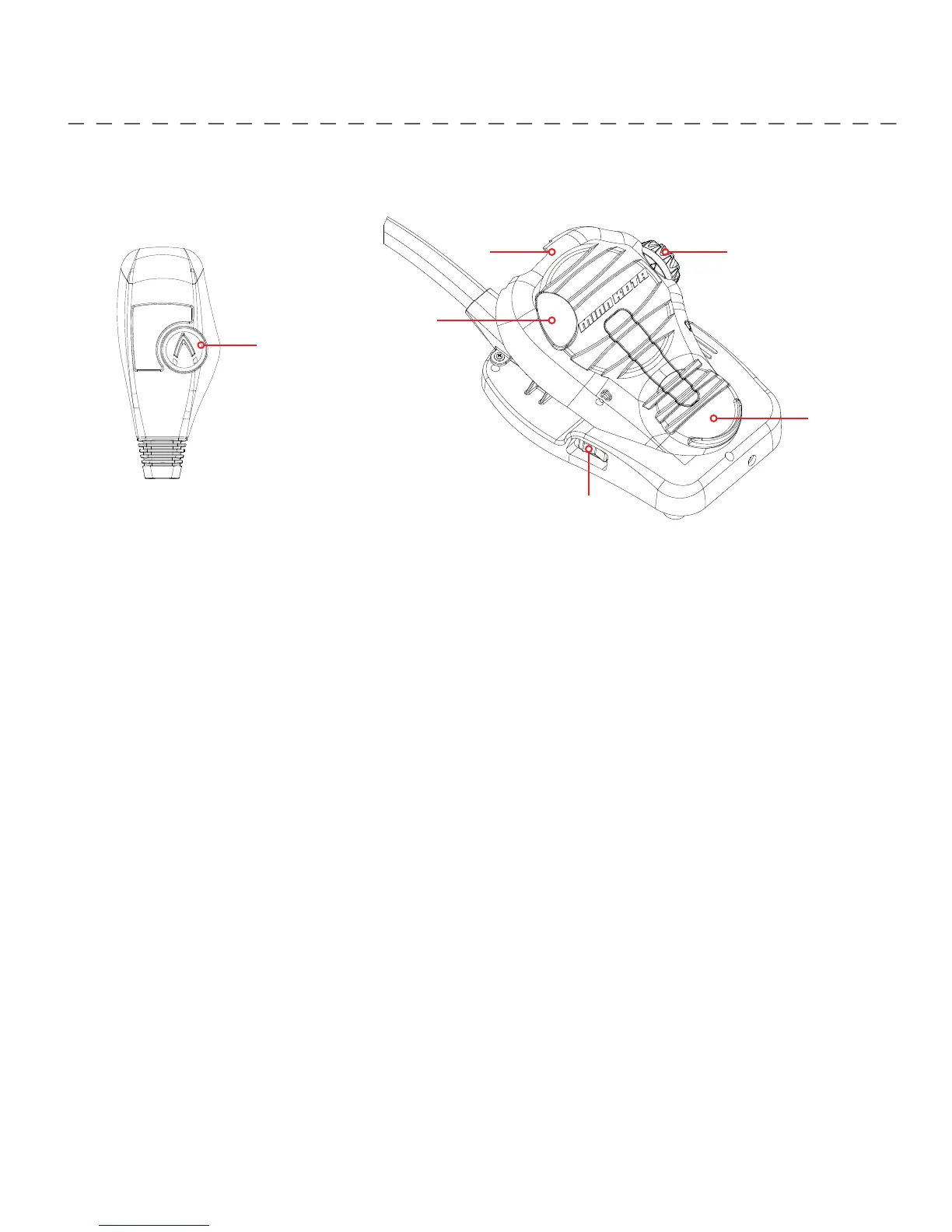

Toe End Speed Knob
Heel End
Constant On Switch
Momentary On Button
Directional
Indicator
CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL
Most controls on the foot pedal are easy to operate by either foot or hand:
TO ADJUST MOTOR SPEED
Turn the speed knob clockwise to increase speed and counter-clockwise to decrease speed.
TO OPERATE THE MOTOR IN MOMENTARY MODE
The default mode of operation for the foot pedal is Momentary. In this mode, the motor will only run while downward force is
applied to the Momentary On button on the top of the foot pedal. A toe touch to the Momentary button on the top of the foot
pedal will turn the propeller on in this mode. Removing downward force on the Momentary button will turn the propeller off .
TO OPERATE THE MOTOR IN CONSTANT MODE
To switch to Constant Mode, fl ip the side-mounted Constant On switch until the propeller starts. In Constant Mode, the propeller
will continually run, regardless of whether force is being applied to the Momentary On button on the top of the foot pedal.
TO TURN LEFT OR RIGHT
Push the toe end of the foot pedal down to turn right and push the heel end of the foot pedal down to turn left. The indicator on
the motor head shows the direction of the motor. The motor will not maintain its own heading. You must keep your foot on the
pedal to control steering during operation.
TO REVERSE THE MOTOR
The motor always travels in the direction of the indicator. You can reverse the direction of the motor by turning the motor 180°
from straight ahead.
CAUTION:
• Make sure the Constant On switch is in the off position when not in use. If the motor control is left on and the
propeller rotation is blocked, severe motor damage can result.
• Be sure to turn the motor off after each use.
• For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the
battery/batteries are being charged.
Directional
Indicator
| 15
USING & ADJUSTING THE MOTOR
To Next Page
