INSTALLING THE RIPTIDE ULTERRA

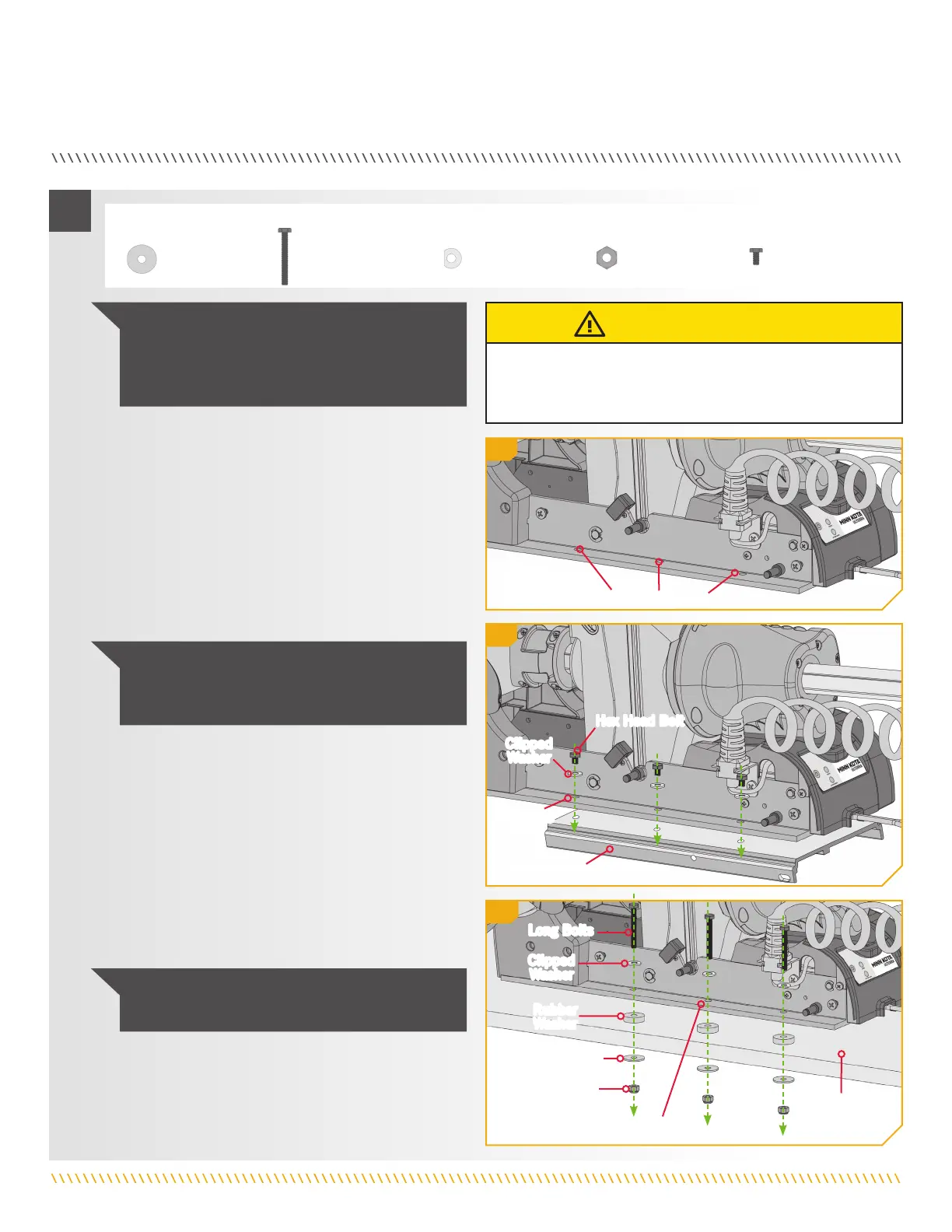

s. Place the hardware on the Damper side of the
mount into the Mounting Holes to secure the
Base Extrusion.
t. If installing with a Quick Release Bracket, install
the motor with the Hex Head Bolts (Item #3) and
Clipped Washers (Item #4). Orientate the Clipped
Washers so that the flat side of the washer is
towards the Base Extrusion. The Bolt should pass
through the Clipped Washer, Base Extrusion and
into a Quick Release Bracket.
ITEM(S) NEEDED
Mounting Holes
Mounting Holes
Boat Deck
Long Bolts
Clipped
Washer
Rubber
Washer
Flat Washer
Nylock Nut
#2 x 3#5 x 3 #4 x 3 #6 x 3 #3 x 3
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may
help prevent seizing.
NOTICE: The Long Bolts, Flat Washers and Nylock
Nut are not used when installing the Riptide Ulterra
with a Quick Release Bracket.
NOTICE: The Short Bolts are not used when
installing the Riptide Ulterra directly to the boat.
Mounting
Holes
Quick Release Bracket
Hex Head Bolt
Clipped
Washer
12
CAUTION
Use extra care to avoid pinching and damaging the sensor wires
that run along side of the Base Extrusion when installing and
tightening the motor mounting bolts.
12s
12t
12u
u. If installing directly to the boat deck, install the
motor with the Long Bolts (Item #2), Clipped
Washer (Item #4), Flat Washer (Item #5) and
Nylock Nut (Item #6). Orientate the Clipped
Washers so that the flat side of the washer is
towards the Base Extrusion. The Bolt should pass
through the Clipped Washer, the Base Extrusion, the
Rubber Washer and then through the Boat Deck.
The Bolt should be secured by first adding the Flat
Washer (Item #5) and then securing with a Nylock
Nut (Item #6).
