INSTALLING THE RIPTIDE ULTERRA

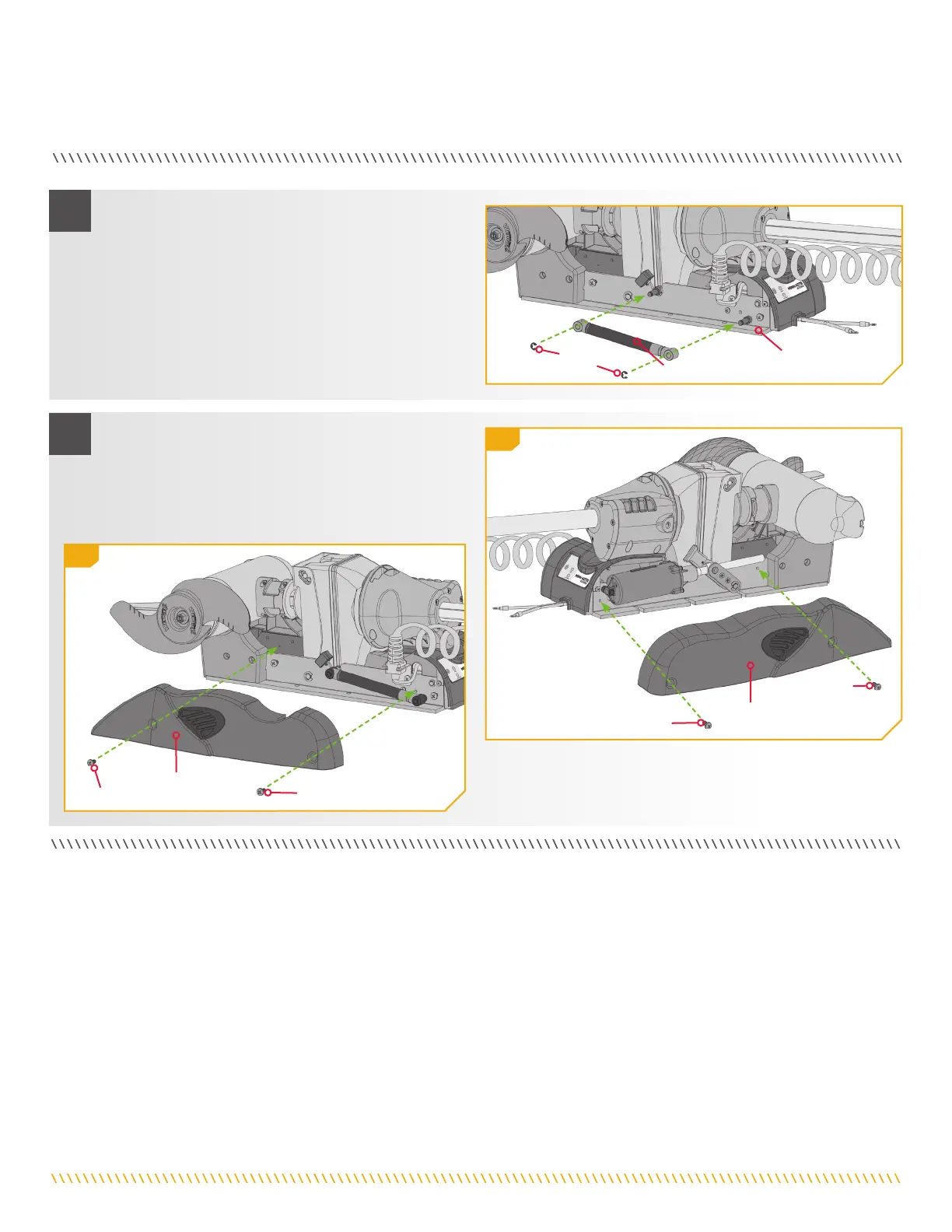

v. At this point in the installation process the Motor
should be secured to the deck of the boat, and
the Motor can now be reassembled. The Extension
Damper can be slid back in place on the Damper
Pins. This should be done so the shaft on the Damper
is pointing inboard. Reinstall the two 5/16" E-clips.
w. Replace the Right Sideplate.
x. Replace the Left Sideplate.
y. Replace the four sideplate Screws using a #2 or #3
Phillips Screw Driver.
Left Sideplate
Screw
Screw
Screw
Right Sideplate
Screw
E-clips
Extension Damper
Damper Pins
13
14
14w
14x
