IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
The Ultrex is pre-installed with Advanced GPS Navigation - including the ability to connect via Ethernet to a Humminbird unit. It is also
installed with sonar, either Dual Spectrum CHIRP or Built-in MEGA Down Imaging. Dual Spectrum CHIRP and Built-in MEGA Down Imaging
will be installed in combination with Advanced GPS Navigation. All of these features require Accessory Cables to be connected to an
output device. The connectors are present on the trolling motor and have cables that exit below the Control Head or run parallel to the
Coil Cord and exit at the base of the Mount. To better identify Accessory Cables present, refer to the diagrams that detail what the Dual
Spectrum CHIRP, Built-in MEGA Down Imaging and Advanced GPS Navigation connectors look like.

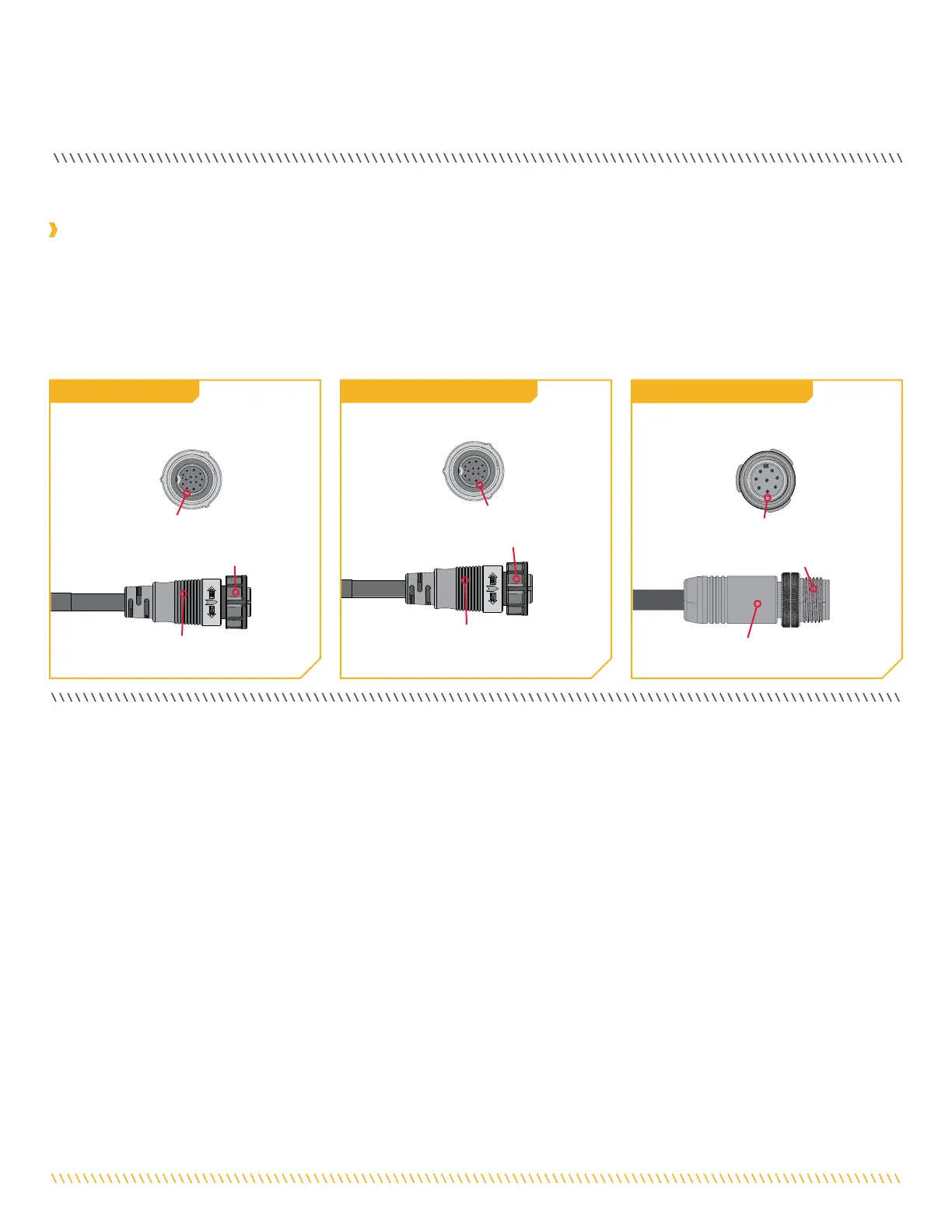

Feature & Cable Identification
Ethernet Cable Ethernet Cable
from Trolling Motorfrom Trolling Motor
Threaded CollarThreaded Collar
Locking CollarLocking Collar
Eight Pin ConnectorEight Pin Connector
Dual Spectrum CHIRP Dual Spectrum CHIRP
from Trolling Motorfrom Trolling Motor
Dual Spectrum CHIRP
Advanced GPS Navigation
Fourteen Pin ConnectorFourteen Pin Connector
Locking CollarLocking Collar
Built-in MEGA Built-in MEGA
Down Imaging from Down Imaging from
Trolling MotorTrolling Motor
Built-in MEGA Down Imaging
Fourteen Pin ConnectorFourteen Pin Connector
