minnkotamotors.com | 25 ©2023 Johnson Outdoors Marine Electronics, Inc.

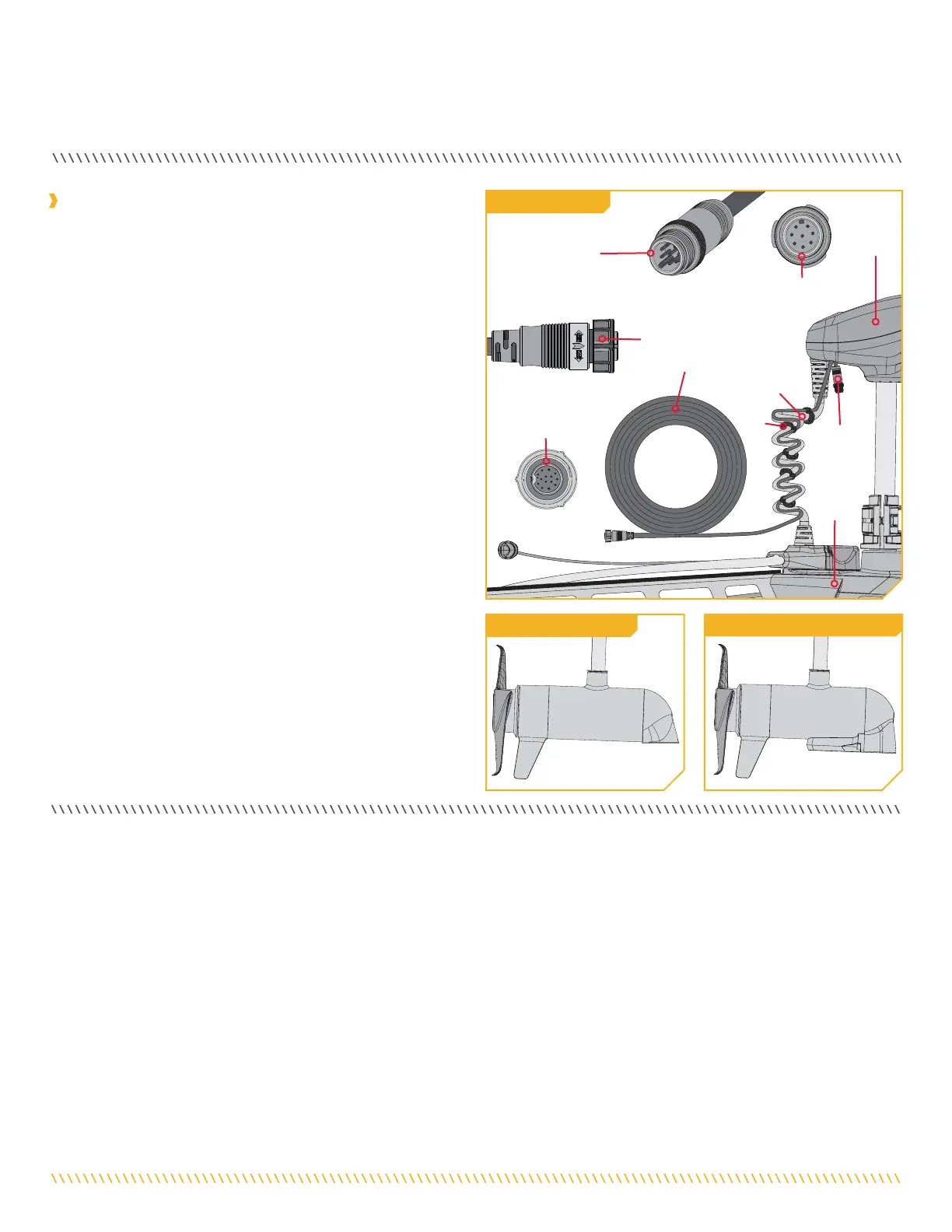

IDENTIFYING CONNECTORS
Identifying Connectors
Control Control
HeadHead
MountMount
Advanced Advanced
GPS GPS
Ethernet Ethernet
ConnectorConnector
TWO Connectors
Dual Spectrum CHIRP
Built-in MEGA Built-in MEGA
Down Imaging Down Imaging
or Dual Spectrum or Dual Spectrum
CHIRPCHIRP
Fourteen Pin Fourteen Pin
ConnectorConnector
Built-in MEGA Down Imaging
Every Ultrex will have TWO connectors present below the Control
Head. The trolling motor will be equipped with:
Eight Pin Eight Pin
ConnectorConnector
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Coil Coil
CordCord
ClipClip
Advanced GPS Navigation & Dual Spectrum CHIRP or Built-in
MEGA Down Imaging - Advanced GPS Navigation is pre-
installed on your trolling motor. One Eight Pin Advanced GPS
Ethernet Connector will exit the base of the Control Head and
rest just below the Control Head next to the Coil Cord. If the
Advanced GPS Navigation on the trolling motor will be used
with a fish finder, an Ethernet Cable may be attached to the
Advanced GPS Ethernet Connector below the Control Head. See
the “Advanced GPS Navigation” section of this document for
details on how to install the Advanced GPS Ethernet Connector
to a Humminbird.
Dual Spectrum CHIRP or Built-in MEGA Down Imaging is
pre-installed on your trolling motor. One Sonar Accessory Cable
will exit the base of the Control Head and run parallel to the Coil
Cord. The Cable will come installed from the factory secured
to the Coil Cord. The end of the Cable will have a Fourteen Pin
Connector. Motors with Dual Spectrum CHIRP or Built-in MEGA
Down Imaging will also have a transducer in the Lower Unit. The
appearance of the transducer will vary depending on sonar type.
