minnkotamotors.com | 5 ©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLING THE ULTREX
Your new Ultrex comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled
with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to the installation
instructions provided with the bracket. For compatible quick release mounting bracket, please visit
minnkotamotors.com. To install the motor
directly to the boat, please follow the instructions provided in this manual. Please review the parts list, mounting considerations and tools needed
for installation prior to getting started. For additional product support and to locate your nearest dealer, please visit
minnkotamotors.com.

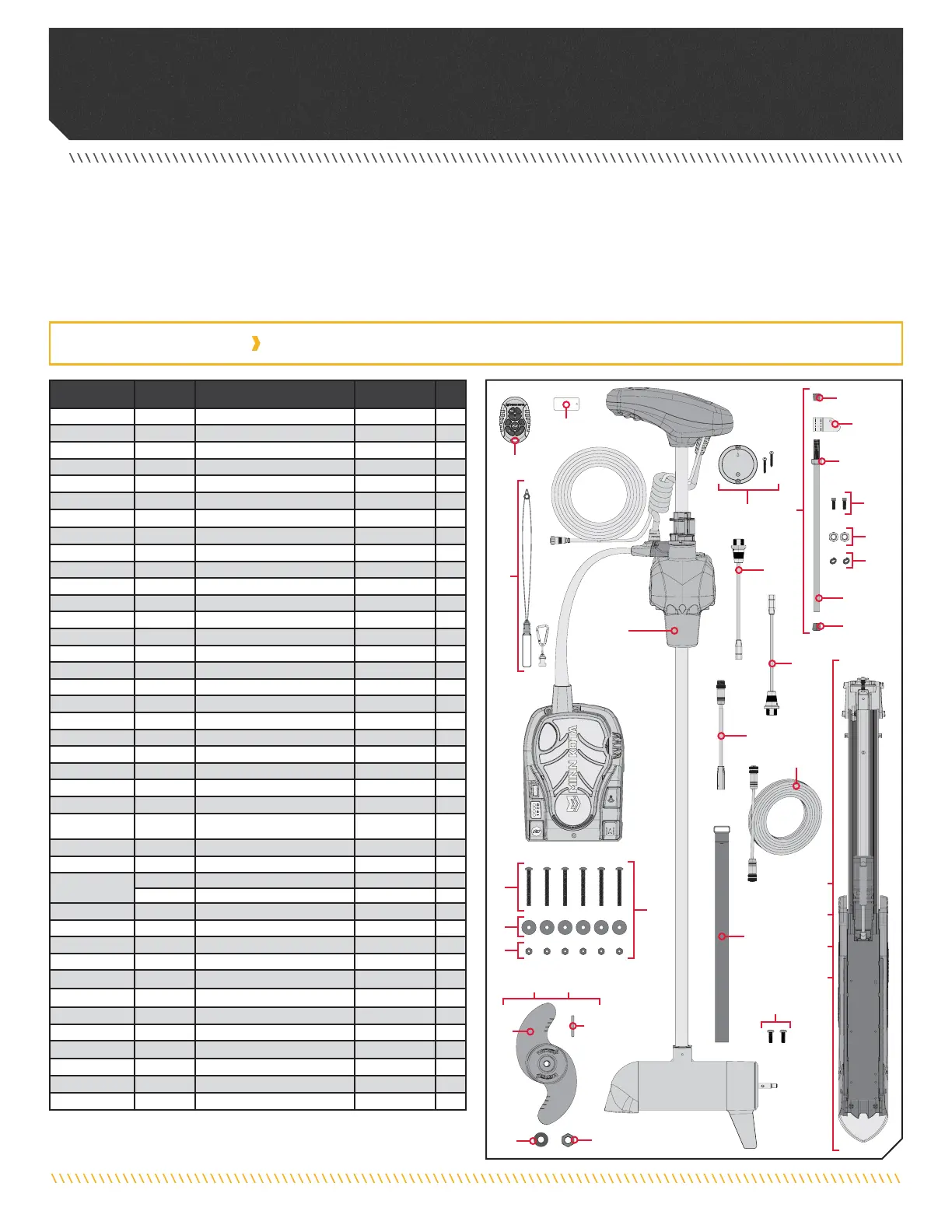

INSTALLATION PARTS LIST
55
66
11
99
2525
2424
88
BB
22
44
33
2222
1919
2121
2020
Item /
Assembly
Part # Description Notes Qty.
1
✖
MOTOR ASSEMBLY 1
A (Includes 2-4) 2994887 INSTALL HARDWARE BAG ASSY 1
2 2263468 1/4 - 20 X 2.5" SS PPH SCREW 6
3 2263103 1/4 - 20 SS NYLOCK NUT 6
4 2261713 1/4 FLAT 18-8 SS WASHER 6
5 2994175 REMOTE ASM, MICRO REMOTE 1
6 2394110 TAG, MICRO REMOTE 1
7 2390802 LANYARD w/CARABINR, IP RMT 1
8 490384-4 CABLE, ETHERNET (M12-M12) 30' 1
9 490380-1 CABLE, ETHERNET PIGTAIL-700 HD 1
10 2373434 SCREW-1/4-20 X 3/4 SS PPMS 2
B 2996400 HEADING SENSOR ASSEMBLY 1
C 2991670 MOUNT ASM, ULTREX 80#, 45" *80LB 45"* 1
D 2991671 MOUNT ASM, ULTREX 80#, 52" *80LB 52"* 1
E 2991672 MOUNT ASM, ULTREX 112#, 45" *112LB 45"* 1
F 2991673 MOUNT ASM, ULTREX 112#, 52" *112LB 52/60"* 1
G (Includes 11-18) 2991925 BRACKET STABLZR ARM ASY 1
11 2265100 BUMPER STABILIZER 1
12 2263624 STABILIZER ROD 1
13 2263107 NYLON HEX NUT 3/4 - 10 UNC 1
14 2281829 BRACKET 1
15 2260221 VINYL CAP 1
16 2223100 NUT 5/16-18 NYLOCS SS 2
17 2263422 BOLT 5/16-18 X 1" SS CAP SCREW 2
18 2281700
5/16 "ID X .457 OD HIGH COLLAR
LOCK WASHER
2
H (Includes 19-22) 1378132 PROP IND 2331160 WDLS WDG II *80LB* 1
J (Includes 19-22) 1378160 PROP KIT 2341160 112# WW2 *112LB* 1
19
2341161 PROP-WW2 (4.5)W/ADP.RING *112LB* 1
2331161 PROP-WDLS WDG II *80LB* 1
20 2091701 WASHER-PROP (LARGE) 1
21 2093101 NUT-PROP NYLOC,LG, MX101 3/8 SS 1
22 2262658 PIN-DRIVE 1" 3/16" S/S 1
23 2773806 STRAP, HOLD DOWN 1
24 2994961 BAG ASM, CABLE,ADPTR, 490537-2 *MKR-MI-1* 1
25 2994960 BAG ASM, CABLE,ADPTR, 490518-1 *MKR-MDI-2* 1
p
2297162 MANUAL ULTREX 1
p
2997163 QUICK REF/ INSTALL GUIDE, UTX 1
p
2297165 MANUAL-DISCLAIMER,DWNLOAD INFO 1
p
2394912 QCK REF.GUIDE, iP MICRO RMT BT 1
p
2394910 INSTRUC. SHEET, MICRO REMO 1
p
2294950 INSTRC-OBN & REMOTE PAIR 1
AA
HH
JJ
77
GG
DD
CC
EE
FF
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
1111
2323
1313
1414
1515
1212
1717
1010
1616
1818
