minnkota.johnsonoutdoors.com | 11 ©2023 Johnson Outdoors Marine Electronics, Inc.

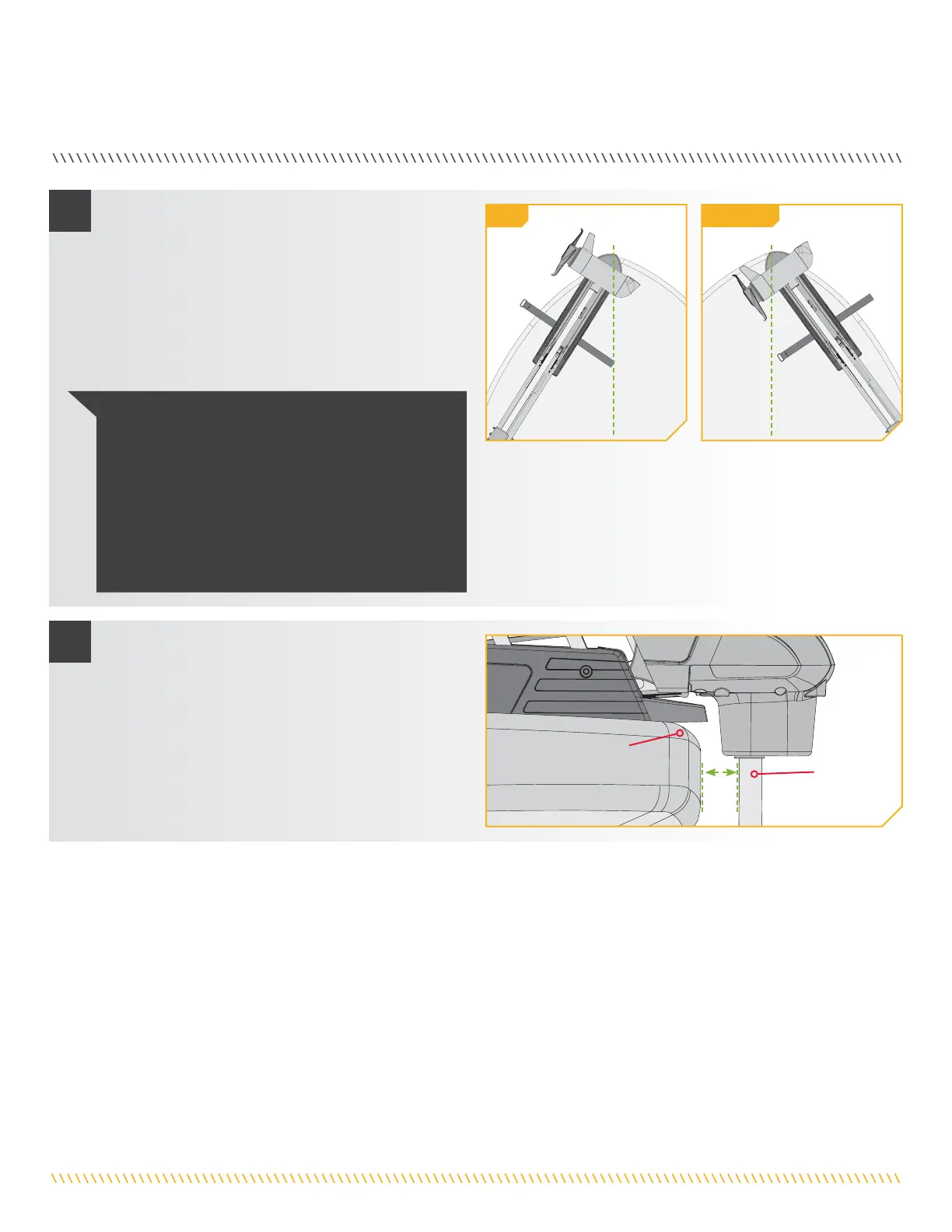

INSTALLING THE MOUNT
1-1/2" 1-1/2"
MinimumMinimum
GunwaleGunwale
ShaftShaft
c. The Mount can be installed on either the Port
or Starboard side of the boat based on personal
preference. Test the placement of the Hold-Down
Strap to be sure it can hold the Mount as placed.
The placement of the buckle on the Hold-Down
Strap either inboard or outboard is based on
personal preference. The hook and loop on the
fastener should be face down for the Hold-Down
Strap to function.
2
3
d. Check the placement with the motor in the deployed
position. With the motor in the deployed position,
make sure that the Shaft is 1-1/2" out past the
Gunwale of the boat. The lower unit must not
encounter any obstructions when stowed or deployed.
e. Check the placement of the Hold-Down Strap when
the motor is in the stowed and deployed positions
and adjust if necessary.
Port
Starboard
NOTICE: Check that the Motor can properly stow
and deploy at the intended mounting location. The
Mount should latch closed when deployed. A proper
deployment requires engaging the Pull Grip and Cable
when the Motor is stowed to unlatch the Mount. If the
latch on the Mount does not engage when deployed,
it could indicate that the Mount is not flat on the Boat
Deck. Use rubber washers to level the Mount on the
Boat Deck if the Mount is not latching when deployed.
To Next Page
