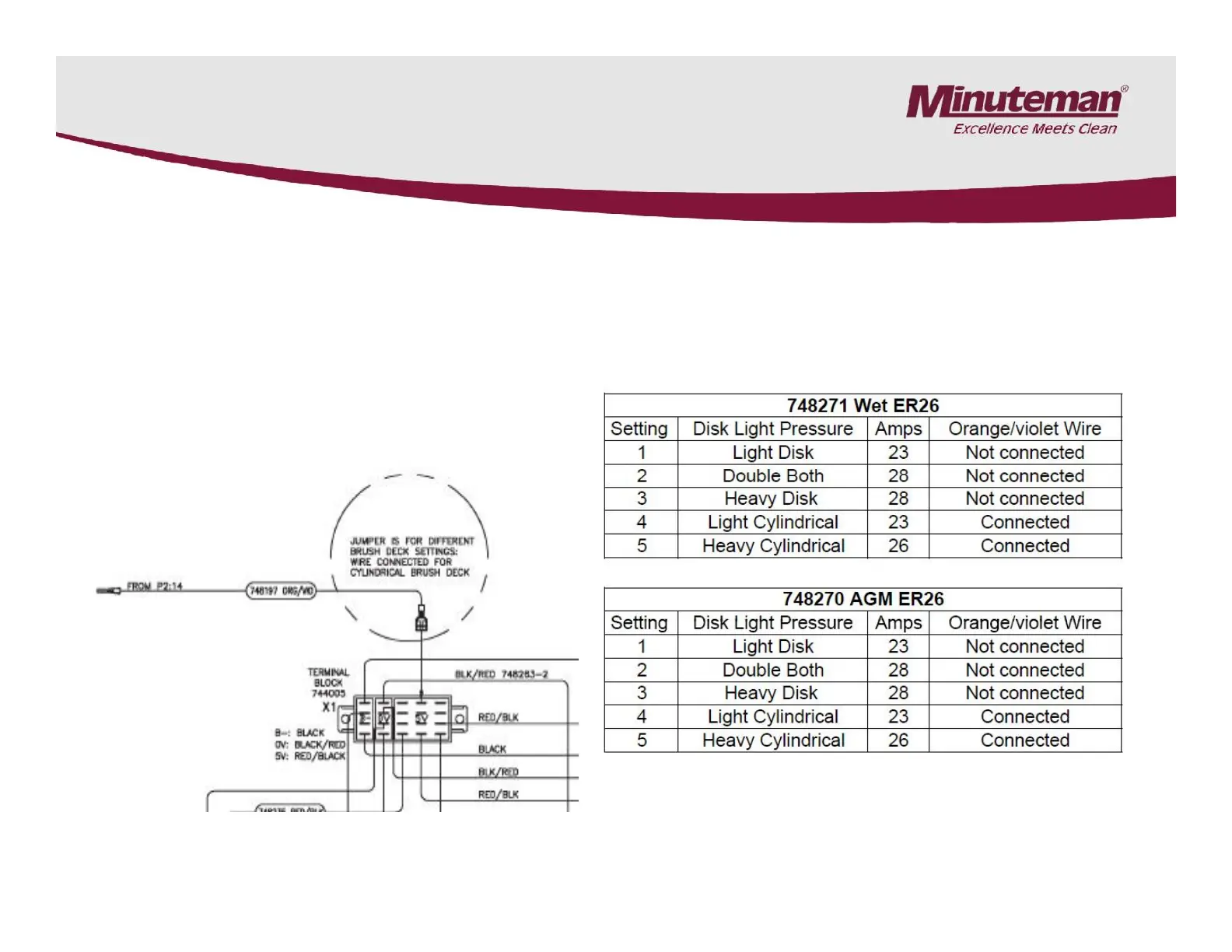

4.2 Brush Pressure Settings
The brush pressure range can be changed
when changing the type of deck on the ER26
and SC2426 models.
Connect the orange/violet wire into the
terminal block with red/black wire group for
cylindrical decks and unplug it for the disk
decks.
The terminal block is located below the Trio
controller on the ER26 and SC2426 models.
Brush Pressure Settings
