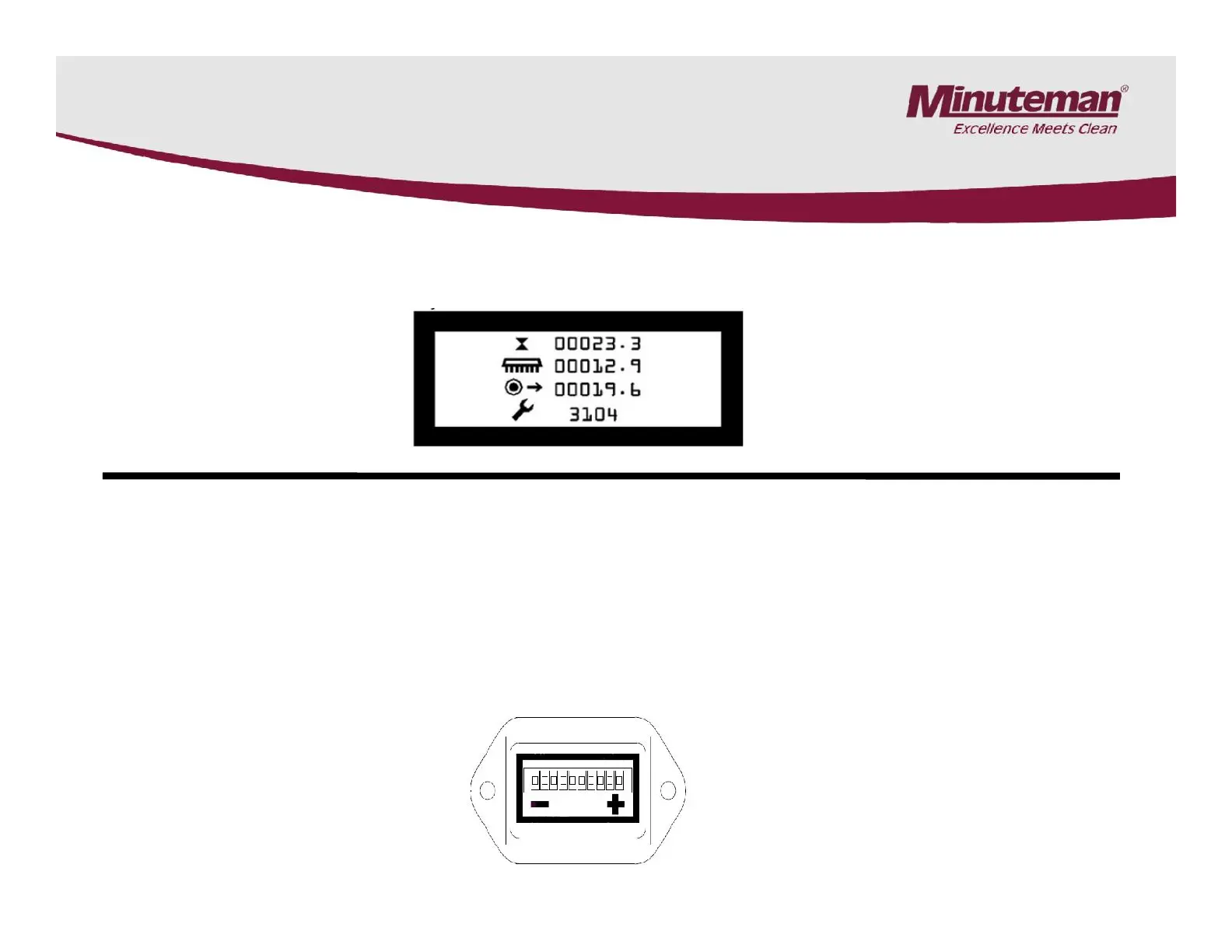

The model SC280000 Rider scrubber uses a LCD display mounted above the steering wheel which
indicates the error code when they occur. The will be displayed as a four digit code with a picture of
a wrench next it. The top three are the hour meters for Total Time, Brush Motors and Drive Motor.
5. Error Codes
The ER26, ER2832, SC2832E, SC2426P, ES2862 and CP2832 models uses a 10 light LED display to
indicate the battery condition and error codes. The battery condition will be displayed with 1 to 10
LEDS. 10 LEDs would be a fully charged battery one LED batteries are discharged.
When a error occurs 1 to 10 LEDS will flash indicating a specific error has occurred. There are two
aspects of the error codes.
A. How many LEDS are flashing
B. How many times it is flashing ( referred to as sequence)
