MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 44
Cell Guard Installation
Cell guards provide protection from the cell leads. Cell guards are shipped pre-assembled, a
left side (Figure 28) and a right side. To install, disassemble the front piece of the guard
from the middle piece. Position the middle and back pieces of the guard on the cell, sliding
the slots on the guard onto the socket head shoulder screws on the cell (Figure 29). Tighten
the two screws on the guard. Position the front piece of the guard onto the cell using the
socket head shoulder screws (Figure 30). Re-assemble the front piece to the rest of the
guard. Repeat on the other side

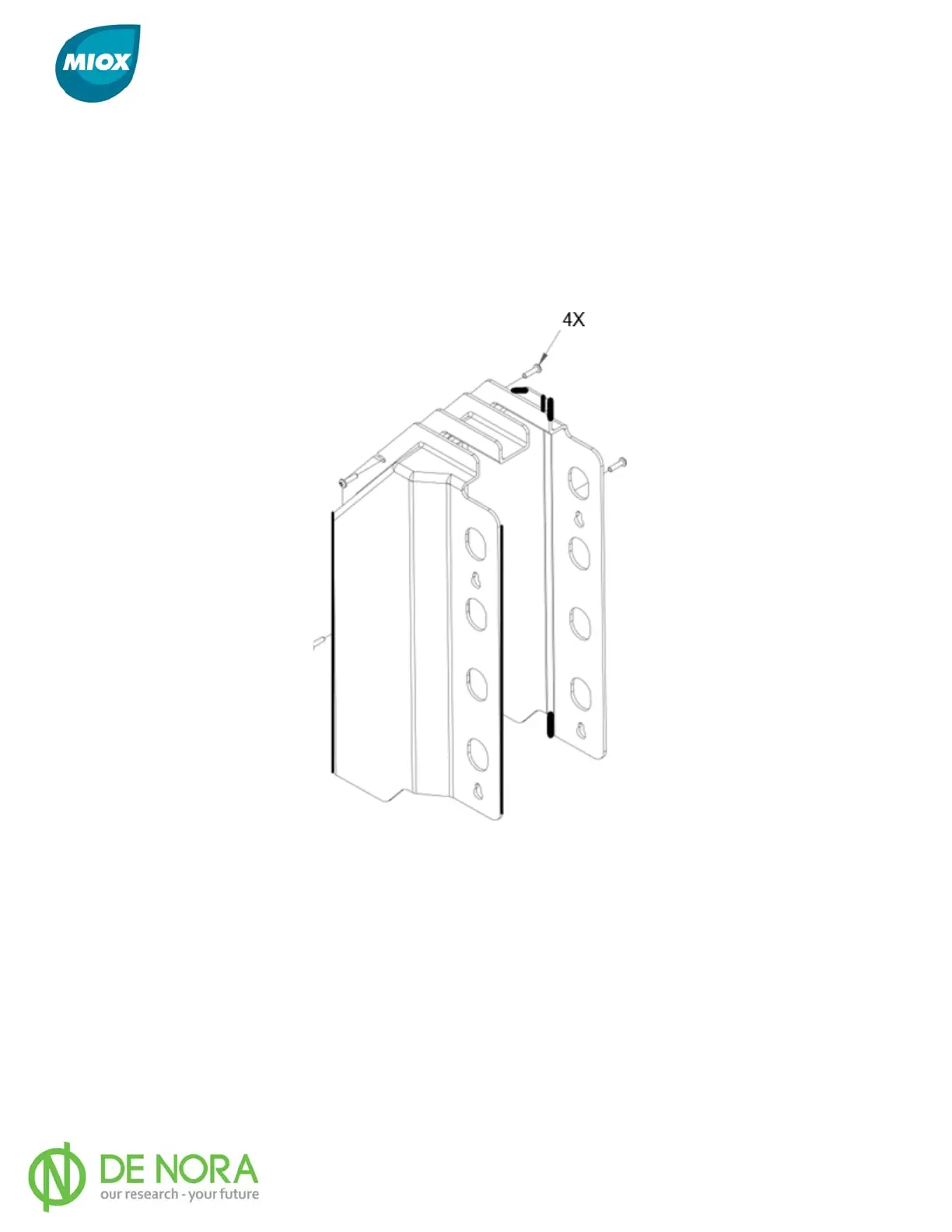

Figure 28 Cell Guard Pre-Assembly
