MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 8
Components of the System
The RIO Series OSG (Figure 1) must be installed by trained technicians. After installation
and system startup, the units operate automatically and self-diagnose.

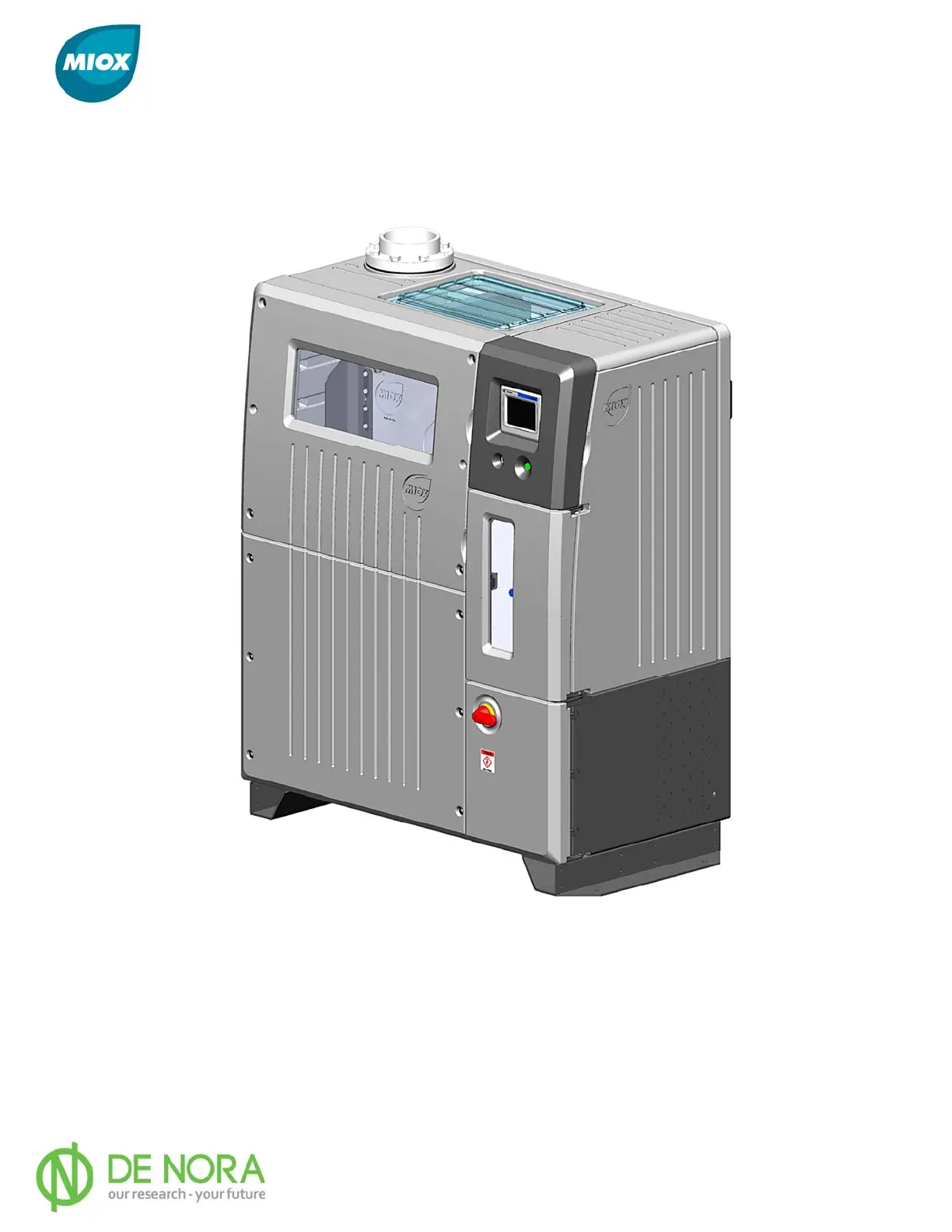

Figure 1 RIO Series On-Site Generator
Space Requirements
Appropriate floor-space must be identified to accommodate the OSG enclosure and
sufficient working space clearance (Figure 1-2). The enclosure is 62 in. (1.6 m) wide by 38
in. (1.2 m) deep by 69 in. (1.75 m) high. Front clearance is 48 in. (1.2 m), rear clearance
is 24 in. (0.66 m), and side clearance is 12 in. (0.30 m) from the edge of the feet.
