102

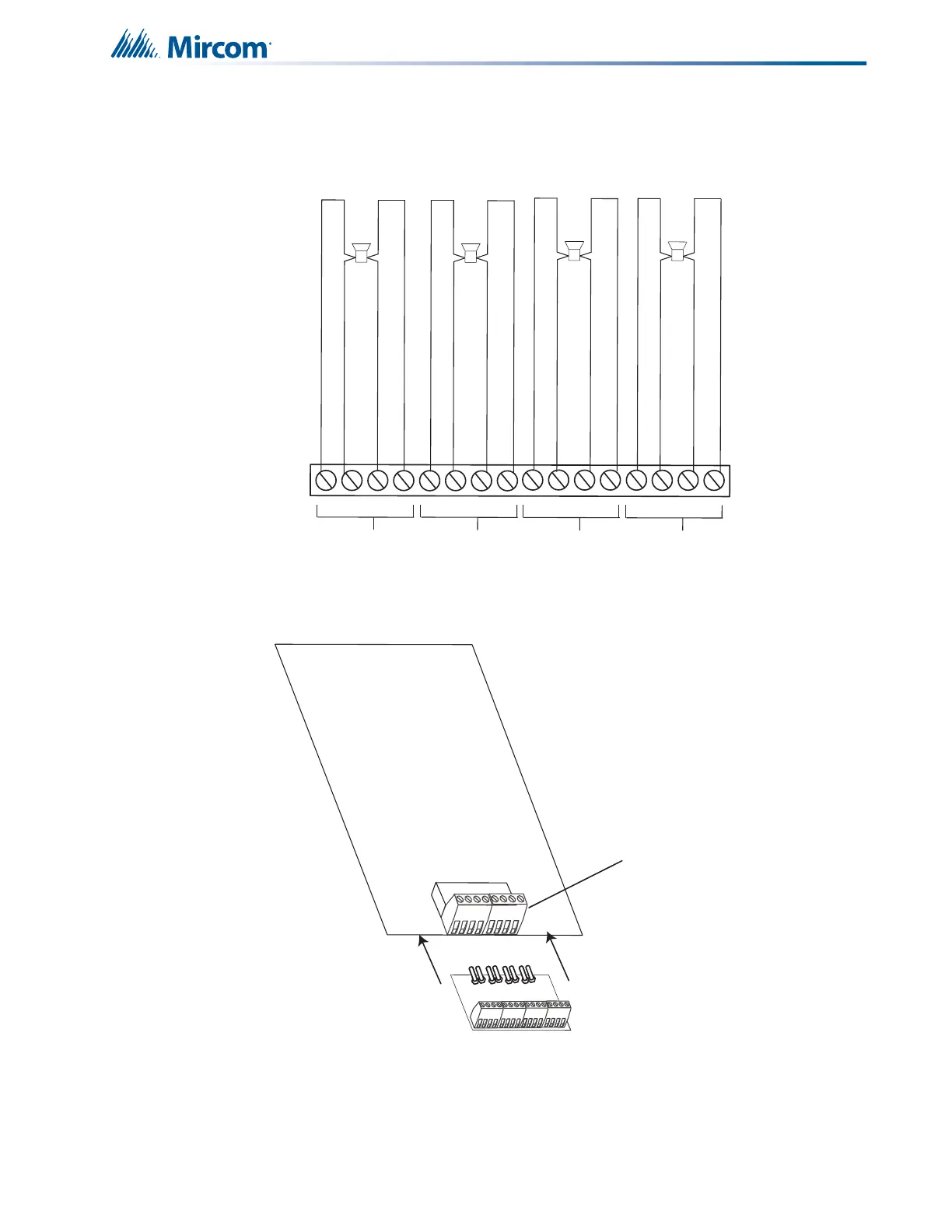

Figure 63 QAA-4CLAS Class A Converter For QAA-5230S-70/25 Amplifier
O4 +
O4 +
R4 +
R4 -
O4 -
O3 +
R3 +
R3 -
O3 -
O2 +
R2 +
R2 -
O2 -
O1 +
R1 +
R1 -
O1 -
O1 -
J1
J2
J3
J4
SPEAKER
SPEAKER
SPEAKER
SPEAKER
QAA-5230S-70/25 AMPLIFIER
QAA-4CLAS
REMOVABLE TERMINAL BLOCK
QAA-4CLAS
TERMINAL BLOCK
TO WIRE QAA-4CLAS, REMOVE TERMINAL FROM
QAA-5230S-70/25 AMPLIFIER, CONNECT TO QAA-
4CLAS AND SCREW DOWN. WIRE THE FOUR CLASS
A CIRCUITS TO THE 16 TERMINALS AS SHOWN IN
DIAGRAM AT RIGHT.
ALL CIRCUITS ARE POWER LIMITED.
15 WATTS MAX. PER ZONE.
NOTES:
1.
2.
3.
