8.0 Indicators, Controls, and Operation
Refer to Figure 43 below for LED indicators, control buttons, and switches locations.

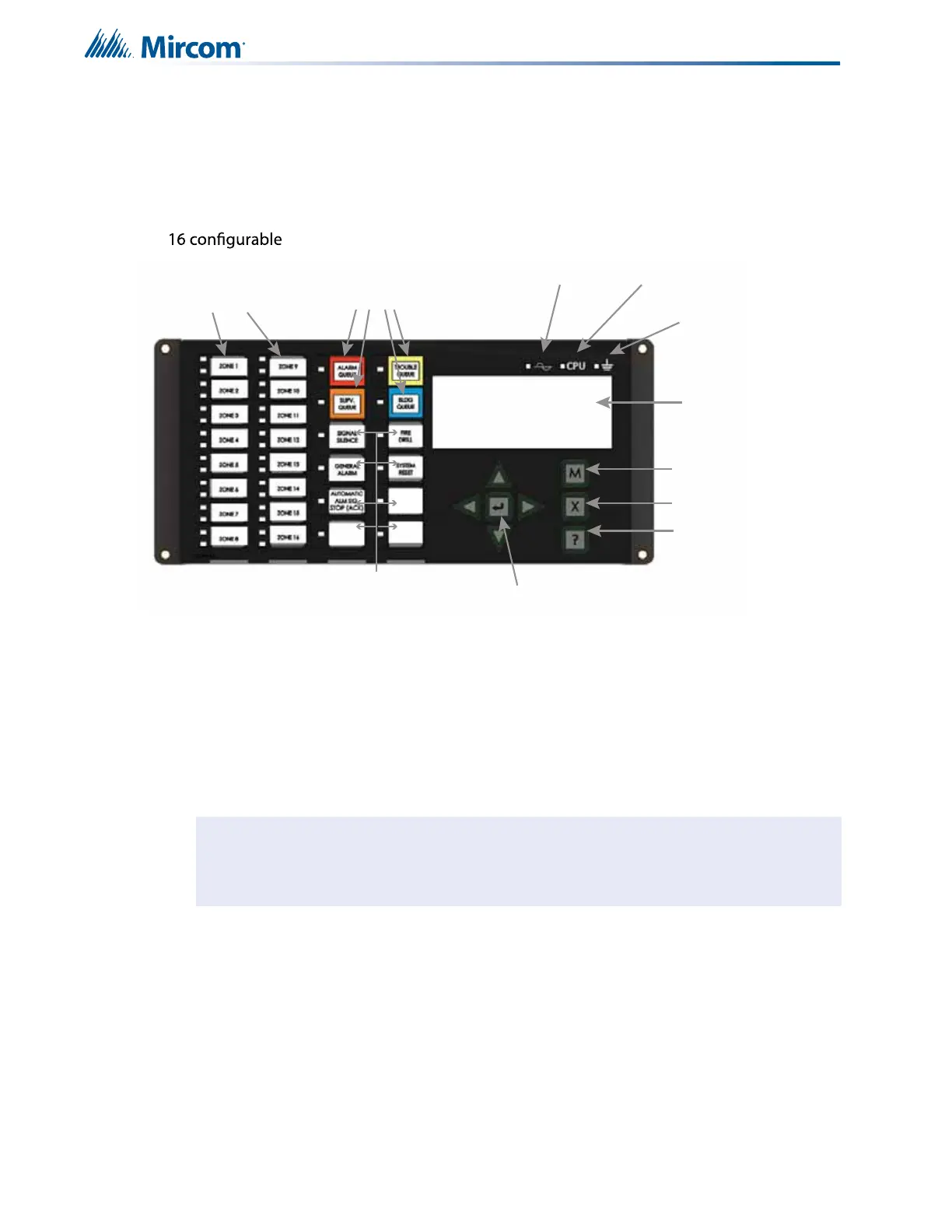

Figure 43 Indicators and Control Location
LED indicators are amber (trouble or supervisory), red (alarm), or green (AC On), and may
illuminate continuously (steady) or at one of two flash rates:
• Fast Flash: 120 flashes per minute, 50% duty cycle
• Trouble Flash: 20 flashes per minute, 50% duty cycle
Paper Labels for Buttons and Indicators
Buttons and indicators are supplied with paper labels. These labels slide into the plastic label
templates on the face of the panel. Paper labels allow for easy English / French selection and
custom-printed zone information.
Note: The General Alarm LED and pushbutton, and the General Alarm Cancel LED and
pushbutton, are active only on a system configured for “Two Stage.”
LAMP
TEST
bi-coloured zone
indicators and 16
trouble indicators
Queue controls and
indicators for Alarm,
Supervisory,
Trouble and Monitor
AC On
Indicator
CPU Fault
Indicator
Ground Fault
Indicator
LCD Display
4 lines
20 characters
Menu
Cancel
Info
Cursor buttons
and Enter button
Control and Indicators for Signal Silence,
General Alarm, General Alarm Cancel (Auto-
matic Alm Sig Stop (ACK)), Fire Drill, System
Reset, Lamp Test (Visual Indicator Test) and
Spare programmable Buttons
