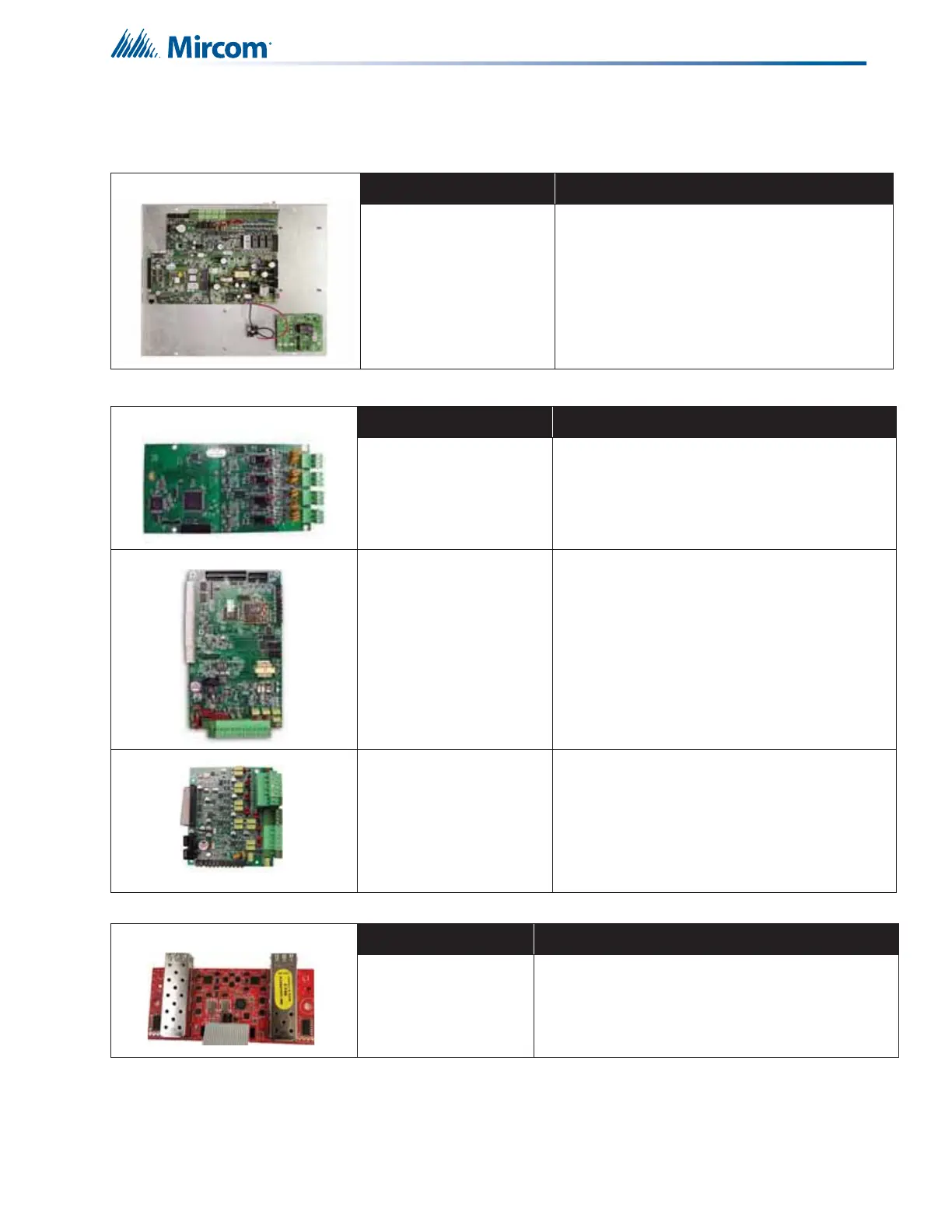

11.0 System Components for the Integrated Fire/Audio Cabinet
11.1 Network Fire Alarm
11.2 Network Controller Modules
11.3 Fiber Optics Module
Model Description
FX-4000MNS
Main network fire alarm board includes one
SLC and four Class A/B NACs. The main
board is mounted on a backplate which can
hold up to 9 internal adder modules. This
backplate mounts in the BBX-FXMNS
enclosure.
Model Description
FNC-2000
Provides network capability for the FleX-Net™
Fire Alarm panel. One module is required per
one network node panel. The FNC-2000 Fire
Network Controller module is mounted in
position 2 over the FX-4000MNS main board.
ANC-4000
Audio Network Controller module. The ANC-
4000 Audio Network Controller module is
mounted on a metal plate (which is packaged
with the FX-4000MNS) and then the plate is
mounted into BBX-FXMNS backbox in position
1 of the QMB-5000N Card Cage.
TNC-5000
Telephone Network Controller module. The
TNC-5000 Telephone Network Controller
module is mounted below the ANC-4000 Audio
Network Controller module and both are
mounted on a metal plate and then the plate is
mounted into the BBX-FXMNS backbox in
position 1 of the QMB-5000N Card Cage.
Model Description
FOM-2000-UM
Fiber Optics Module (Optional)
Connects to the FNC-2000 Fire Alarm Network
Controller Module and allows fiber optics cabling.
