81
Figure 46 below shows the FleX-Net™ fire alarm and audio shown within the Integrated Network
Fire/Audio cabinet as Node 2 and 3. Paging and telephone devices are hooked up to Nodes 2 and 3.

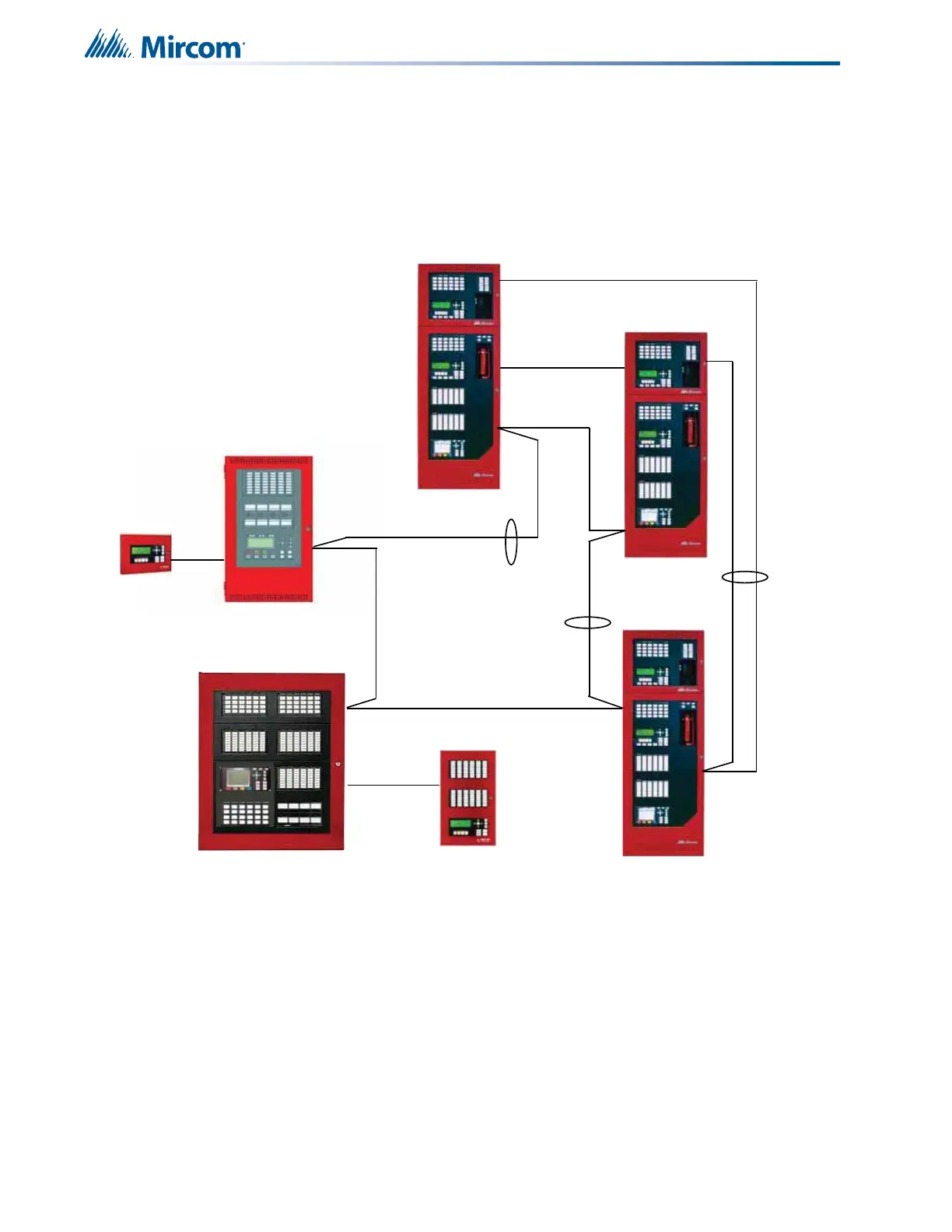

Figure 46 Typical FleX-Net™ Network System with Audio and Non-Audio Nodes
CACF
Node 1
Node 2
Node 3
Node 4
RAXN-4000LCD
in a BB-1003DR
RS-485
RS-485
RAXN-4000LCD
in a BB-1001DR
Node 5
FXMNS
FX-4009-12N in a BB-5008R
FX-4003-12N in a BBX-1024DSR
FXMNS
Optional
1 pair for Paging Audio
1 pair for Telephone Audio
1 pair for ARCnet Network
Class A Wiring
NOTE: Wiring for ARCnet Network, Audio and Telephone can be as
shown (3 pairs) or 1 pair as shown in previous Figure.
To Next Page
