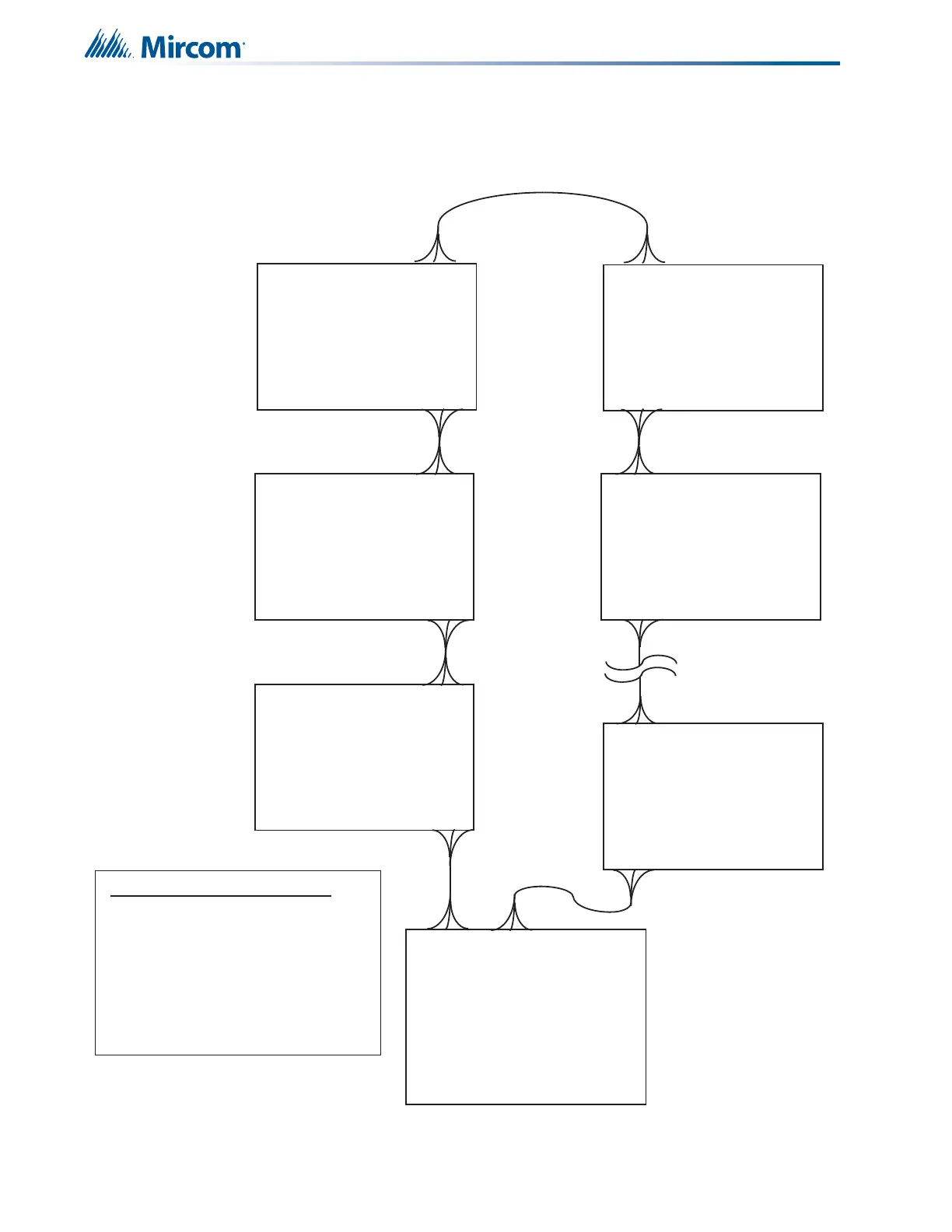

Figure 69 Audio Paging Bus Wiring
Paging
Bus Out
Paging
Bus Out
Paging
Bus Out
Paging
Bus Out
Paging
Bus Out
Paging
Bus Out
Paging
Bus Out
Paging
Bus In
Paging
Bus In
Paging
Bus In
Paging
Bus In
Paging
Bus In
Paging
Bus In
Paging
Bus In
ANC-4000
CACF
ANC-4000
ANC-4000
ANC-4000 ANC-4000
ANC-4000
ANC-4000
CLASS A WIRING
Node 1
Last Node
Node 6
Node 5
Node 4
Node 3
Node 2
S - +
S - +
Additional ANC-4000s
connected in between
AUDIO BUS SPECIFICATIONS:
10V, 50 mA Maximum
T o t a l c a b l e r e s i s t a n c e i s : 9 0 o h m s M a x
18 gauge twisted pair wire
Audio Bus is power-limited and fully
supervised.
