120

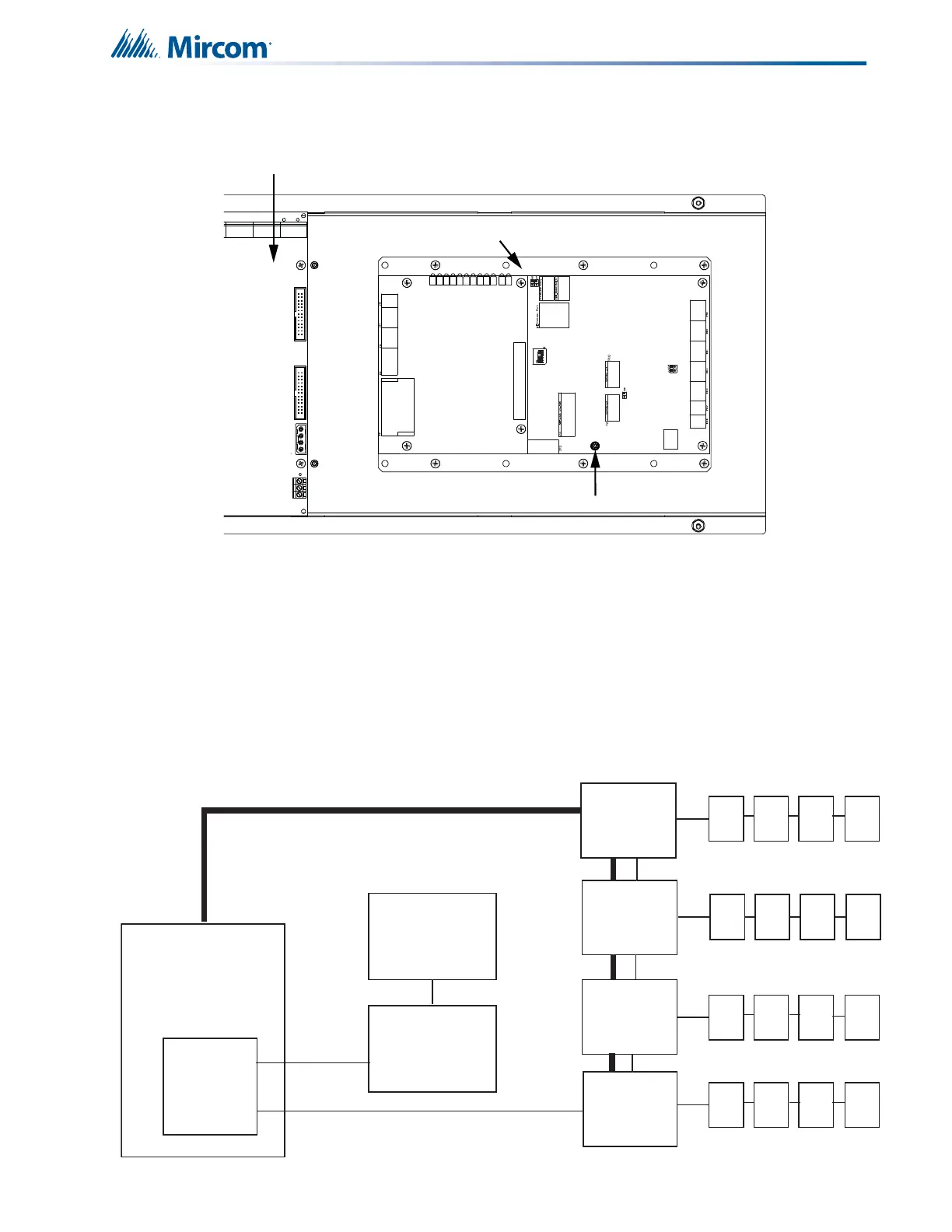

Figure 75 Mechanical Installation of the TNC-5000 within the BB-5008 and
BB-5014
31.2 Typical Addressable Telephone Set-up
The typical addressable telephone set-up is with an addressable fire alarm system using the
TNC-5000 and from the TNC-5000 to the Master Telephone (QMT-5302N(V)). The selector
panels (QAZT-5348DS or QAZT-5302DS) are connected to the Master Telephone by cable
only. The MIX-M500FP(A) Control Modules are connected to the addressable loop from the
FX-4000 and to each other and the Master Telephone. Remote telephones are connected to
the control modules.
Figure 76 Typical Addressable Telephone Set-up
Main re alarm board
TNC-5000 ANC-4000
Mounting plate
Pin
TTTT
TTTT
TTTT
TTTT
Remote Telephones
Remote Telephones
Remote Telephones
Remote Telephones
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
QMT-5302N/V
ADDRESSABLE
MASTER
TELEPHONE
TNC-5000
TELEPHONE
NETWORK
CONTROLLER
MODULE
QAZT-5348DS or
QAZT-5302DS
ADDRESSABLE
TELEPHONE
SELECTOR
FX-4000
FIRE ALARM PANEL
Addressable Loop
To Next Page
