3.2 General Chassis Installation

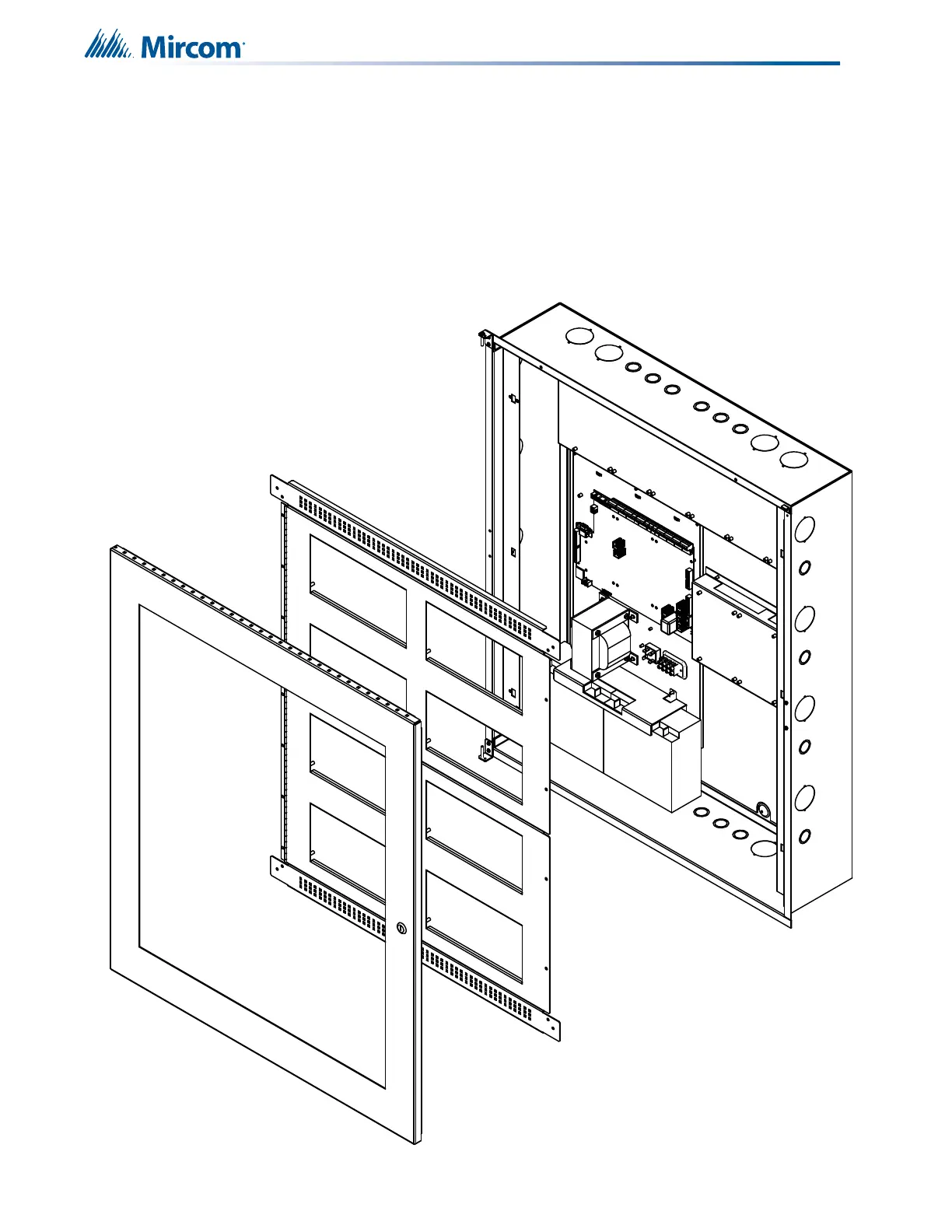

1. Group the incoming wires through the top of the enclosure to prepare it for wiring the
modules. Do not run the wires in-between the modules since it could cause a short
circuit.
2. Use a wire tie to group wires for easy identification and neatness.
3. Be sure to connect a solid earth ground (from building system ground / to a cold water
pipe) to the chassis earth ground mounting lug, and to connect the earth ground wire
lugs from the main chassis to the ground screw on the backbox.
