21
3.3 Module Mounting Locations
The FX-4003-12N or FX-4017-12N Main Chassis come pre-assembled with a main fire alarm
board. Install the adder modules of different types as shown in the following diagrams.

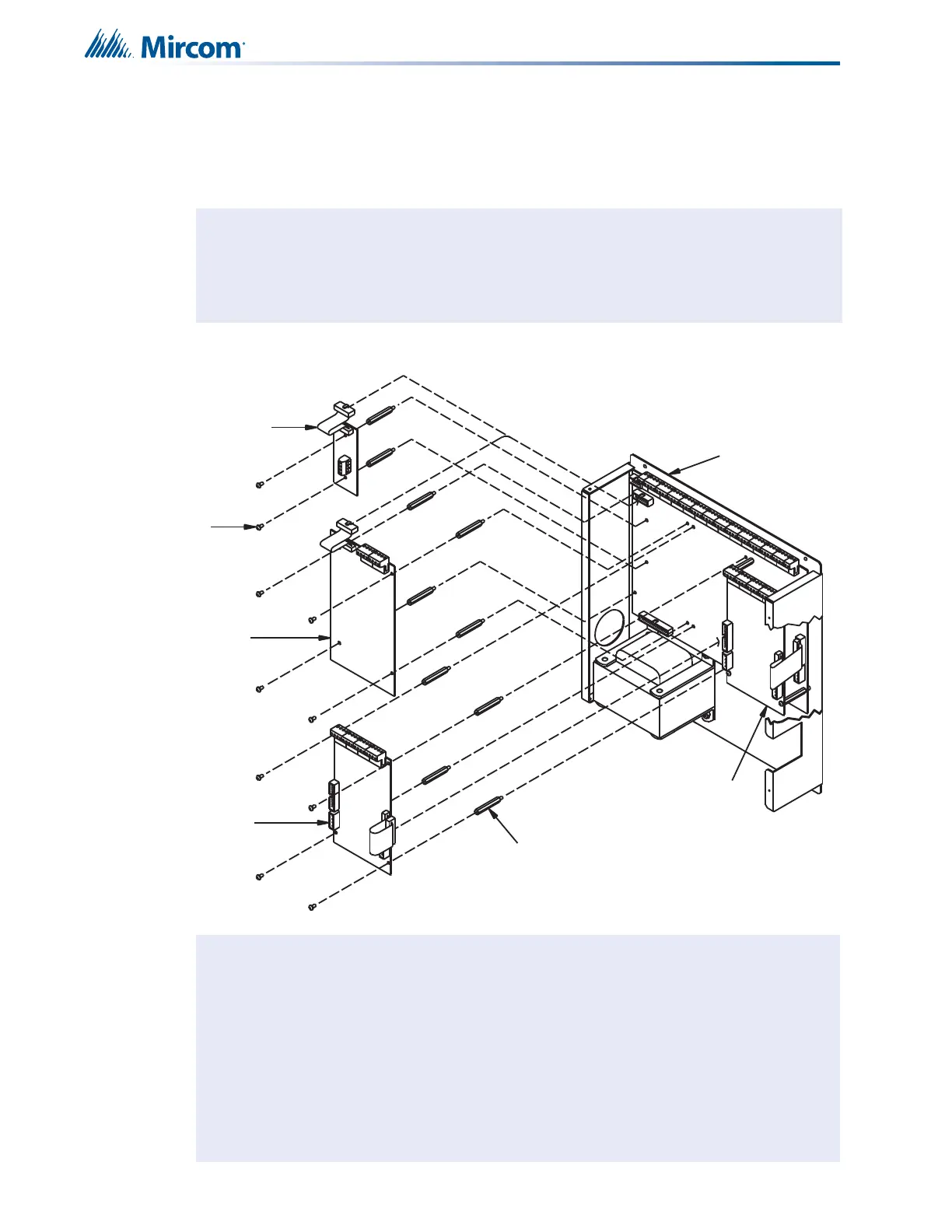

Figure 6 Module Mounting Locations View #1
Notes: For many adder modules to enable communication from the main module to all of the
adder modules, it is necessary to add a continuity jumper on the last adder module in a
chain (see the appropriate module settings section to verify the location of the continuity
jumper on a particular circuit adder module). Only the last circuit adder module should
have a jumper plug on its continuity jumper; all others must be left without a jumper plug.
1. Front plate is not shown.
2. Position reserved for PR-300 or UDACT-300A.
3. Other circuit adder modules may include:
FNC-2000
DM-1008A Detection Circuit Adder Module
SGM-1004A Signal Circuit Adder Module
RM-1008A Relay Circuit Adder Module
ALCN-960MISO and ALCN-960D Quad Loop Adder Modules
ALCN-4792MISO and ALCN-792D Quad Loop Adder Modules
MODEL: FX-40XX-12N
MAIN CHASSIS
(SEE NOTE 1)
SCREW
#6-32 x 1 1/2"
M/F HEX SPACER
(SEE NOTE 2)
(SEE NOTE 2)
(SEE NOTE 3)
OTHER CIRCUIT ADDER
#6-32 x 1 1/4"
(SEE NOTE 3)
MODULE
PR-300 CITY TIE MODULE
OTHER CIRCUIT ADDER
UDACT-300A
DIALER MODULE
FNC-2000 or
