Mircom FleXNet FX-4000 User Manual

62
6.7 Relay Module (RM-1008(A)) Terminal Connections
Relays are available as shown below.

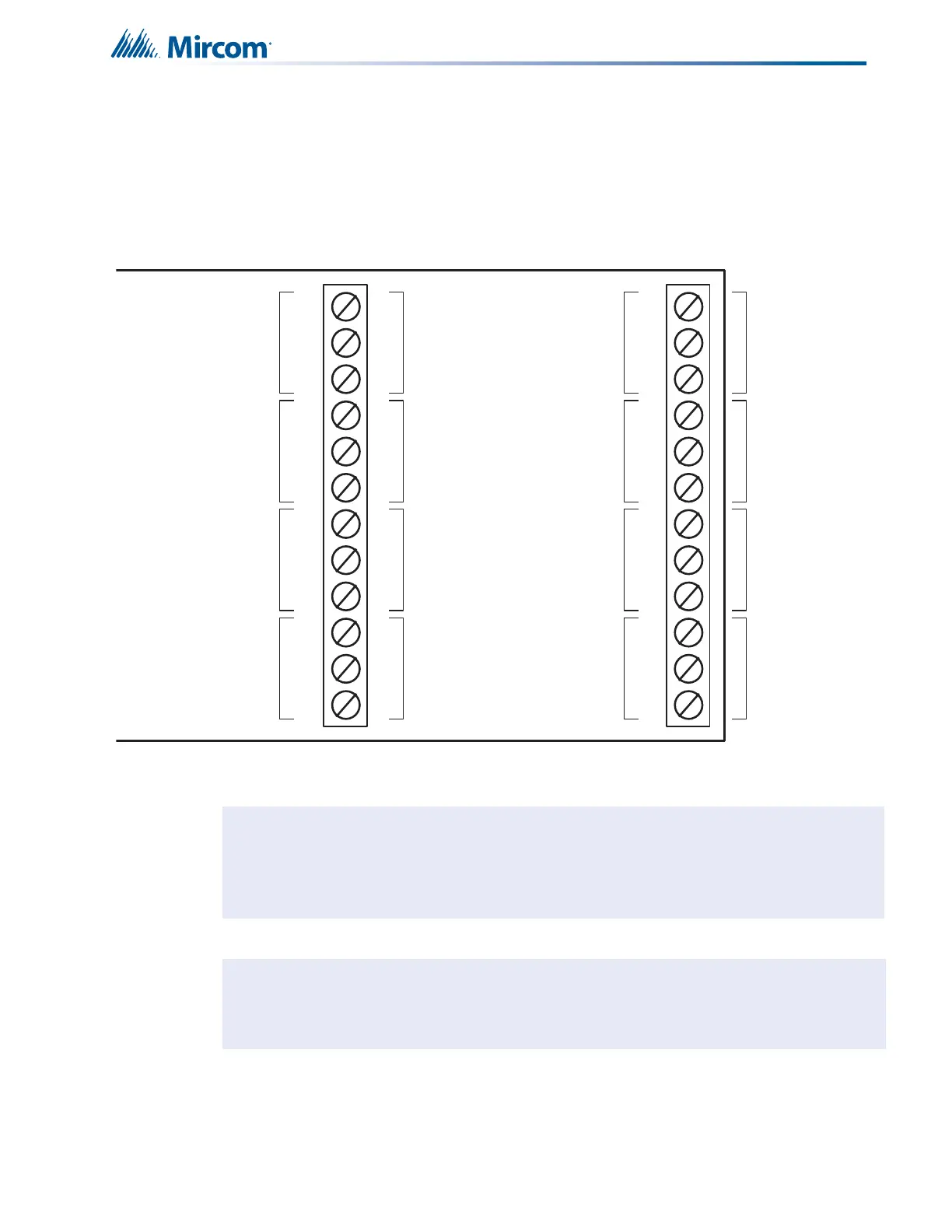

Hardwire Relay Module Terminal Connections
Notes:
• All relay circuits are power limited and must use type FPL, FPLR, or FPLP power limited
cable.
• All relay circuits must be connected to a listed power limited source of supply.
Attention: Do not connect 120 VAC directly to these relays.
AUX RELAY 1
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 5
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 6
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 7
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 8
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 2
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 3
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 4
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 1
RLY 5
RLY 6
RLY 7
RLY 8
RLY 2
RLY 3
RLY 4
RM-1008A Relay Module
COM
COM
COM
COM
NC
NC
NC
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
NO
NO
NO
i
!
