the QMB-5000N (inside the BBX-FXMNS or Integrated Fire/Audio Cabinet) to the IN
connector at the top left corner of the QMB-5000B Motherboard. Connect cable MD-525 from
the QMB-5000B Motherboard (connection marked OUT in the top left corner) to the next
expansion audio cabinet QMB-5000B Motherboard (connection marked IN) if another audio
cabinet is used. Daisy chain all other expansion audio motherboards used, up to a total of
three.
16.1 QPS-5000N Power Supply Connection
Two jumpers are provide as shown in figure below for 120 VAC connection. For 240 VAC
application, remove both jumpers and replace one jumper between the two middle terminals.
The two terminals on the right are N (neutral), L (live) for AC voltage connection. The three
terminals on the left are connected from the QMB-5000N motherboard as orange-white-
orange (left to right) in that order.

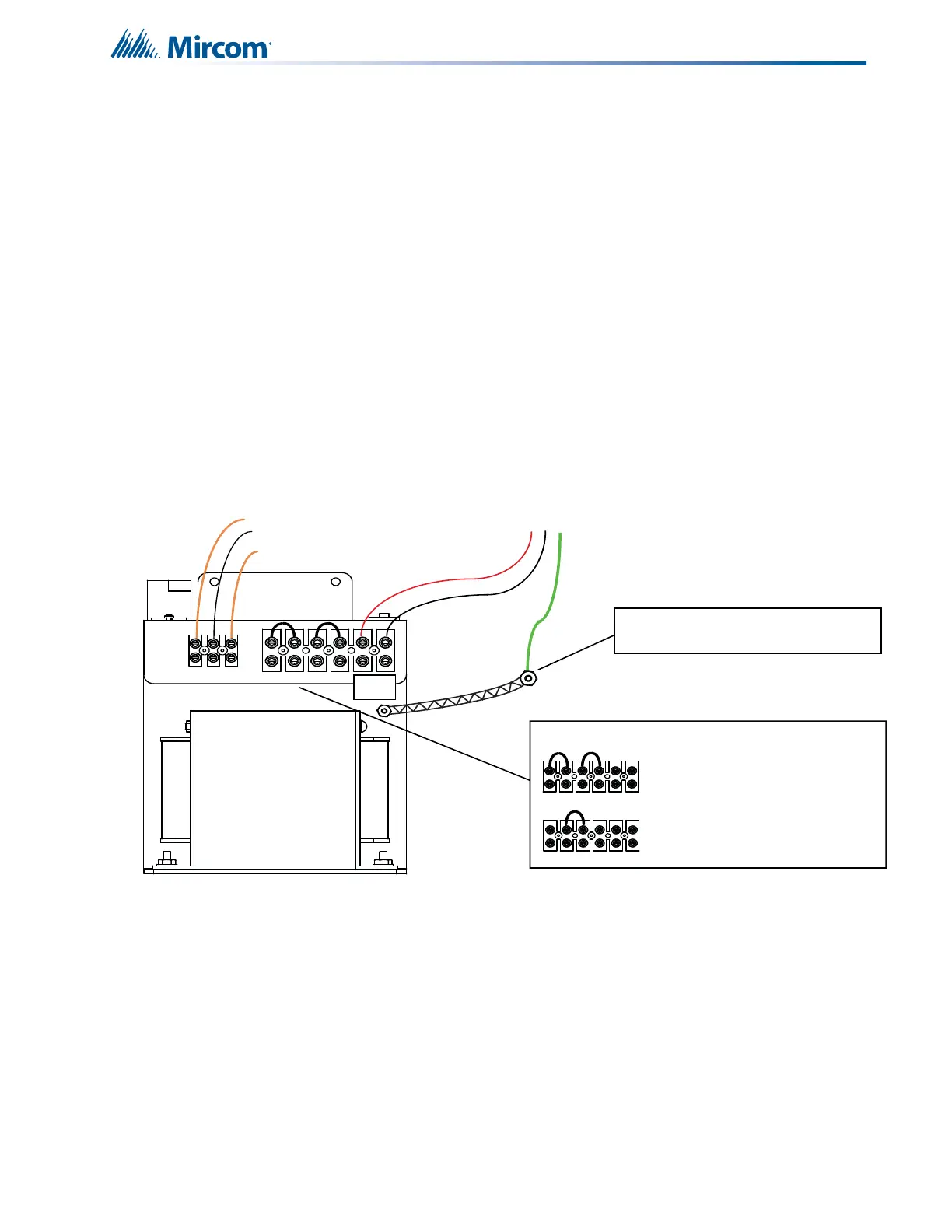

Figure 54 QPS-5000N Power Supply Wiring Diagram
Orange- White-Orange
Wires connected to
QMB-5000B Motherboard
120 VAC or
240 VAC
Live (Black)
Ground
Earth Ground stud in QBB-5001(R) Backbox
Neutral (White)
Connect AC ground to Earth Ground stud
located in the QBB-5001(R) Backbox.
L N
L N
L N
QPS-5000N
120 VAC Select
120/240 VAC SELECTION
OR
240 VAC Select
Default Jumper Positions
Discard unused Jumper
Ground Braid
To Next Page
