Mistral GY4100 - Technical Specifications

14
CAUTION: Verify that the following conditions
are met before commencing work.
1. The oil tank has been lled with suicient
chain oil and the lubrication system has been
checked.
2. The chain is tensioned.

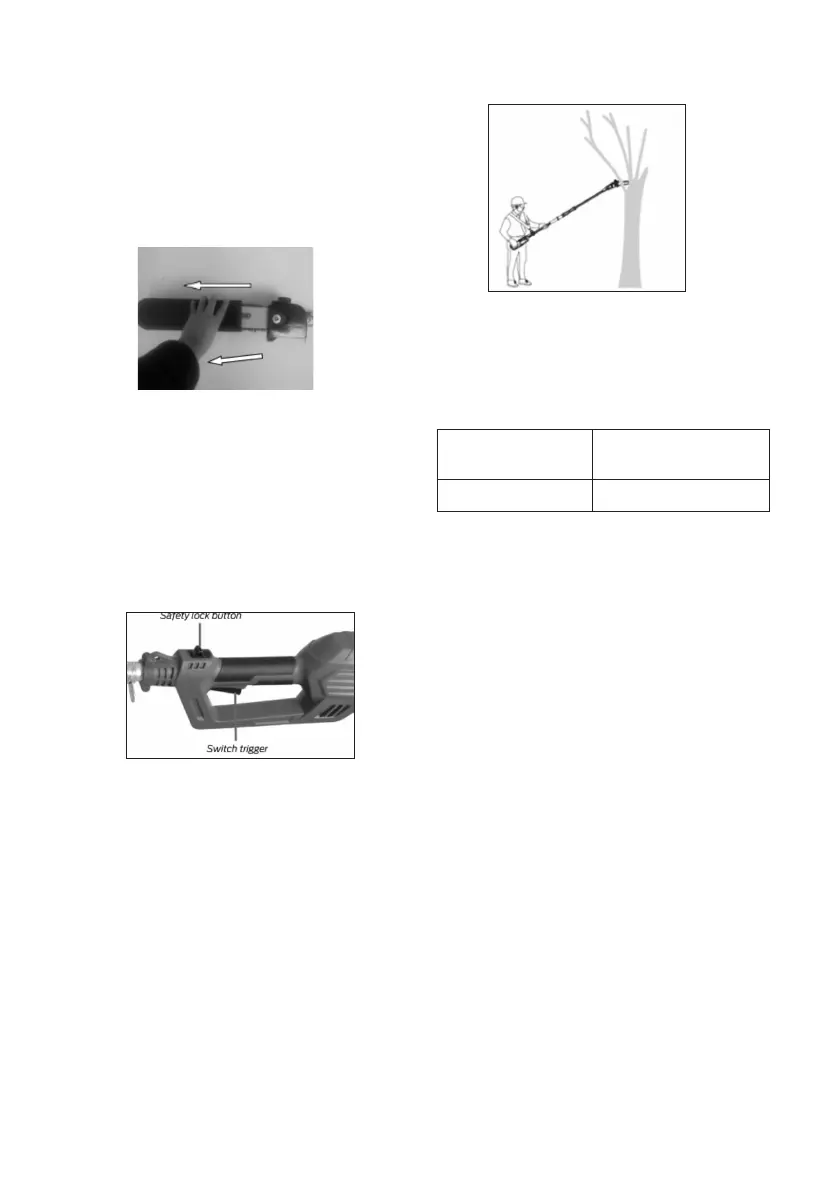

REMOVE THE GUIDE BAR AND CHAIN
COVER(FIG.15)
Fig.15
STARTING THE CHAIN SAW
1. Hold the main handle of the Chain saw with
one hand and the other hand hold assistant
handle.
2. Push the safety lock buon backwards
and press the switch trigger, the Chain saw
starts(Fig.16).
3. Release the safety lock buon.
Fig.16
SWITCH OFF THE CHAIN SAW
1. Release the switch trigger.
2. Gather up the guide bar and chain cover.
PRUNING(FIG.17)
1. Make sure the tool is running at full speed
before making a cut.
2. Hold the tool rmly in place to avoid possible
bouncing or sideways movement of the tool.
3. Guide the tool through the branch using light
pressure. When cuing heavy branches,
where a partial cut may splinter and damage
the tree, proceed as follows:
- Make the rst cut 150mm from the tree trunk
on the underside of the limb. Use the top of
the guide bar to make this cut.
- Cut one third through the diameter of the limb.
Then cut down from the top.
Fig.17
Technical specications
Rated Voltage/
Frequency:
230-240V~50HZ
Rated Power 1200W
Chain Saw
Bar & Chain: 10"
Chain Speed: 8 m/s
No Load speed:5200/min
Oil reservoir capacity: 120ml
Hedge Trimmer
Cuing length: 410mm(16'')
Cuing Dia: 20mm
No Load speed: 1900/min
Adjustable head position:-45°~90°(5 level)
Grass Trimmer
Cuing length: 380mm
No Load speed: 5200/min
Brush Cuer
Cuing length: 230mm
No Load speed: 5500/min
NOTE: As a result of continual improvements, the
design and specications of the product within
may dier slightly to the unit illustrated on the
packaging.
