MiTAC Maestro 830 - Page 16

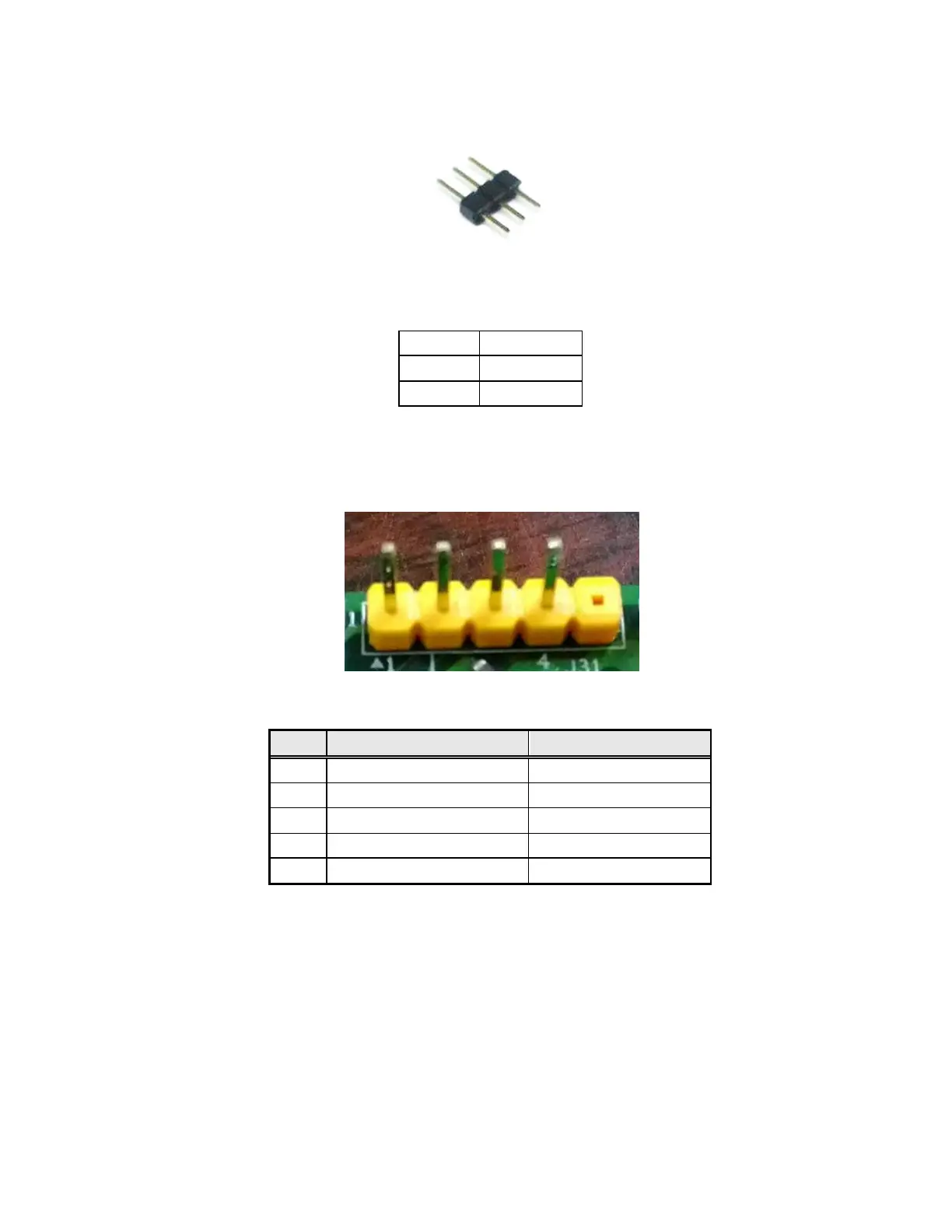

CMOS Clear Header
F i gu re 11 CMOS Clear Heade r
CMOS Clear
1-2
Clear CMOS
2-3
Normal
T A B L E 11 CMOS C LEAR BEHAVI O R
DMIC Header
F i gu re 12 DMIC Cable pin-out
Pin
Signal Name
Description
1
VCC
Power
2
DMIC_DATA_R
DMIC DATA
3
Ground
Ground
4
DMIC_CLK_R
DMIC CLOCK
5
KEY
NO pin
T A B L E 12 DMIC C ABLE SIGNAL S
