MiTAC Maestro 830 - Page 17

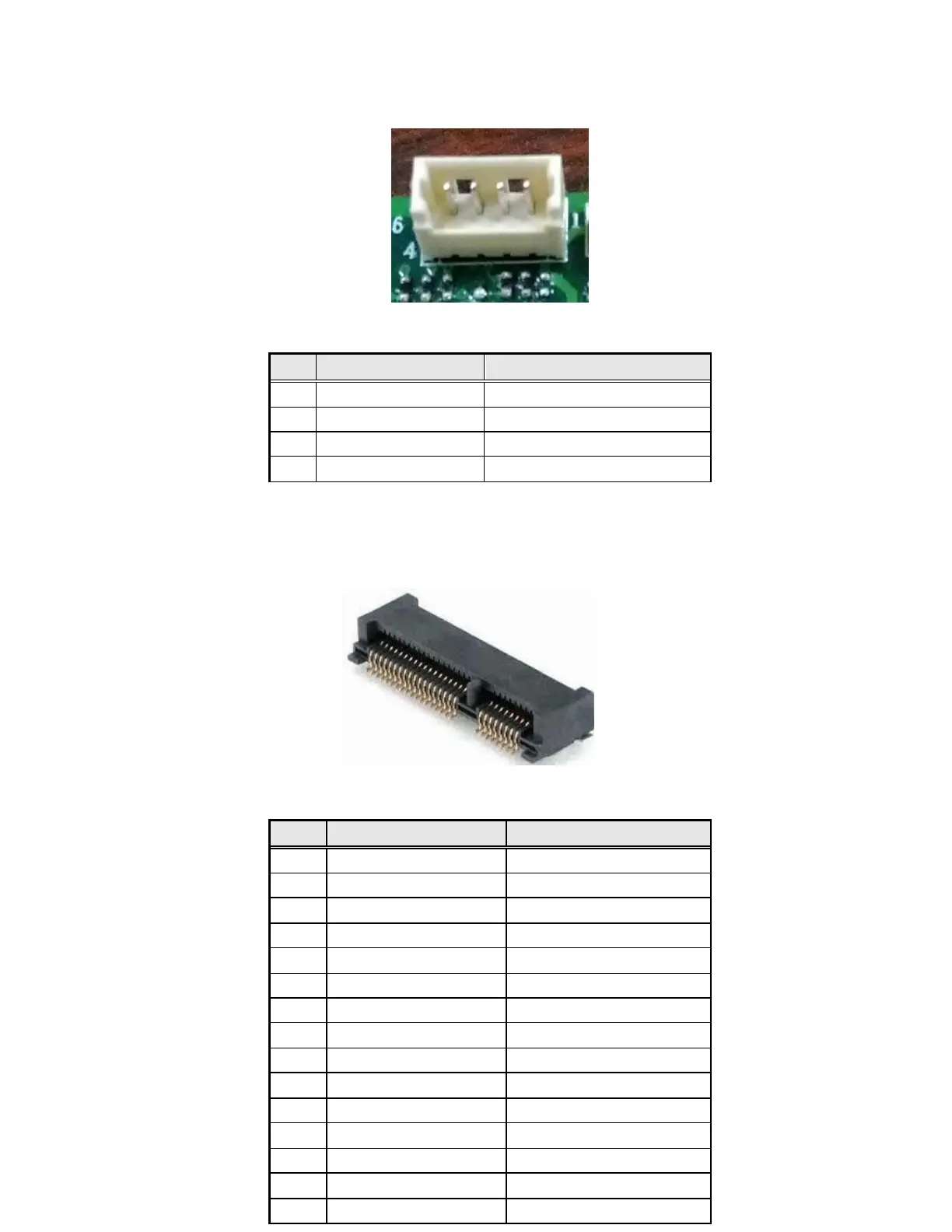

Ambient Light Sensor header
F i gu re 13 Ambi e nt Light Sens or header pin-out
Pin
Signal Name
Description
1
VCC3_HDMI
Power
2
Ground
Ground
3
Sensor_CLK
Front SW/LEDs CLOCK
4
Sensor_DATA
Front SW/LEDs DATA
T A B L E 13 A MBIENT L IGH T S ENSOR C ABLE SIGNA LS
MiniPCIe slot
F i gu re 14 MiniPCI e slot For WLAN pin-ou t
Pin
Signal Name
Description
1
WAKE-
Wake up
2
3VSB
Power
3
NC
NC
4
Ground
Ground
5
NC
NC
6
V_1P5
Power
7
CLKREQ_WLAN-
CLKREQ
8
NC
NC
9
Ground
Ground
10
NC
NC
11
PCH_100M_WIRELESS-
CLOCK(negative)
12
NC
NC
13
PCH_100M_WIRELESS
CLOCK(positive)
14
NC
NC
15
Ground
Ground
