About EX Controller

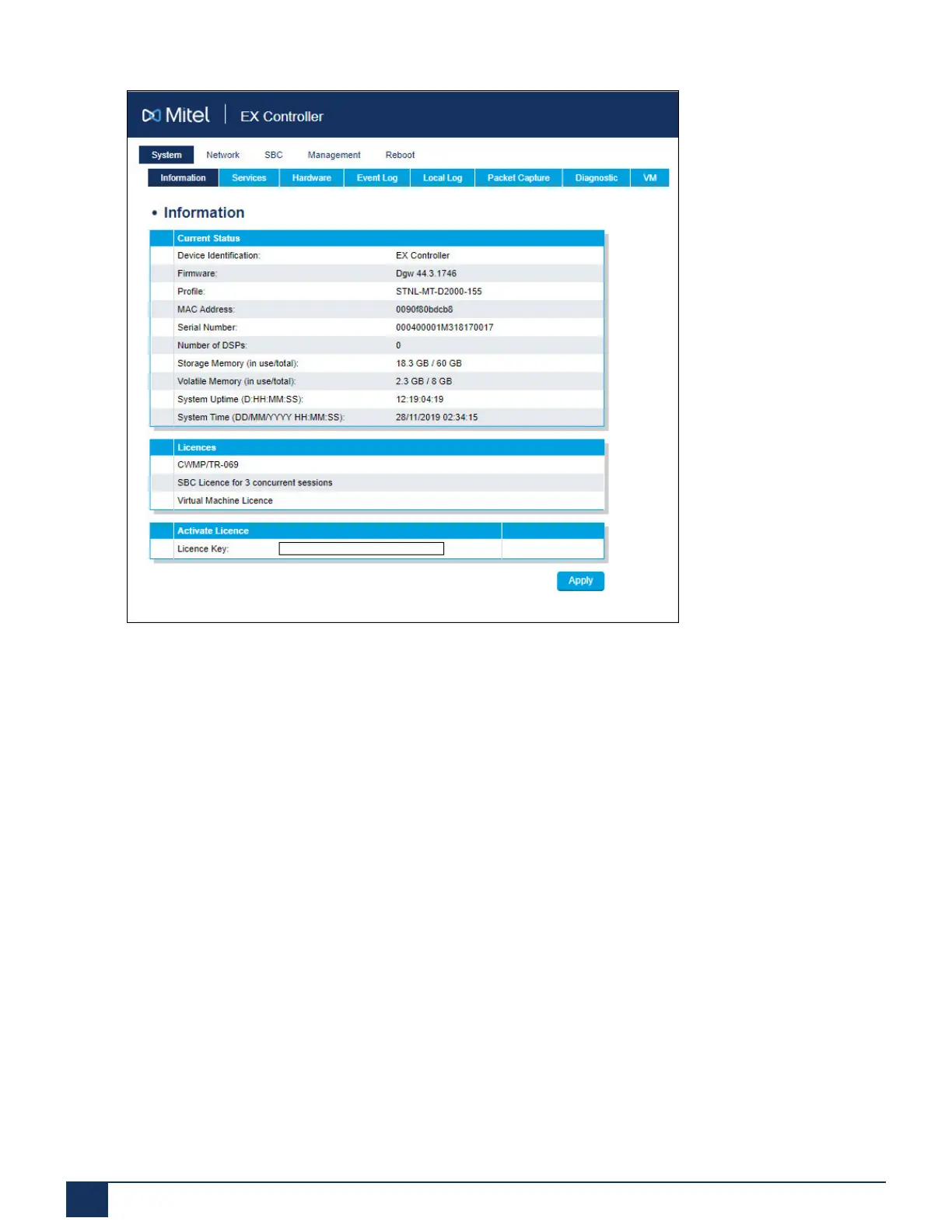

Figure 5: EX Controller Web GUI Home Page

2.4 Supported Hardware Configuration

The EX Controller has eight slots for accommodating the following cards:

• 1 port PRI (T1/E1) card

• 1 DSP card (required one per chassis when using an FXS or FXO card)

• 4 port FXS card

• 4 port FXO card

2.4.1 Sample Configuration

A sample EX Controller configuration has:

• 2 PRI cards

• 1 DSP card

• 4 FXS cards (providing 16 FXS ports)

• 1 FXO card (providing 4 FXO trunks)

13 EX Controller Installation and Administration Guide
