Configuration
50003510 Revision A 59
SX-200 SPINE Bay
The SX-200 SPINE is available as a single (6 slot) or dual (12 slot) configuration. Each SPINE
contains one Power Module, and up to six peripheral modules. The first SPINE also contains
a Control Module II (with a 1 km FIM).
The SPINE Peripheral Bay can be located up to 1 km from the control node.
Components of the SPINE include:
Control Module II - interfaces the peripheral modules with the Main Control Card in the control
cabinet via its Fiber Interface Module.
Interface Modules - interface trunks and peripheral devices, such as telephones, SUPERSET
telephones, and datasets, into the system.

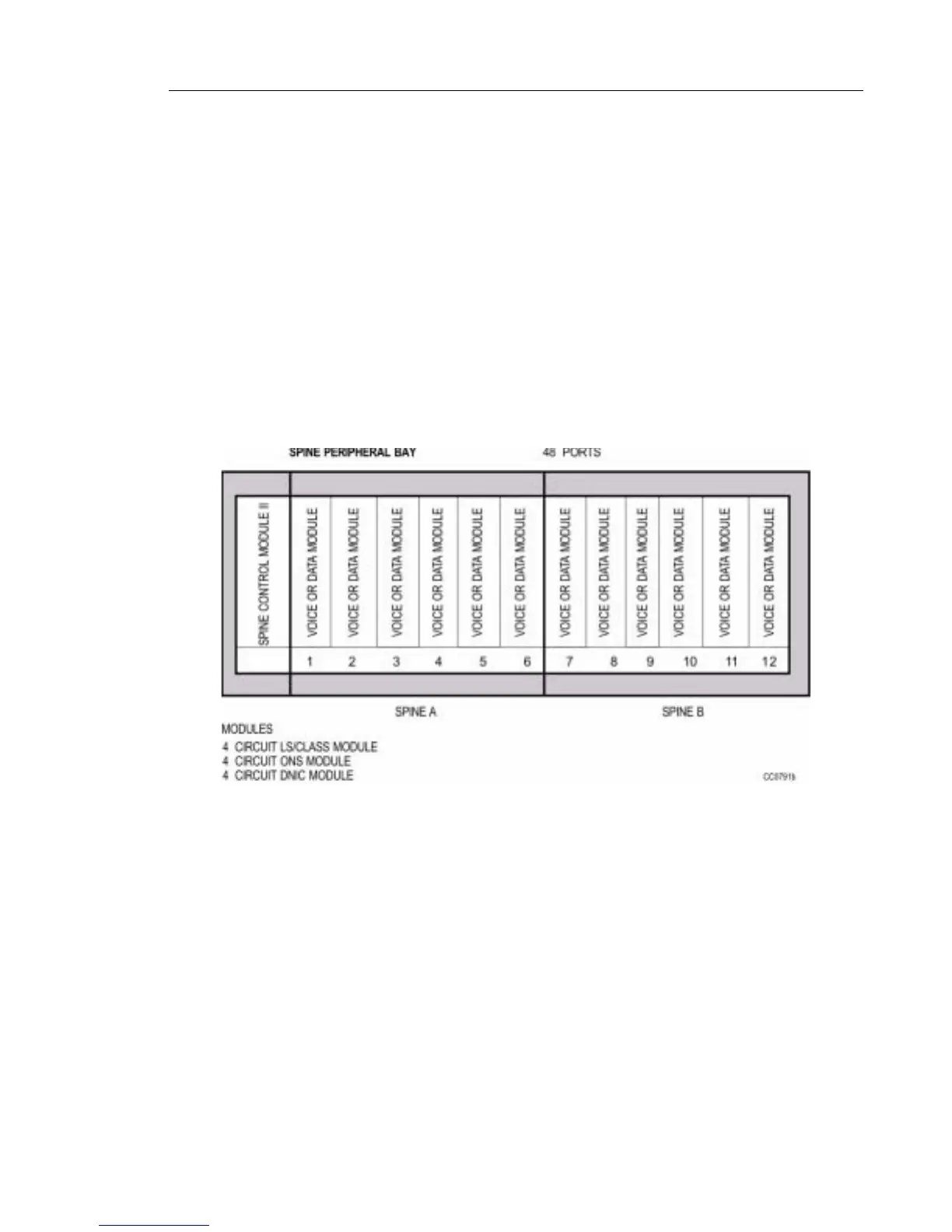

SX-200 SPINE Configuration
