DESCRIPTION
U

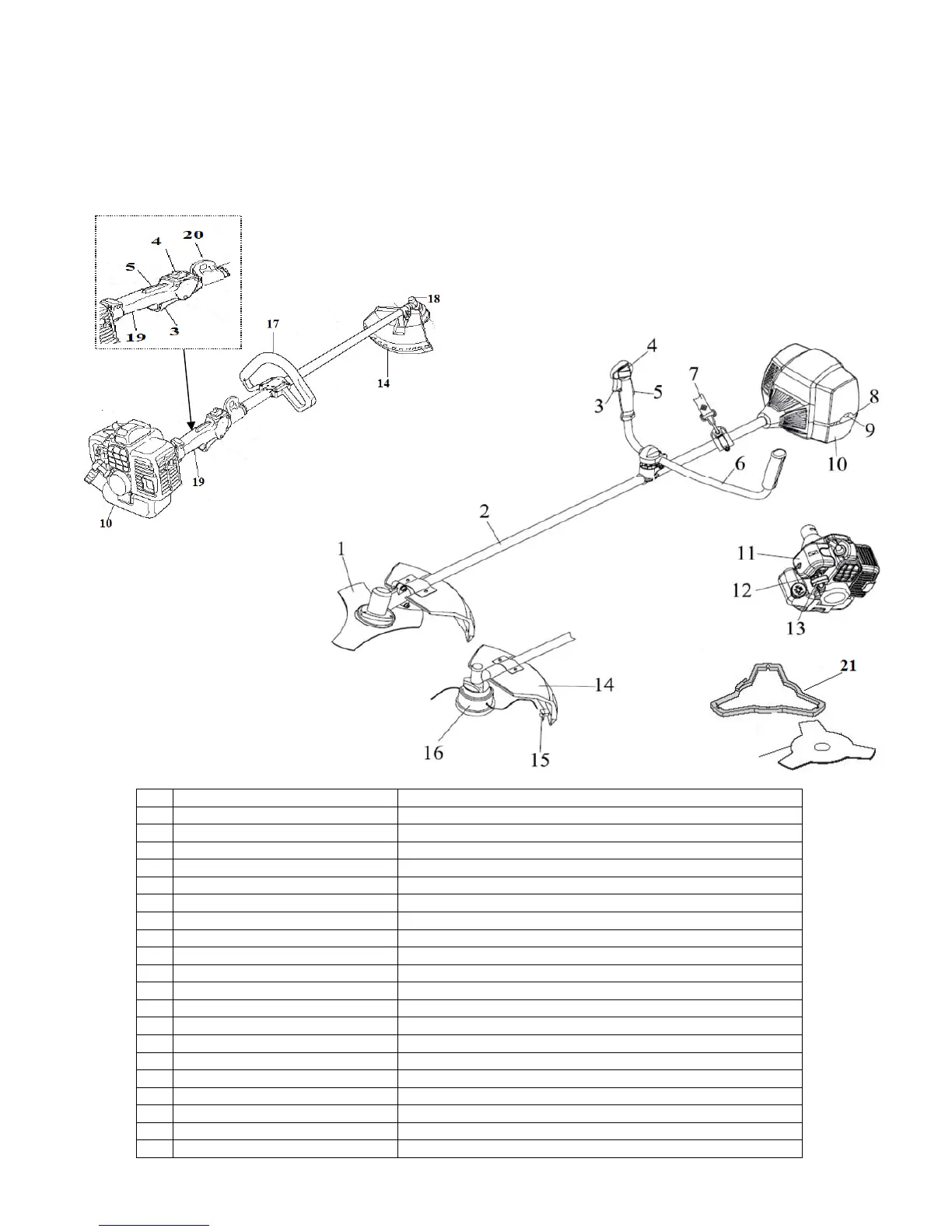

1 BLADE 3 Point blade for grass, weed or brush cutting applications.
2 DRIVE SHAFT Contains the drive shaft.
3 THROTTLE TRIGGER Spring loaded to return to idle when released.
4 IGNITION SWITCH Slide switch, forward to run, back to stop.
5 SAFETY LEVER Prevents accidental operation of the throttle.
6 HANDLE This handle can be adjusted for maximum comfort
7 HARNESS ASSEMBLY Fully adjustable for maximum comfort
8 PETROL CAP
9 PURGE BULB Push the purge bulb to remove the air from the fuel system.
10 FUEL TANK Contains fuel and fuel filter.
11 AIR CLEANER Contains replaceable filter.
12 CHOKE To help in cold starting.
13 STARTER HANDLE Pull to start the engine.
14 DEBRIS SHIELD Helps protect the operator from debris.
15 CUT-OFF KNIFE Cuts the nylon line to the correct length.
16 NYLON CUTTER HEAD Contains replaceable nylon trimming line.
17 FRONT HANDLE This handle can be adjusted for maximum comfort.
18 GEARBOX For attaching a blade or nylon head to.
19 REAR HANDLE Incorporating throttle trigger, switch, and safety lever.
20 HARNESS FIXING POINT Fixing point to attach the harness.
21 BLADE COVER Blade cover for transportation.
