INSTALLATION OF THE U HANDLE
• Remove the upper cap from the bracket by undoing the 4 screws.
• Install the handle assembly into the seating support Fig 11, upper cap and secure using the 4 screws
Fig 12 making sure that the controls are located on the right and adjust the handle for maximum comfort
before securing.
FITTING OF THE L HANDLE
Fix the loop-handle to the shaft over the rubber block provided 1, Fig 13. Adjust to a comfortable working
position then tighten the fixing screws securely Fig 14.

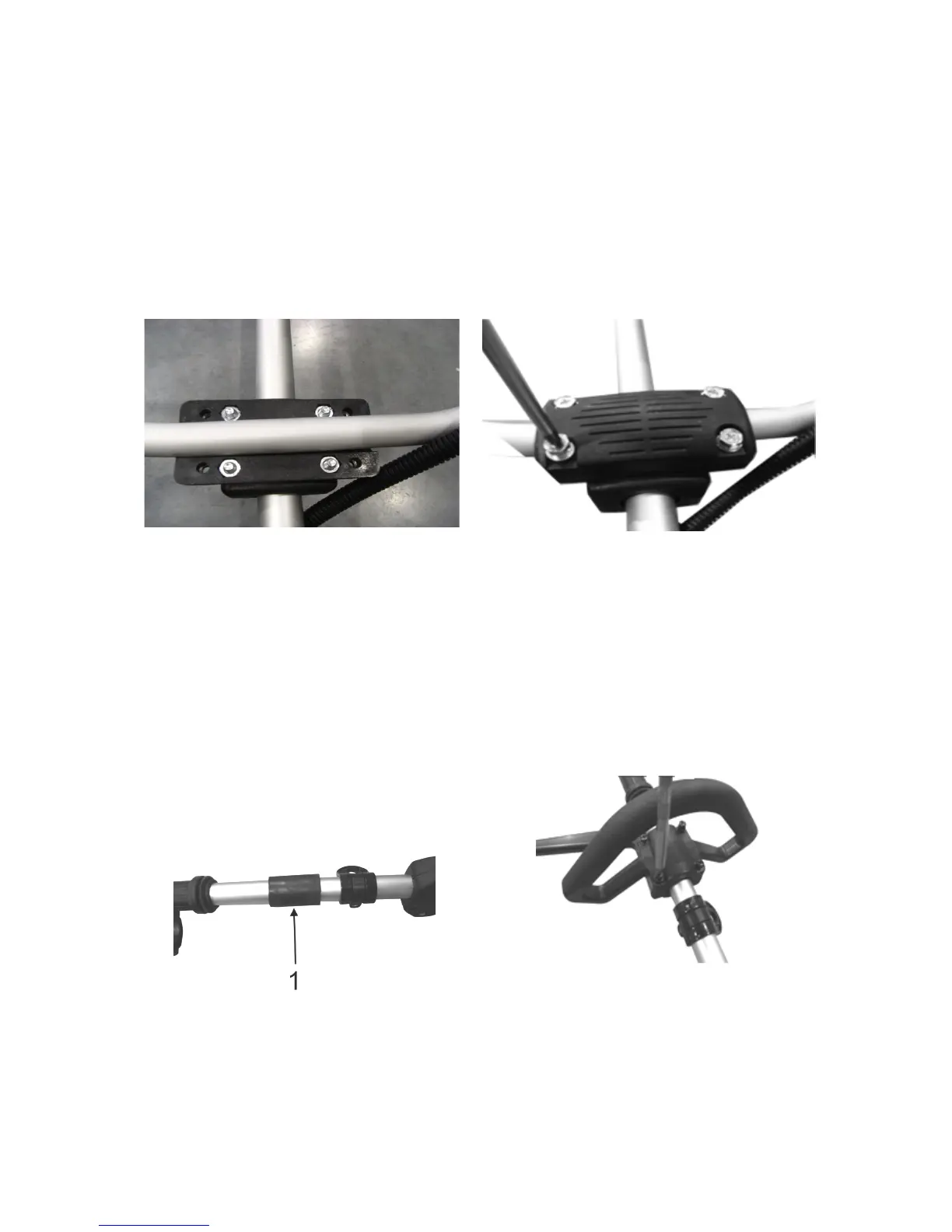

Fig 13, Fig 14,
Fig 11
Fig 12
