435 L/U Brushcutter
13
Original Instructions Version December 12
Installing the U Handle Assembly (U model)
• Remove the Upper Bracket from the assembly by undoing the Lockscrew.
• Install the handle assembly, Upper Bracket to the assembly and secure using the Lockscrew.
• Ensure that the controls are located on the right and adjust the handle for maximum comfort
before securing.

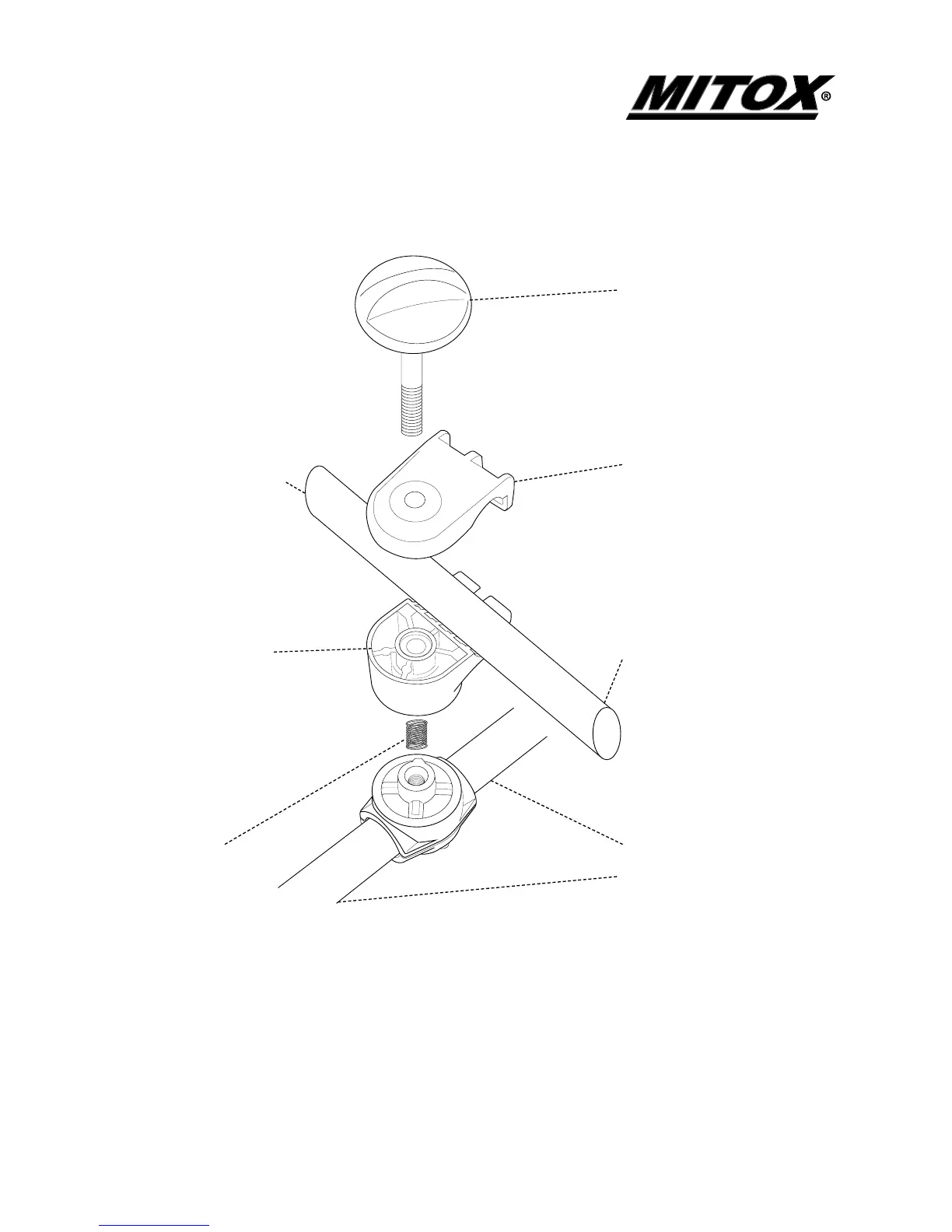

Lockscrew
Upper Bracket
To Left handle
To Right handle
Lower Bracket
Spring
Drive Shaft
To Gear Case
