Chapter 2 Introducing the Web Configurator 17
7 C
lick System Info to display the System Info screen, where you can view the Device’s interface and
system information.
2.2 The Web Configurator Layout
Click Connection Status > System Info to show the following screen.

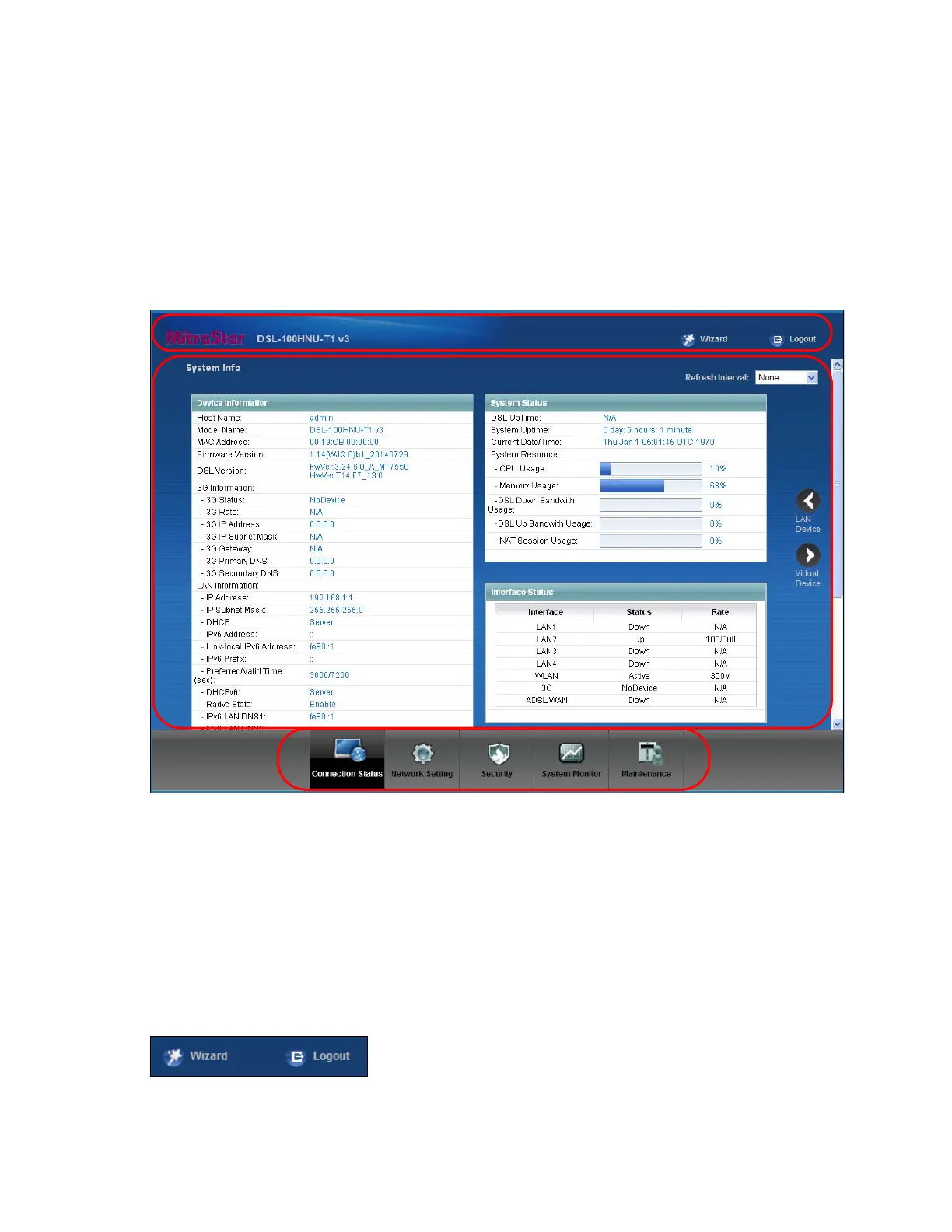

Figure 7 W
eb Configurator Layout
As illustrated above, the main screen is divided into these parts:
• A - ti
tle bar
• B -
main window
• C - navig
ation panel
2.2.1 Title Bar
The title bar shows the Wizard and Logout icons in the upper right corner.
To Next Page
