Chapter 2 Introducing the Web Configurator 18
Click the Wizar
d icon to configure basic initial settings. Click the Logout icon to log out of the web
configurator.
2.2.2 Main Window
The main window displays information and configuration fields. It is discussed in the rest of this
document.
Click LAN De
vice on the System Info screen (a in Figure 7 on page 17) to display the Connection
Status sc
reen. See Chapter 4 on page 24 for more information on the System Info and Connection
Status sc
reens.
Click Virtual De
vice on the System Info screen (b in Figure 7 on page 17) to display a visual graphic
showing the connection status of the Device’s ports
. The connected ports are in color and
disconnected ports are gray.

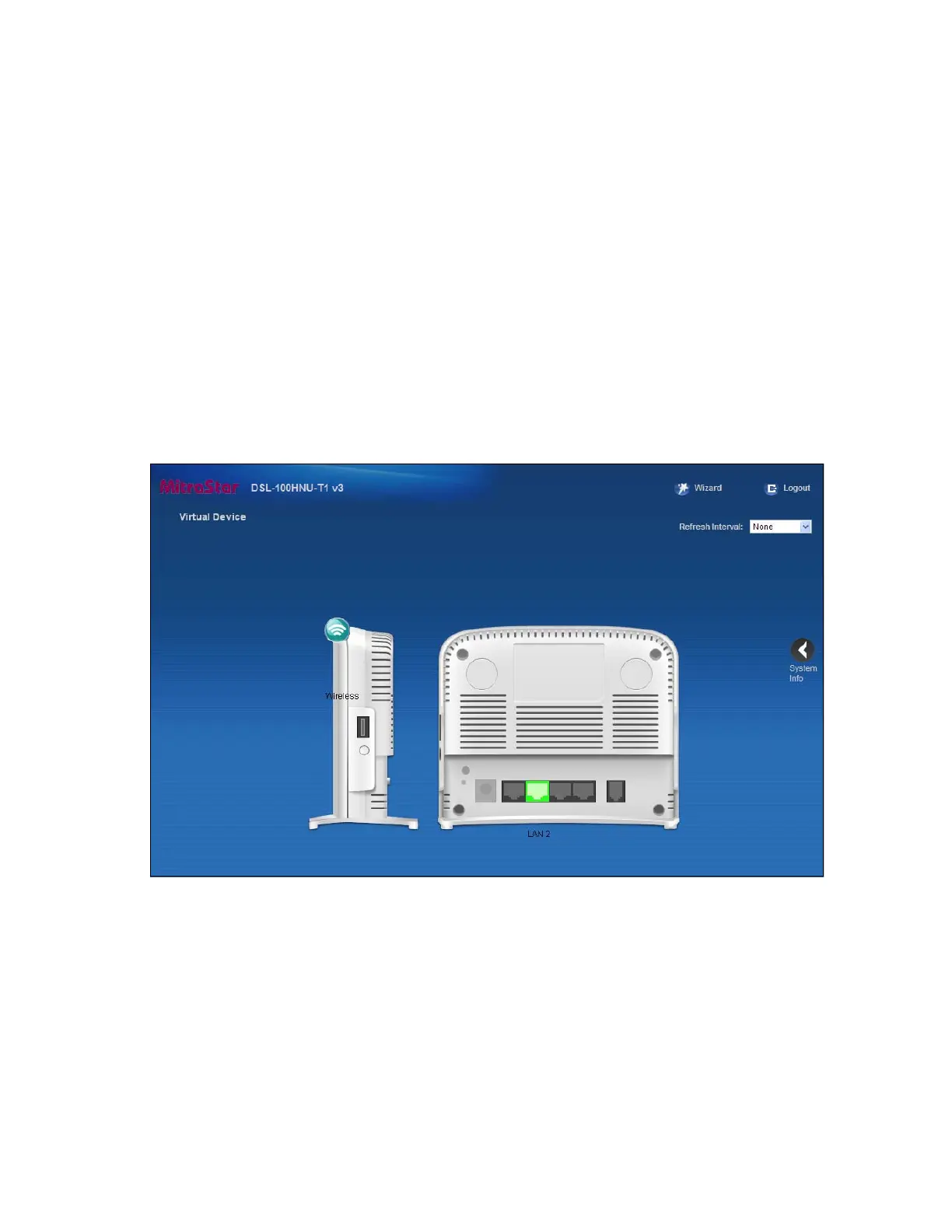

Figure 8
Virtual Device
To Next Page
