The following table describes the fields in this screen.
Table 75 Sys
tem Monitor > Traffic Status > WAN
LABEL DESCRIPTION
Status This shows the number of bytes sent and received through the WAN interface of the
De
vice.
Refresh Interval Specify how often you want the Device to update this screen and click Set Interval to
apply the change. Click Stop to halt updating of the screen.
Connected
Interface
This shows the name of the WAN interface that is currently connected.
Packets Sent
Data This indicates the number of transmitted
packets on this interface.
Error This indicates the number of frames with err
ors transmitted on this interface.
Drop This indicates the number of outgoing pack
ets dropped on this interface.
Packets Received
Data This indicates the number of received packets on this interface.
Error This indicates the number of frames with err
ors received on this interface.
Drop This indicates the number of received pack
ets dropped on this interface.
17.4 The LAN Traffic Status Screen
Click System Monitor > Traffic Status > LAN to open the following screen. You can view the LAN
traffic statistics in this screen.

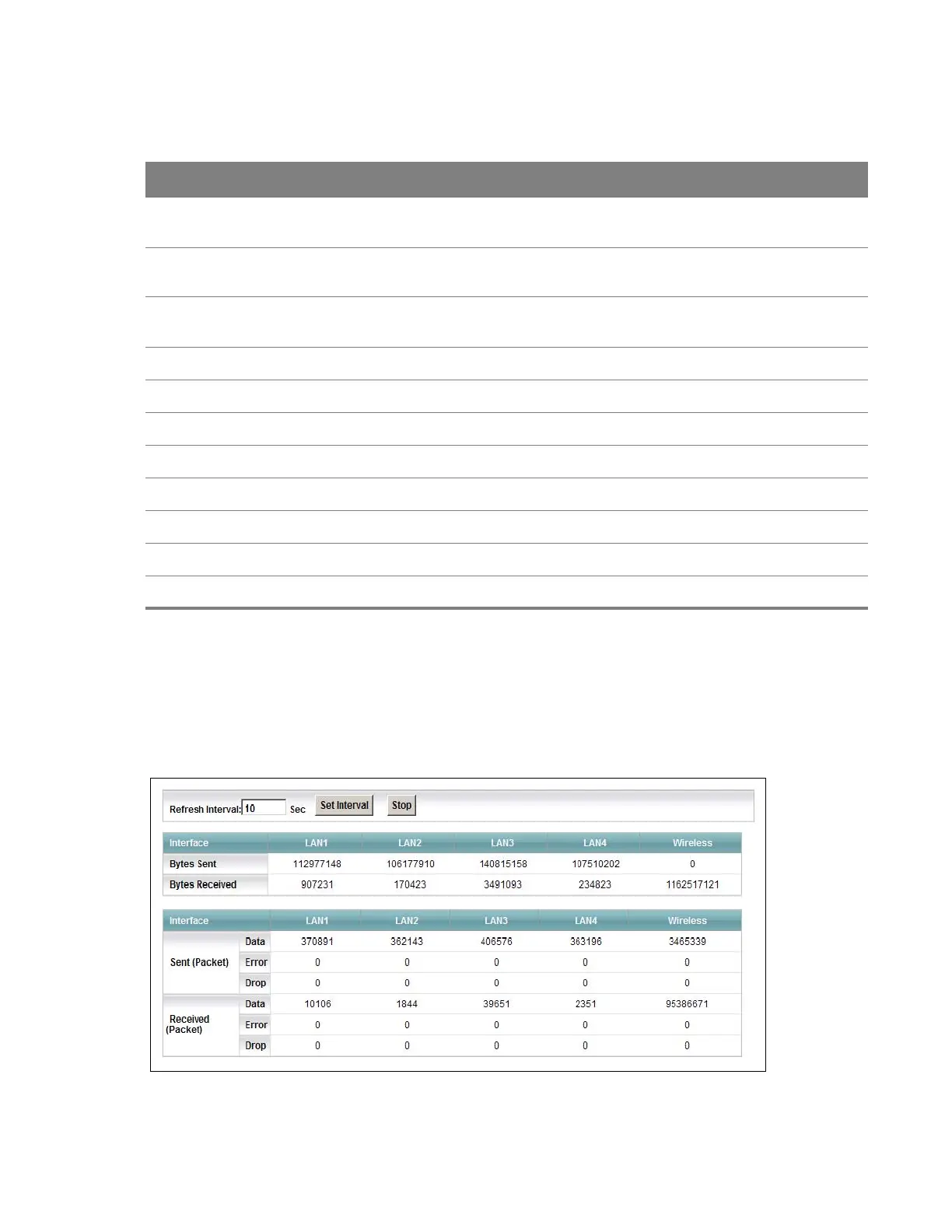

Figure 121 Sys
tem Monitor > Traffic Status > LAN
