Control circuit
INSTALLATION AND WIRING
43
2

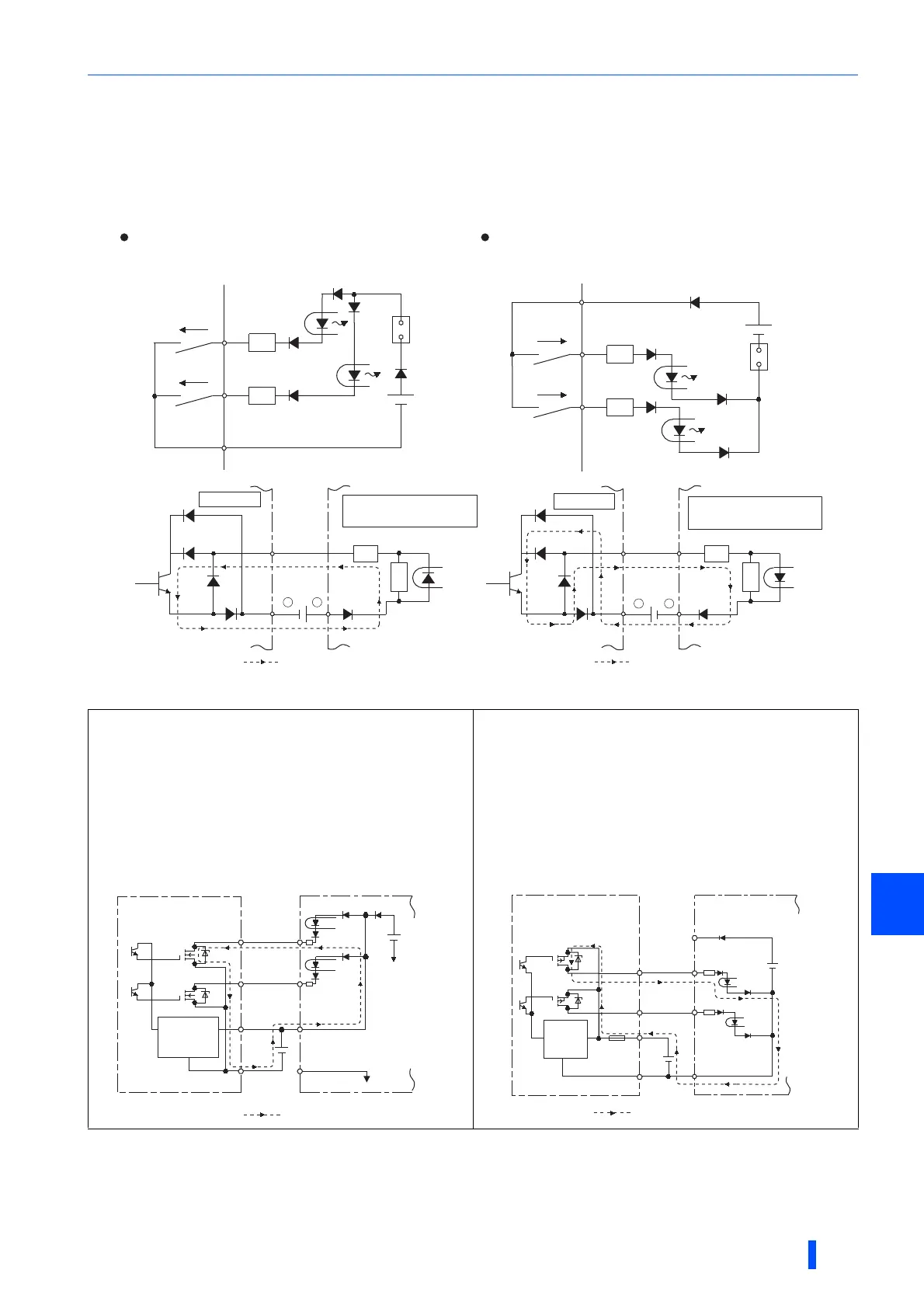

Sink logic and source logic
• In the sink logic, a signal switches ON when a current flows from the corresponding signal input terminal.
Terminal SD is common to the contact input signals. Terminal SE is common to the open collector output signals.
• In the source logic, a signal switches ON when a current flows into the corresponding signal input terminal.
Terminal PC is common to the contact input signals. Terminal SE is common to the open collector output signals.
• When using an external power supply for transistor output
Sink logic
Use terminal PC as a common terminal, and perform
wiring as shown below. (Do not connect terminal SD of the
inverter with the terminal 0 V of the external power supply.
When using terminals PC-SD as a 24 VDC power supply,
do not install an external power supply in parallel with the
inverter. Doing so may cause a malfunction in the inverter
due to undesirable currents.)
Source logic
Use terminal SD as a common terminal, and perform
wiring as shown below. (Do not connect terminal PC of the
inverter with terminal +24 V of the external power supply.
When using terminals PC-SD as a 24 VDC power supply,
do not install an external power supply in parallel with the
inverter. Doing so may cause a malfunction in the inverter
due to undesirable currents.)
Current
PC
STF
R
STR
R
Source logic
Source
connector
Current
SD
STF
R
STR
R
Sink
connector
Sink logic
Current flow concerning the input/output signal
when sink logic is selected
Current flow concerning the input/output signal
when source logic is selected
DC input (source type)
<Example: QX80>
24 VDC
RUN
SE
TB1
TB18
R
Inverter
R
Current flow
+
-
+
-
DC input (sink type)
<Example: QX40>
Inverter
24 VDC
RUN
SE
TB1
TB17
R
R
Current flow
QY40P type transistor
output unit
TB1
TB2
TB17
TB18
24 VDC
SD
PC
STR
STF
Inverter
24 VDC
(SD)
Current flow
Constant
voltage
circuit
QY80 type transistor
output unit
Constant
voltage
circuit
PC
TB1
TB2
TB17
Fuse
TB18
STF
STR
SD
Inverter
24 VDC
(SD)
24 VDC
Current flow

Mitsubishi Electric A800 Specifications

General

Series	A800
Type	Inverter
Overload Capacity	150% for 60 seconds
Operating Temperature	-10°C to +50°C
Output Voltage	0-Input Voltage
Power Rating	0.4 kW to 560 kW
Control Method	V/f control, vector control
Braking Unit	Optional
Communication Protocols	Modbus, CC-Link, Profibus
Protection Features	Overcurrent, Overvoltage, Undervoltage, Ground fault
Storage Temperature	-20°C to +60°C
Humidity	95% RH or less (non-condensing)
Input Voltage	3-phase 200V to 240V, 380V to 480V
Output Frequency	0.1-400 Hz
Frequency Range	0.1-400 Hz
